(1) Open the top cover 1.
(2) Open the feeder unit 2.
(3) Remove the stay-cover-L 3. (Tool No.2)
(4) Remove the E-ring 4. (Tool No.2)
(5) Remove the shaft 5.
(6) Remove the Guide-Damper-L 6 and Spring 7.
(7) Remove the screw (golden) 8 and then the plate-lower-L 9.
(8) Remove the screw (golden) 0 to detach the left side cover A.(Tool No.1)

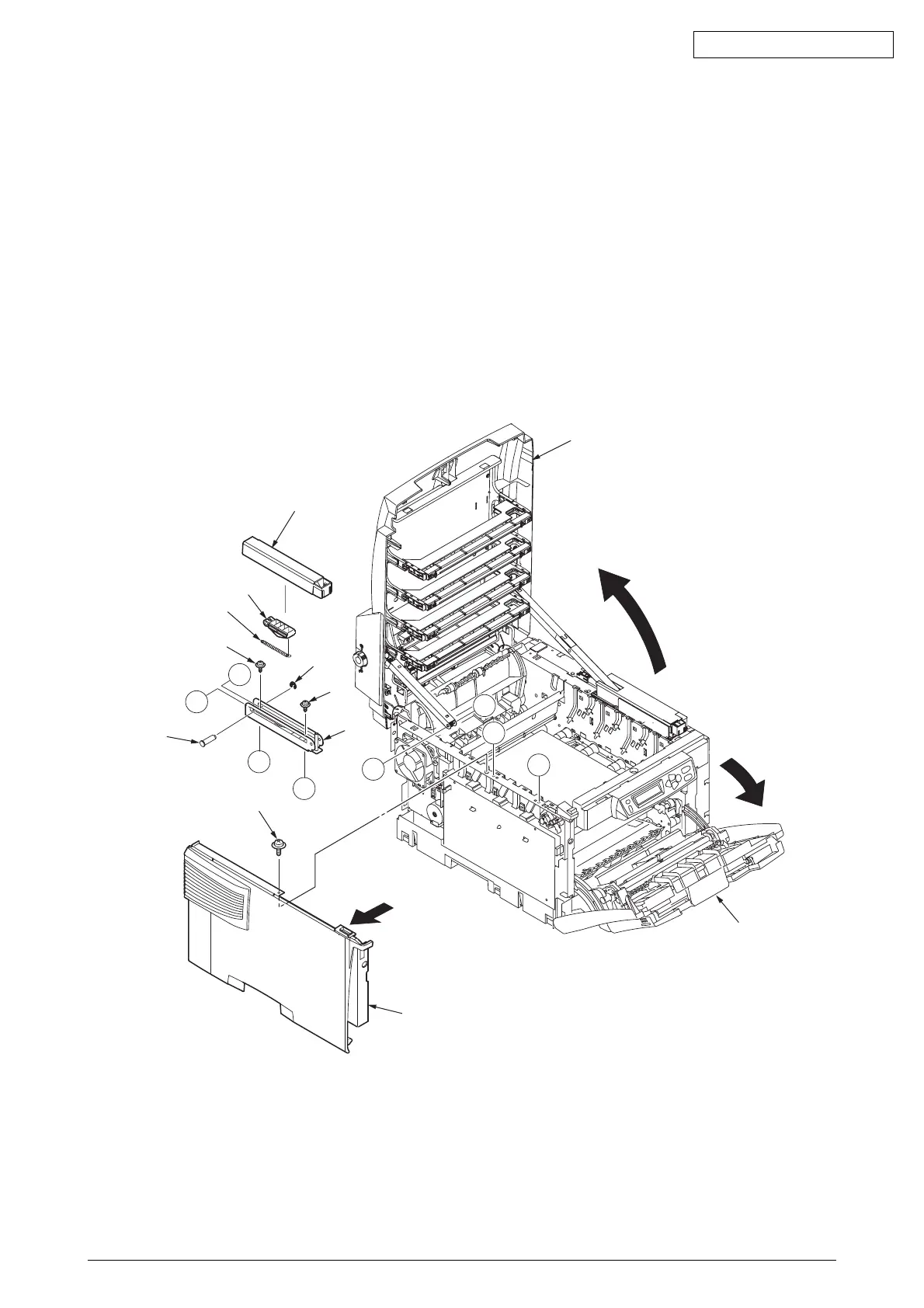

Figure 4-2-1-2 Left Side Cover
