Oki C5250 Service Manual

Oki Data CONFIDENTIAL
42615101TH Rev.8 240 /

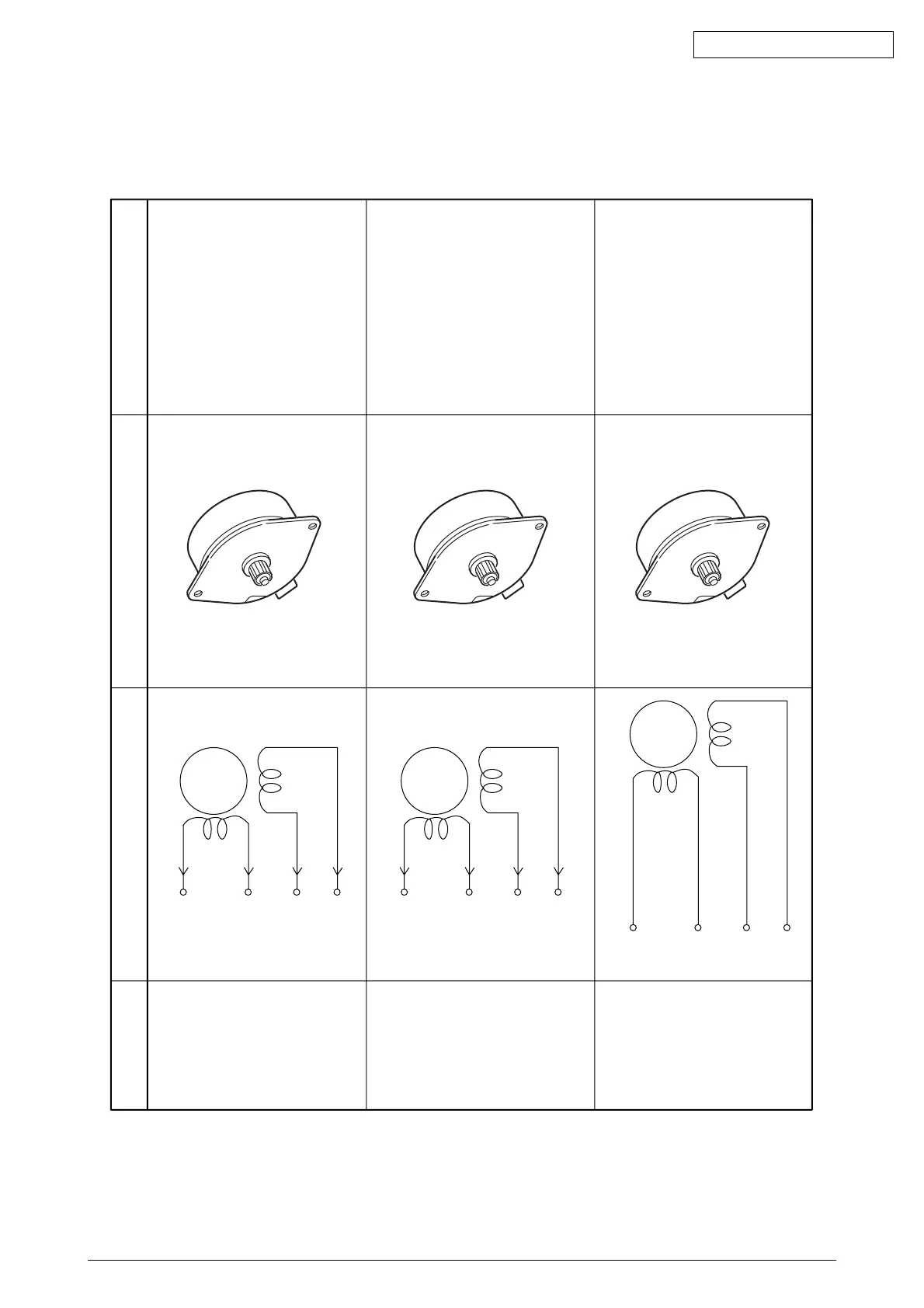

Unit Circuit Diagram Illustration Resistance
Between pins 1 and 2: 3.4
Ω
Between pins 3 and 4: 3.4
Ω
or
Between pins 1 and 2: 5
Ω
Between pins 3 and 4: 5
Ω
Between pins 1 and 2: 3.4
Ω
Between pins 3 and 4: 3.4
Ω
or
Between pins 1 and 2: 5
Ω
Between pins 3 and 4: 5
Ω
Between pins 1 and 2: 3.4
Ω
Between pins 3 and 4: 3.4
Ω
or
Between pins 1 and 2: 5
Ω
Between pins 3 and 4: 5
Ω
Main Motor (C)
Main Motor (K)
Fuser Motor
M
1
2
3
4
M
1
2
3
4
M
1
2
3
4
