Oki C5250 Service Manual

Oki Data CONFIDENTIAL
42615101TH Rev.8 242 /
1
7
2
3
5
6
8
9
11
12
1
7
6
12

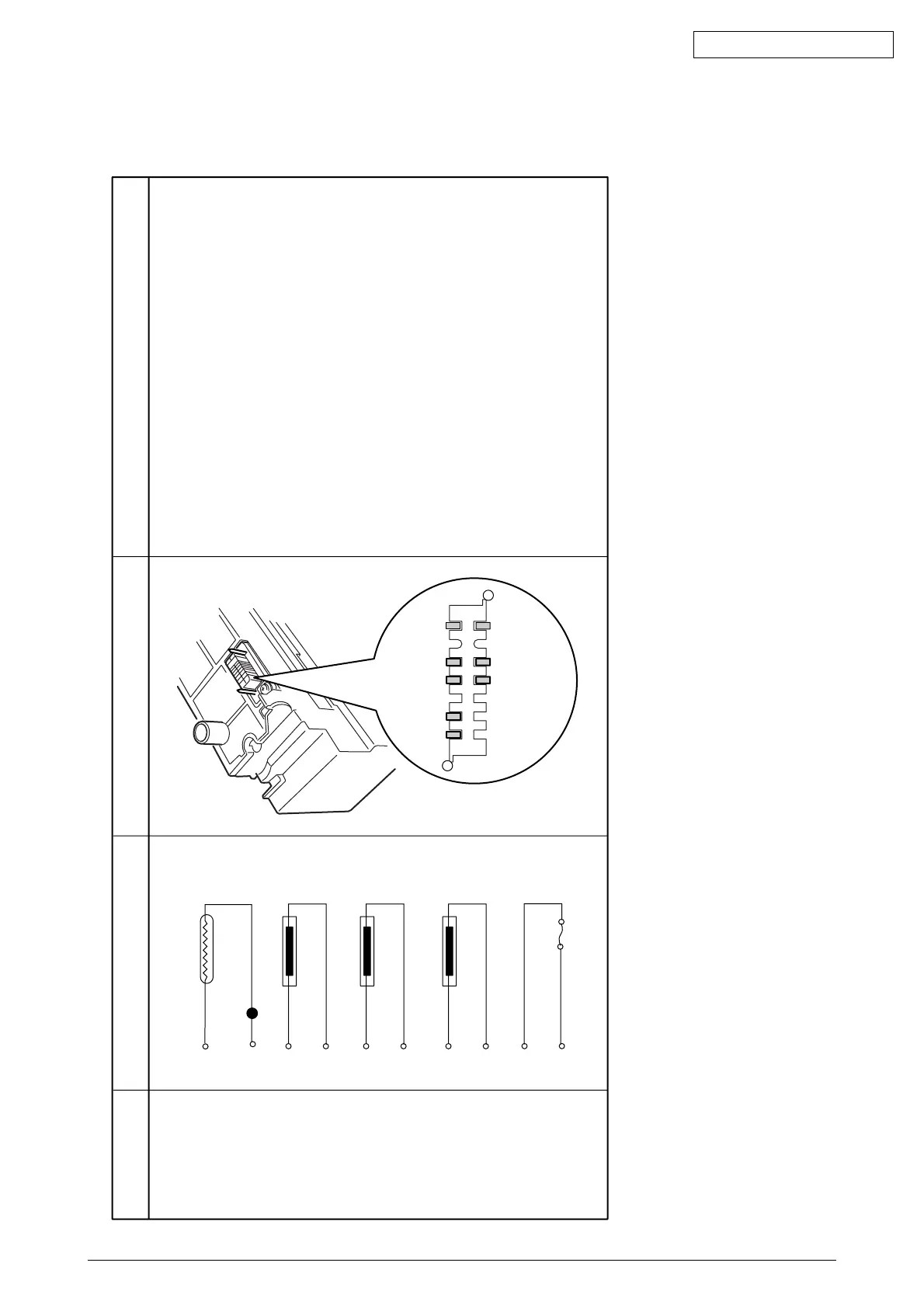

Unit Circuit Diagram Illustration Resistance
1. Upper Roller Side
Between pins “1” and “7” : About 10
Ω
Between pins “2” and “3” : About 590k~5338k
Ω
(0~43˚C)
Between pins “5” and “6” : About 190k~981k
Ω
(0~43˚C)
Between pins “8” and “9” : About 23.1k~162k
Ω
(0~43˚C)
Between pins “11” and “12” : Open
Fuser Unit
Upper roller Heater
Thermostat
Upper thermistor
Lower thermistor
Frame thermistor
Fuse
Pins
