Oki Data CONFIDENTIAL
42615101TH Rev.8 261 /

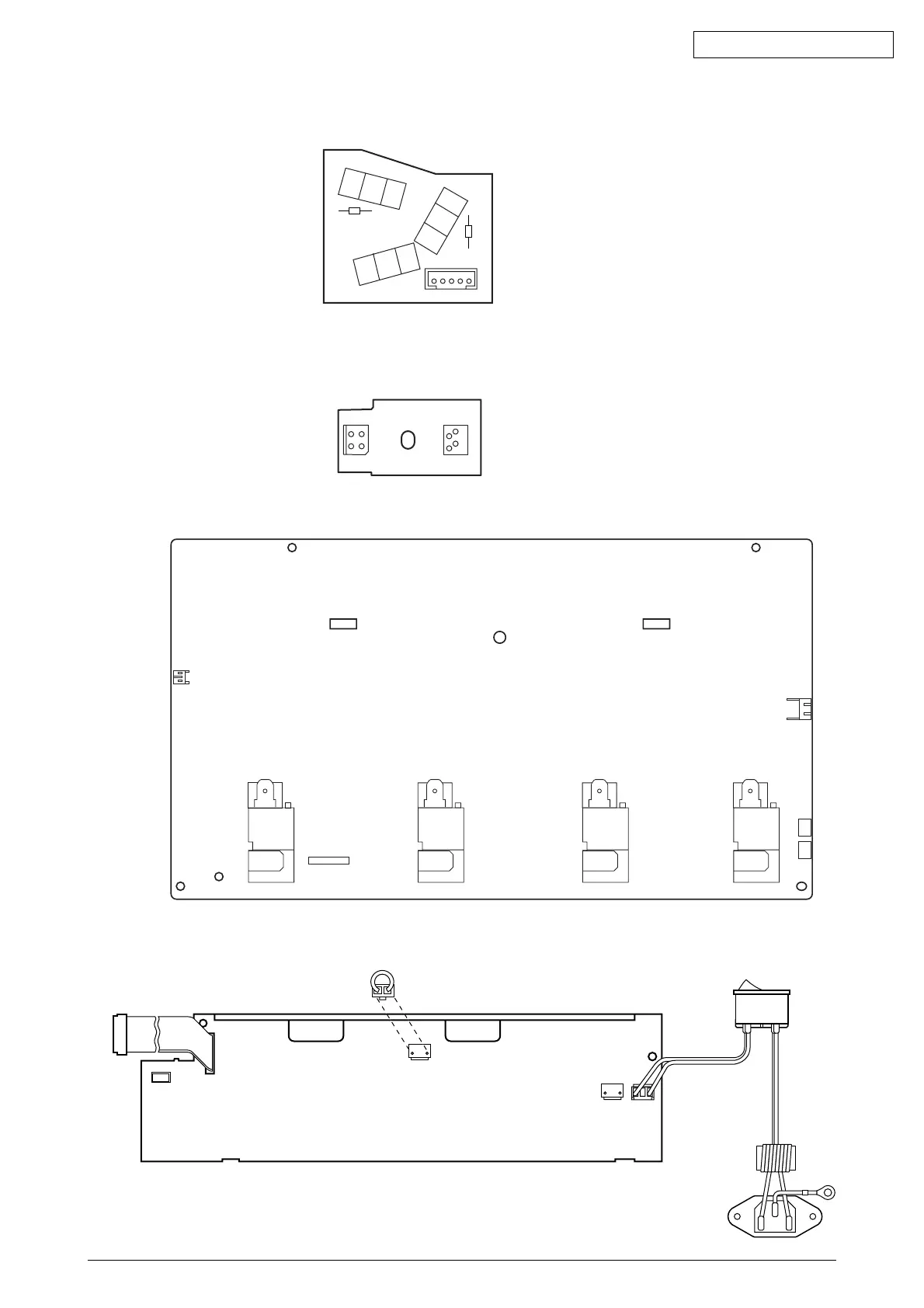

(8) Entrance Sensor PCB (RSF PCB)
WR
IN2
IN1
CN
R1
R2
51
(10) High-voltage power supply PCB
CN4
CN2
CN5
CN3
CN1
TR-K TR-MTR-Y TR-C
(9) Color Sensor PCB (PRC PCB)
SNS
CN
C
E
A
K
(11) Low-voltage power supply PCB
CN4
CN6
CN5
Short plug for CN5
CN2
I/F connector
of the fuser unit
Note) CN5: Connector to switch over the setting of AC input voltage
100V series: A short plug is installed. / 230V series: A short plug is not installed.
CN3
Low Voltage Power Unit FAN
PRN PCB POWER
connector
To Next Page
