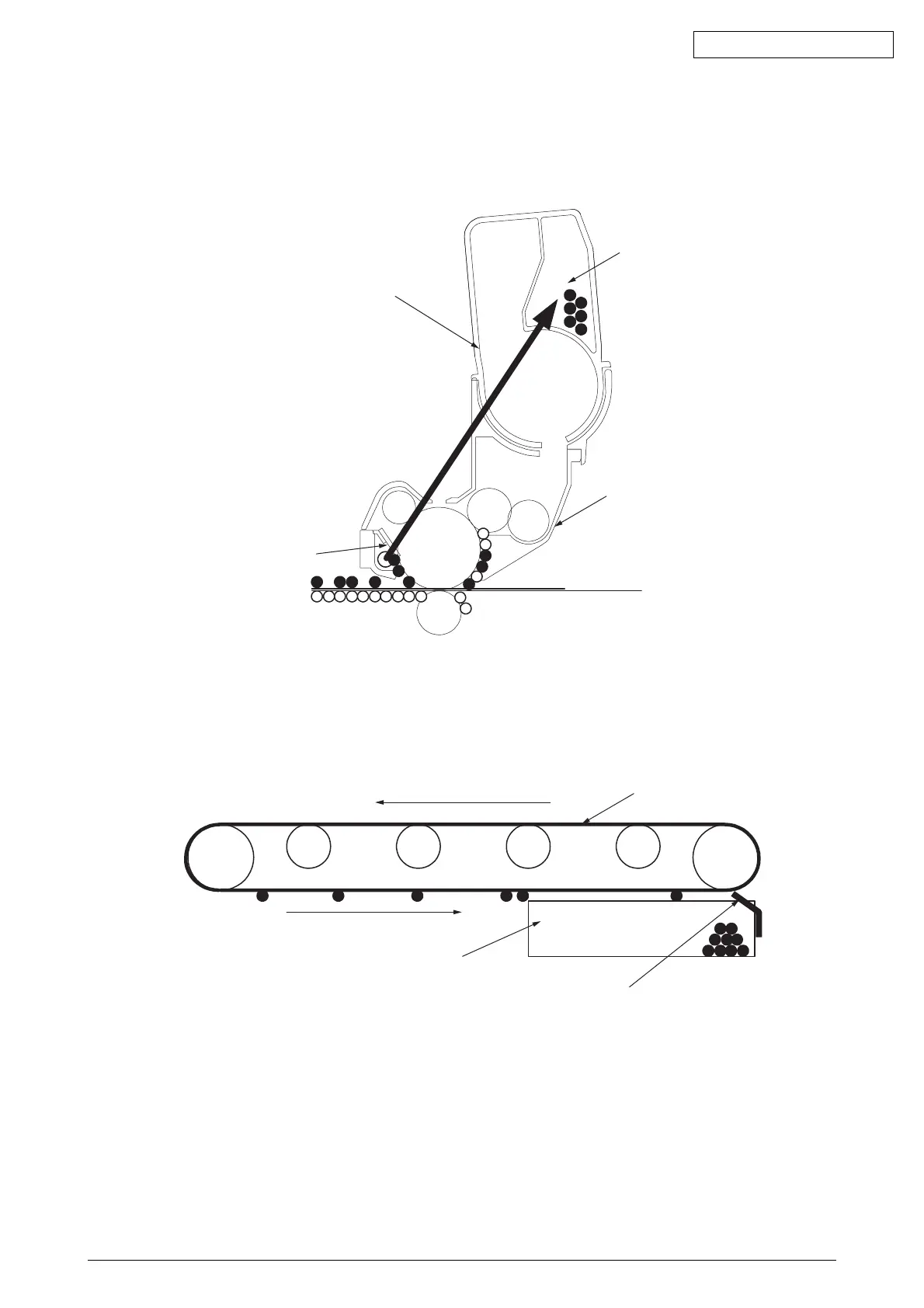

(7) OPC Drum Cleaning
Unfused, residual toner on the drum is scraped off with a drum cleaning blade, and collected
in the waste toner area of a toner cartridge.
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
-
-
Toner Cartridge
Drum Cleaning Blade
Image Drum (ID) Unit
Waste Toner Area
(8) Transfer Belt Cleaning
Residual toner on a transfer belt is scraped off with a belt cleaning blade, and collected in the
waste toner box of a transfer belt unit.
Transfer Belt
Waste Toner Box
Belt Cleaning Blade
To Next Page
