4.2.6 Duplex Unit

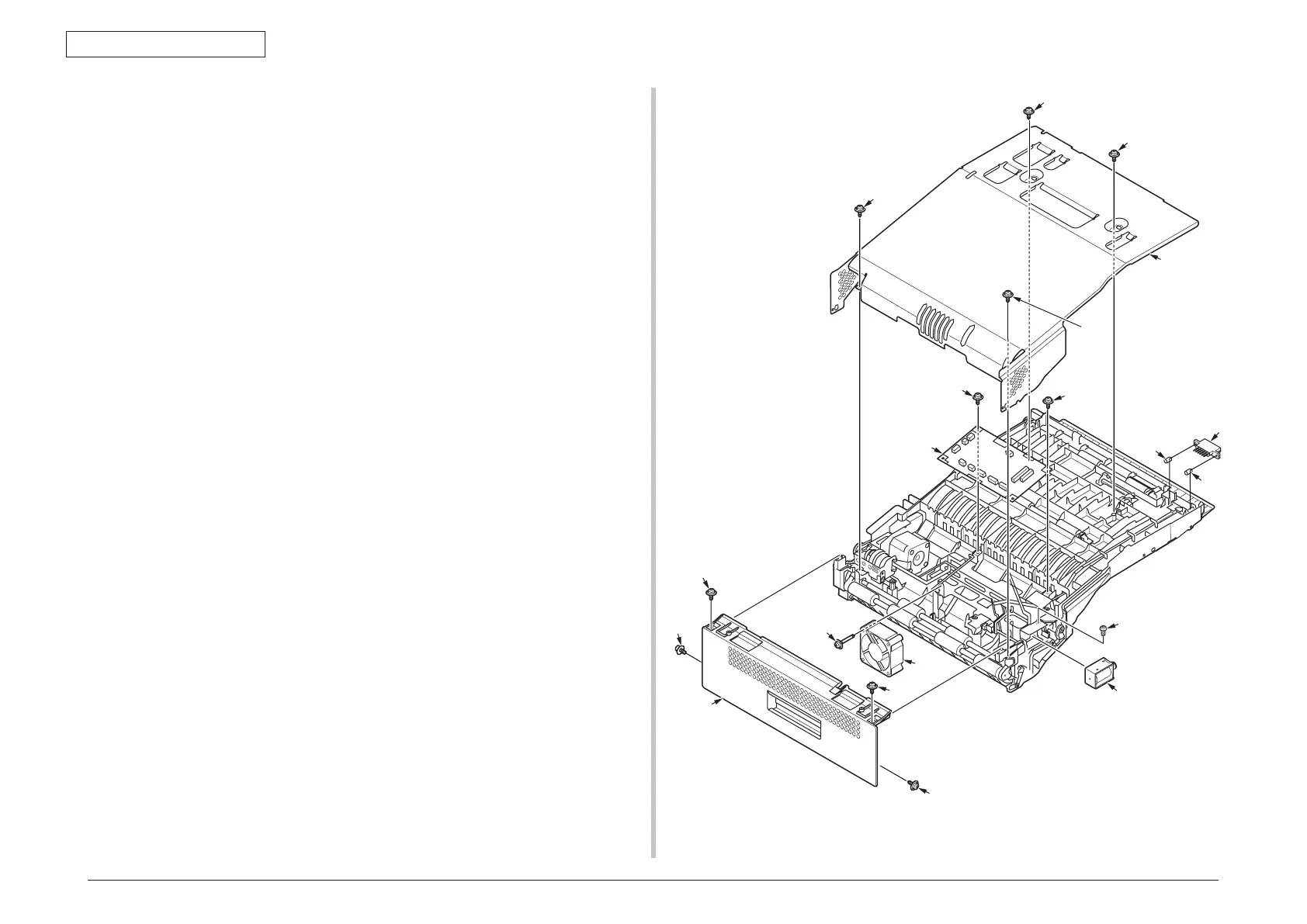

(1) Slide out the Duplex unit from the Main body of MFP. (Refer to section 4.2.5)
(2) Turn over the Duplex unit.
(3) Remove four screws(black)
①
to detach the cover
②
, and remove four
screws(black)
③
to detach the plate
④
.
(4) Disconnect all connectors from the board
⑤
, and remove two screws(silver)
⑥
to
detach the board
⑤
.
(5) Remove a screw(silver)
⑦
to detach the solenoid
⑧
.
(6) Remove a screw(silver)
⑨
to detach the FAN
⑩
.
(7) Remove two screws(silver)
⑪
to detach the connector
⑪
.
②
③
③
③
④
⑤
⑥
⑥
⑦
⑧
⑨
⑩
⑪
⑪
①
①
