Oki ES8473 - Motor DC-FU (Fuser Motor); Plate Cover FU

45850101TH Rev.1
4-52
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS

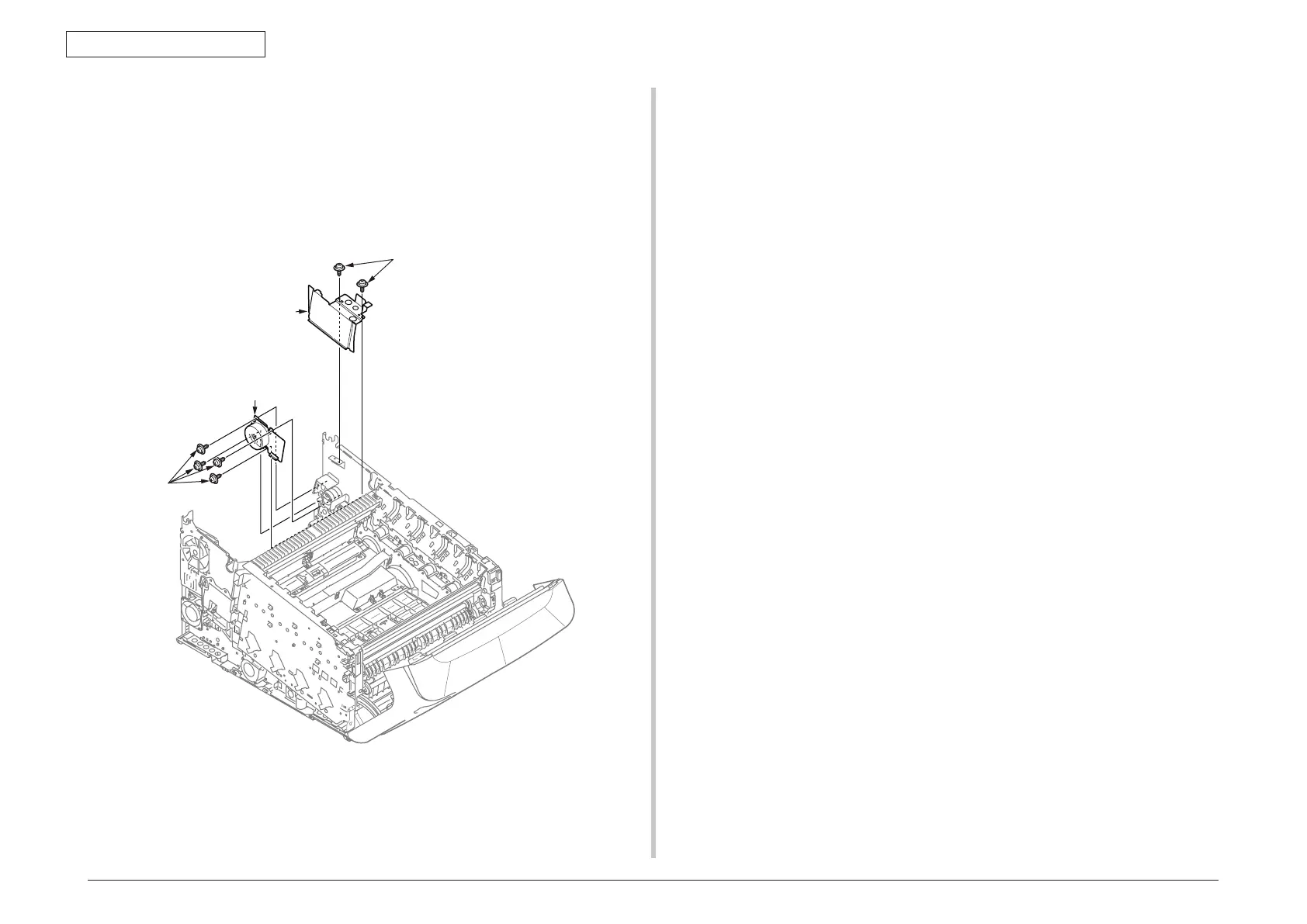

4.2.27 Motor DC-FU (fuser motor) / Plate cover FU
(1) Detach the guide Assy.-eject. (Refer to section 4.2.14)
(2) Remove the two screws (silver)
①
and the plate cover FU
②
.
(3) Remove the four screws (silver/8mm)
③
and the motor DC-FU
④
.
②
③
④
①
