1. CONFIGURATION
1.5.2 Network Interface Specification
1.5.2.1 Outline of Network Interface
Refer to the contents of 1.4 Specifications.

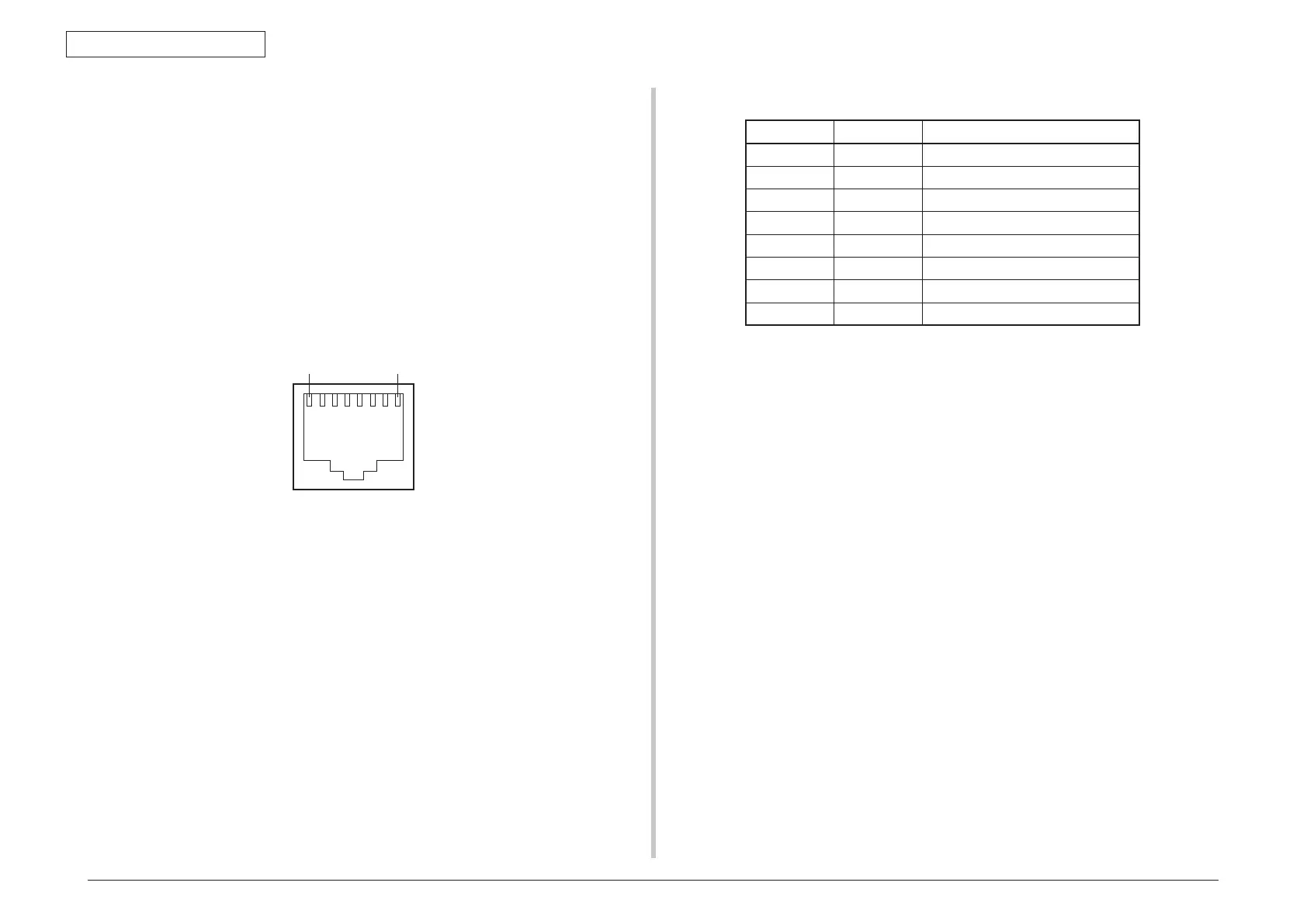

1.5.2.2 Network Interface Connector and Cable
(1) Connector
1000Base-T/100 BASE-TX/10 BASE-T
(automatic switch, no simultaneous use)
18
1.5.2.3 Network Interface Signal
Pin No. Signal name Functions
1 TRD+(0) Transmit and receive Data 0 (+)
2 TRD-(0) Transmit and receive Data 0 (-)
3 TRD+(1) Transmit and receive Data 1 (+)
4 TRD+(2) Transmit and receive Data 2 (+)
5 TRD-(2) Transmit and receive Data 2 (-)
6 TRD-(1) Transmit and receive Data 1 (-)
7 TRD+(3) Transmit and receive Data 3 (+)
8 TRD-(3) Transmit and receive Data 3 (-)
Connector pin arrangement
(2) Cable
Unshielded twist pair cable with RJ-45 connector
(Category 5e or higher-order is recommended.)
