4. REPLACEMENT OF PARTS

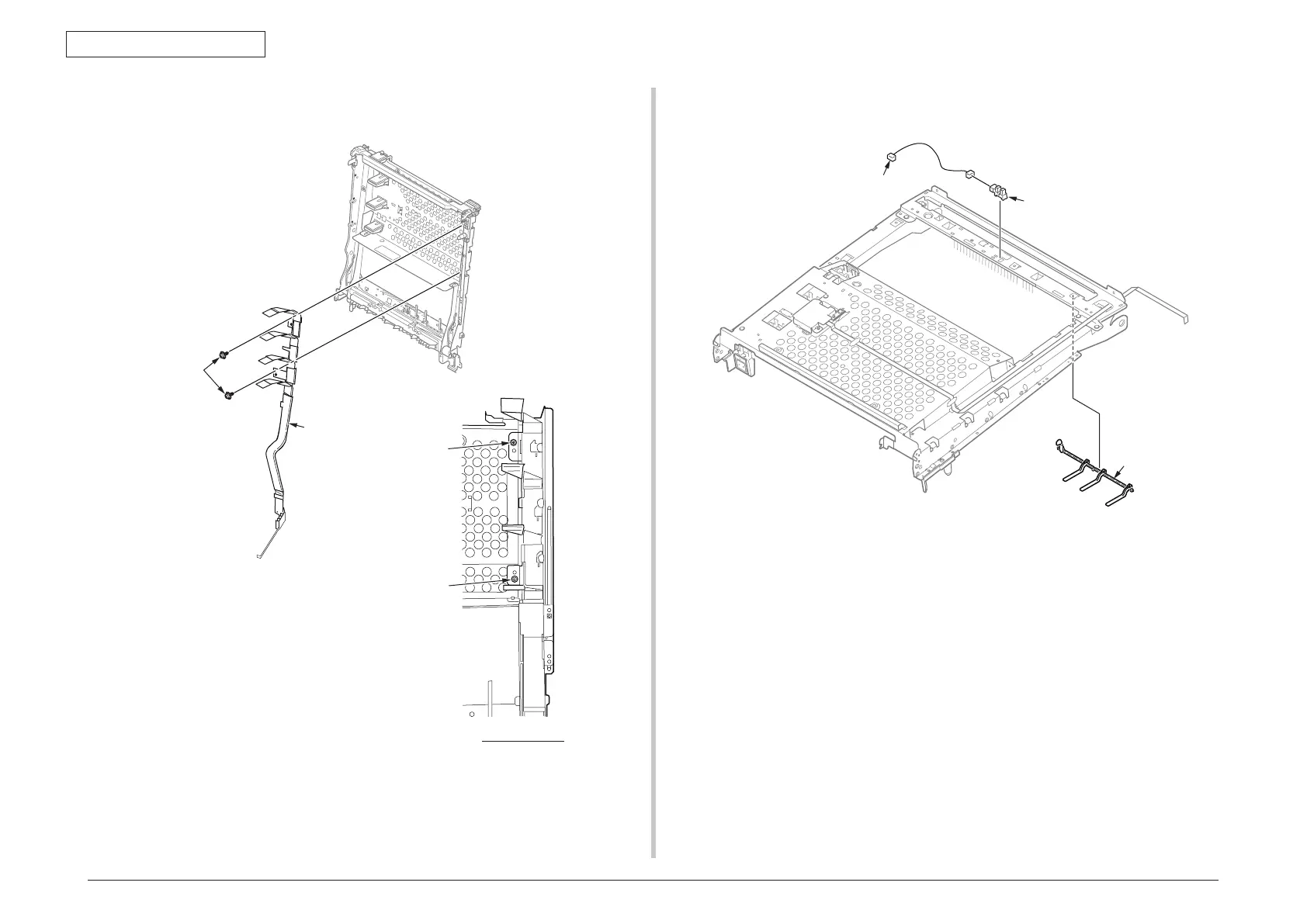

Detail drawing
⑧
⑦
⑦
⑦
(6) Remove the two screws (silver)
⑦
and the Cable-Assy-Head
⑧
. (7) Remove a Lever-SNS
⑨
, and remove a Photo Sensor
⑩
and a cable
⑪
⑪
⑨
⑩
