4. REPLACEMENT OF PARTS
③

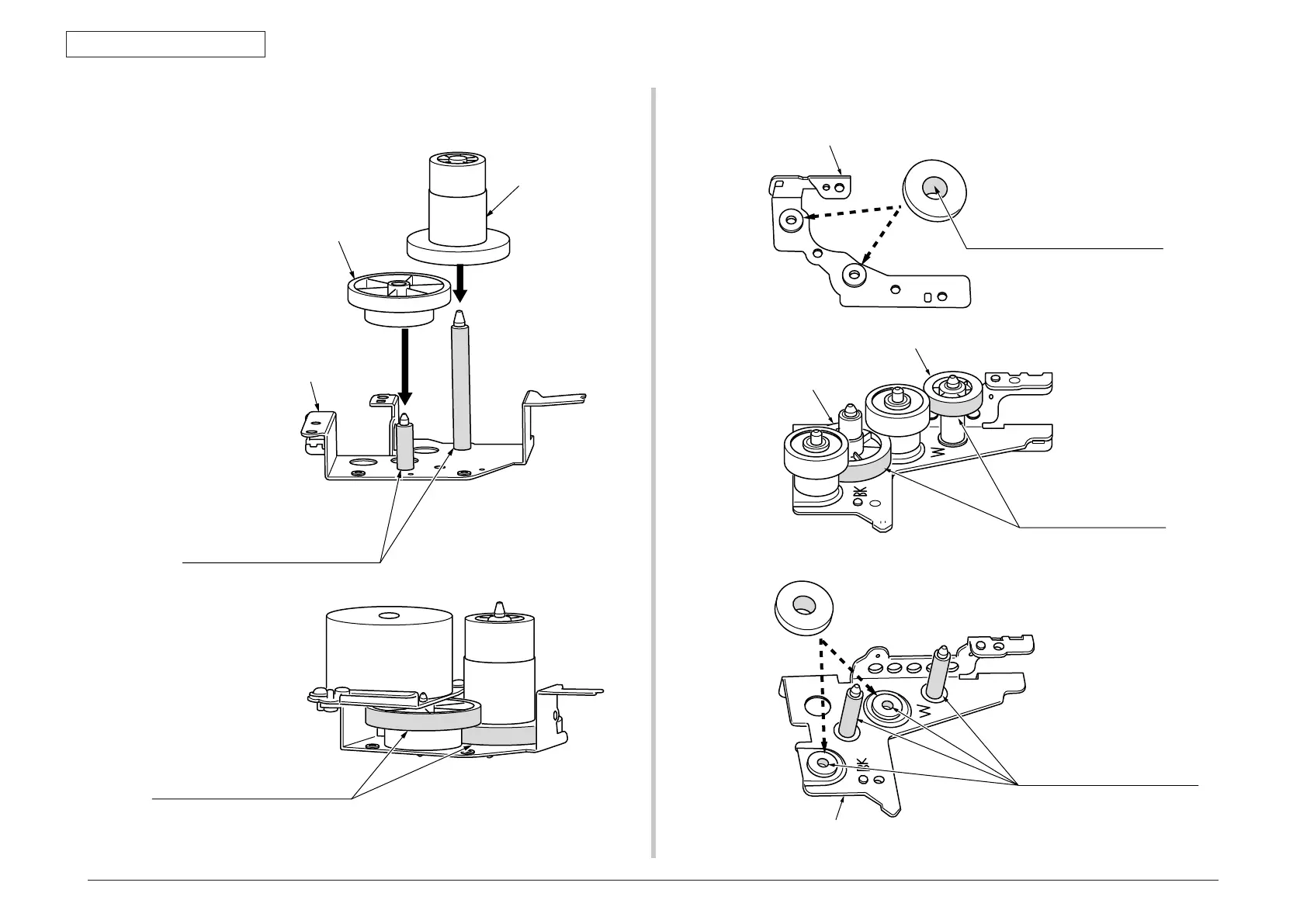

Gear Assy.-Hopping
Gear-Hopping-A
Gear-Hopping-B
Plate-Hopping-Caulking
Apply a normal amount of
MOLYKOTE (EM-30LP) (2 positions)
Class C
Apply a normal amount of MOLY KOTE
(EM-30LP) to the hatched portions.
Class C
④
Gear Assy.-MPT
Apply a normal amount of
MOLYKOTE (EM-30LP) (2 positions).
Class C
Apply a normal amount of
MOLYKOTE (EM-30LP) to
the hatched portions.
Class C
Apply a normal amount of
MOLYKOTE (EM-30L) (4 portions).
Class C
Plate-MPT-B
Gear-MPT-A
Plate-MPT-Caulking
Gear-MPT-B
Bush-FU
Bush-FU
