Oki ES8473 - Page 224

45850101TH Rev.1
4-74
Oki Data CONFIDENTIAL

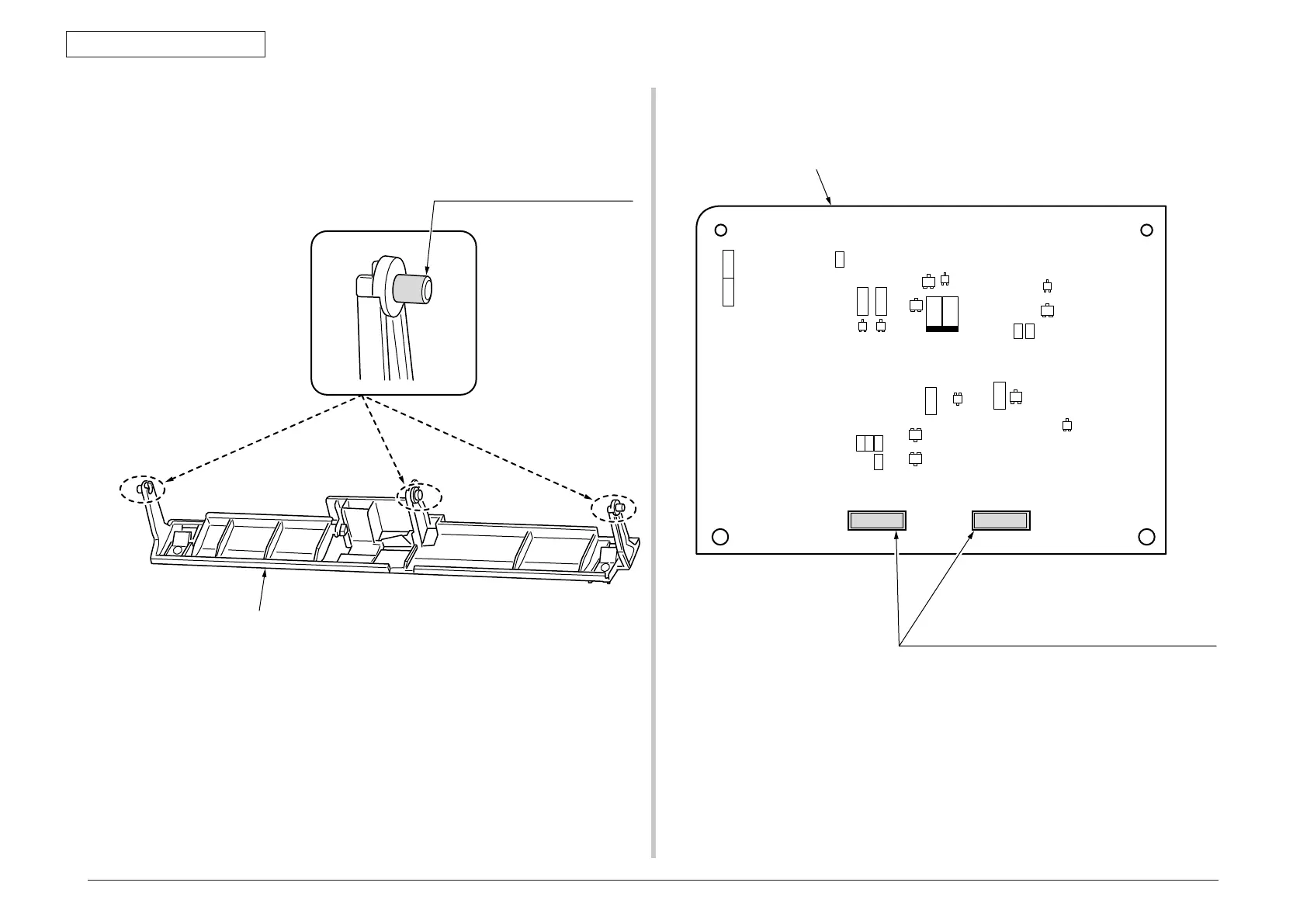

4. REPLACEMENT OF PARTS
⑩
Sensor-Assy-Regist
Frame-Shutter
Apply a normal amount of
MOLYKOTE (EM+30LP) to the posts
Class C (3 positions)
⑪
Frame Assy
BFUSE
D502
O505
O503
O516
D514 D513
R507
O502
R509
R508
O515
R513 R514
R511
R803 R801
R503 R504
R501 R502
O501
D501
D505
D506
O504
R802
D504
BFUCUT
After polish the terminals to luster with BEMCOT M-3,
Te tra (C-9300) is soaked into cotton swab a little
(Class S), and it coated on terminals. (2 positions)
OR-Board Assy. -P6Z (Soldering side)
