4. REPLACEMENT OF PARTS
4.3.2 2bin section
①

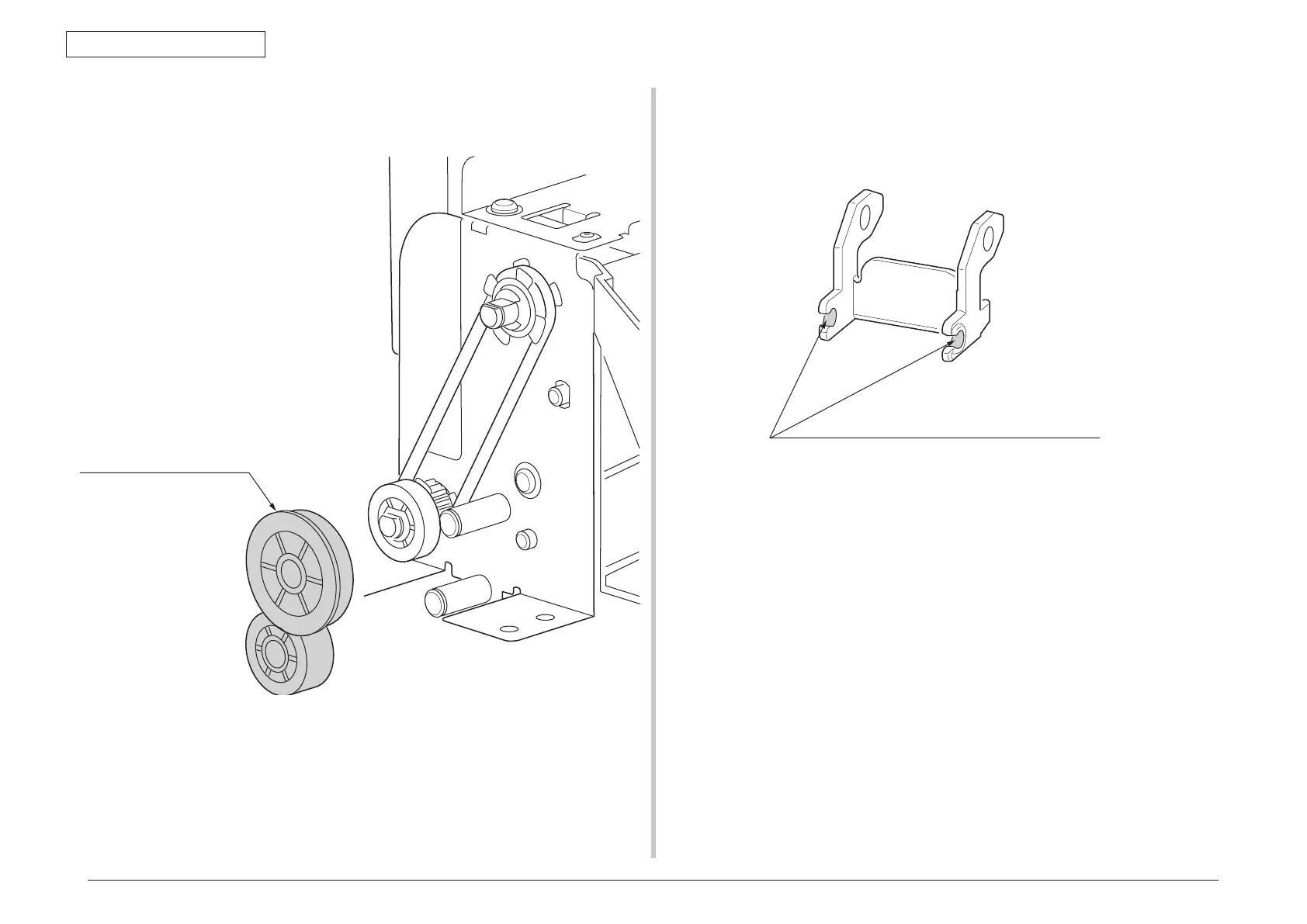

Guide Assy.-2Bin
HARVES MDF-1207
Apply HARVES all round.
Gear-Connect
Gear-Idle-Eixt(Z28
)
Apply HARVES MDF-1207 to
the gray-area of the Pinch-Roller-Bracke_
8 pieces
②
Guide Assy.-2Bin
