Oki ES8473 - Page 267

Oki Data CONFIDENTIAL
45850101TH Rev.1
6-16

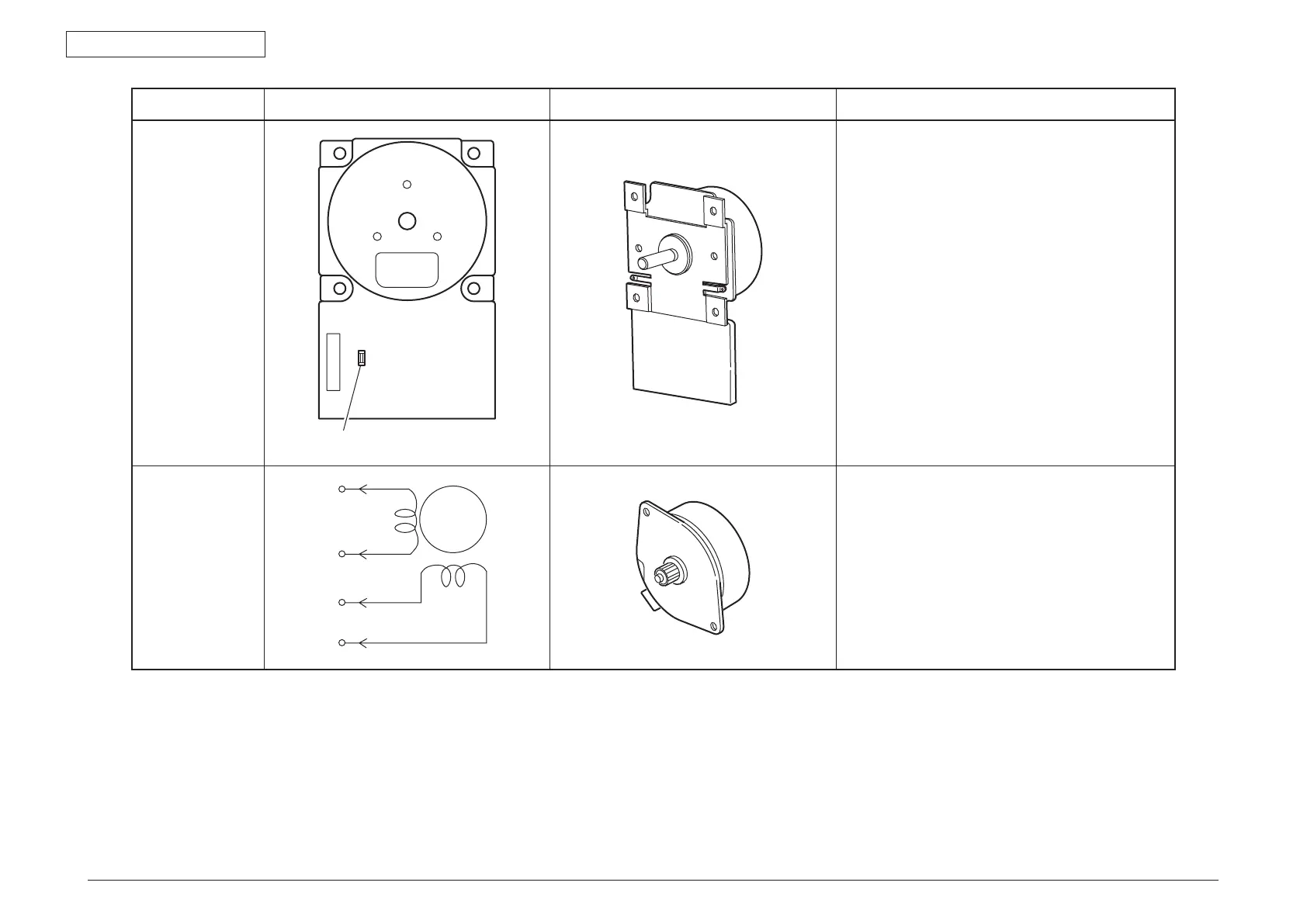

6. CONNECTION DIAGRAMS
Unit Electrical circuit diagram, connection Part outside view Resistance value
Fuser motor
IP1
Across both ends of IP1 : 1
Ω
or less
Hopping motor
M
1
2
3
4
Between pin-1 and pin-2 : 3.4
Ω
Between pin-3 and pin-4 : 3.4
Ω
