2. DISASSEMBLY AND REPLACEMENT
2.1 Removal and Installation of Options
Important:
• Beforeinstallingorremovingoptions,turnthemainpowerswitchoffanddisconnectthe
2 power cable from the outlet.
2.1.1 MJ-1038(Innernisher)
(1) Press the [Power] button on the control panel to shut it down.
(2) Turnthemainpowerswitchoftheequipmentoff.
(3) Disconnect the power cable.
(4) Open the scanner.

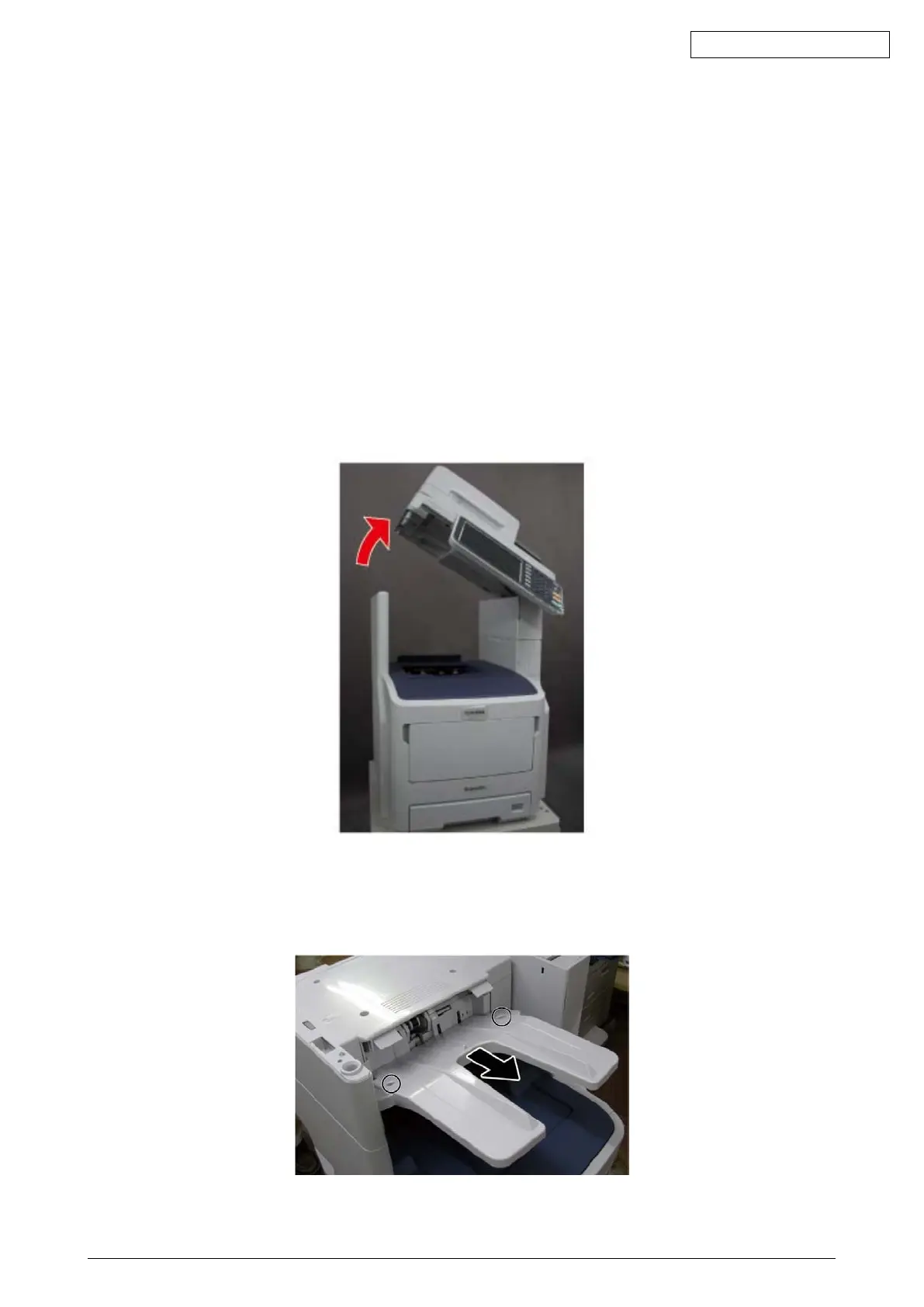

Fig. 2-1
(5) Remove 2 screws and take off the stacker tray.
Fig. 2-2
