179
Maintenance
Media Rollers
The accumulation of paper dust and other
debris on the medi
a rollers can cause
media-feeding problems.

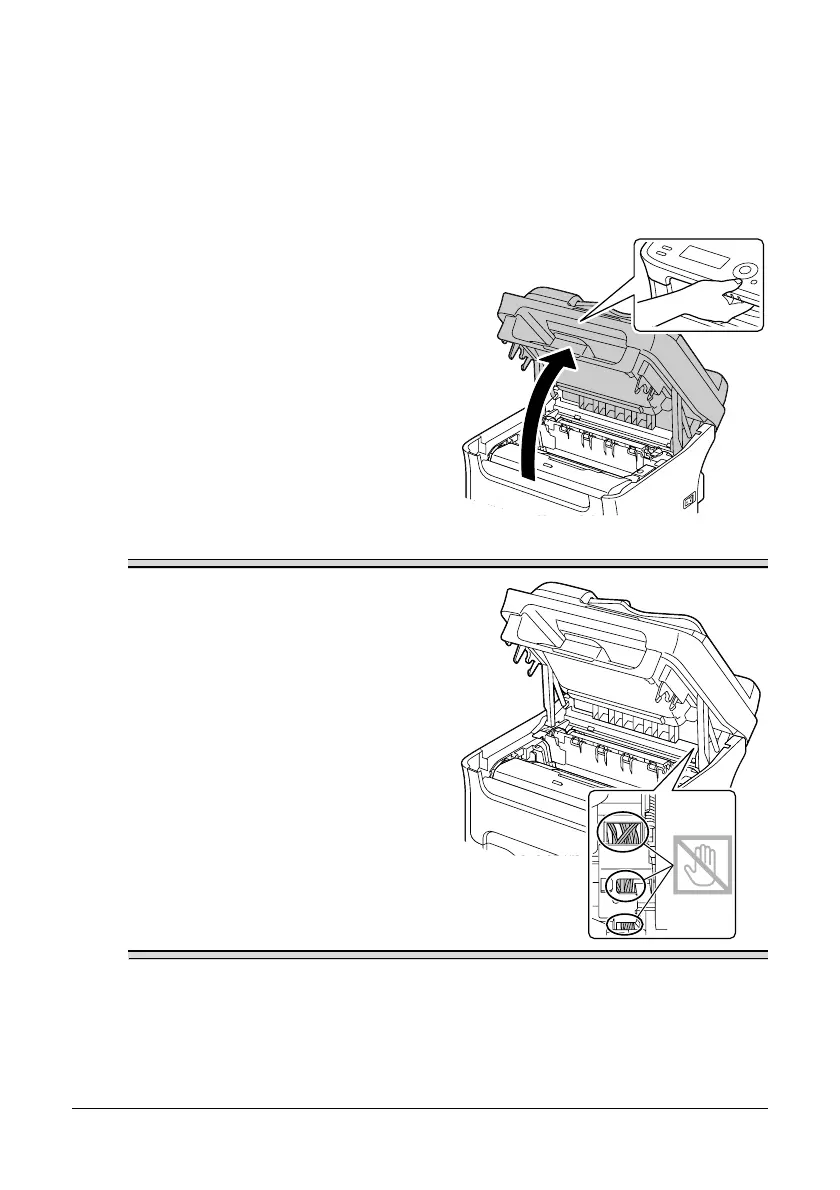

Cleaning the Media Feed Roller
1
Open the
scanner unit.
"
If there is paper in the output
tray
, remove it, and then fold
up the output tray before
opening the scanner unit.
Note
Do not touch the wire
s and flat cable
shown in the illustration.
