14. Gently lower the scanner on to its supports.
I
MAGE
DRUM
REPLACEMENT
There is no need to switch the MFP off when changing image drum(s).

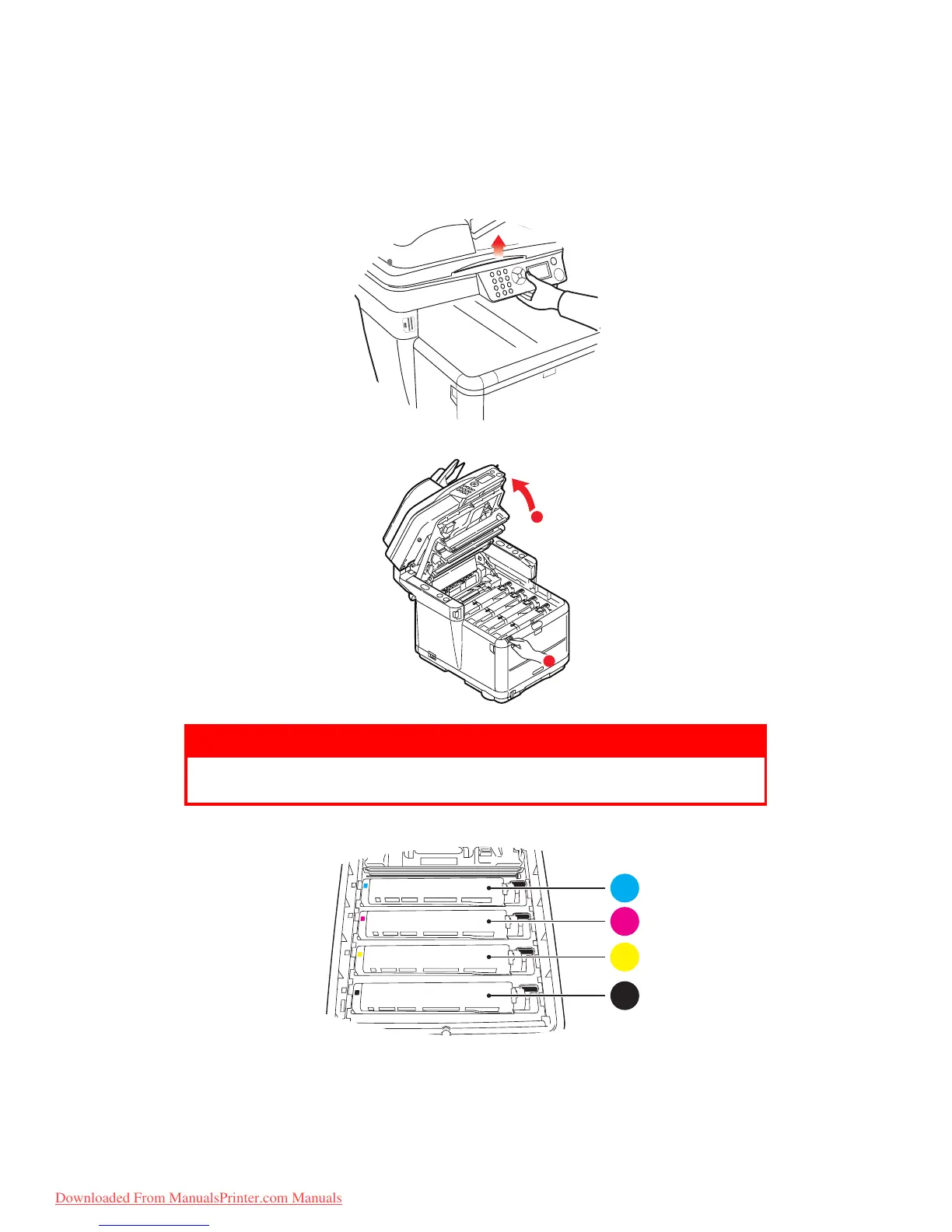

1. Lift the scanner.
2. Press the cover release (a) and open the top cover of the printer (b) fully.
3. Note the positions of the 4 cartridges/image drums.
WARNING!
If the printer has been powered on, the fuser will be hot. This area
is clearly labelled. Do not touch.
1. Cyan cartridge 3. Yellow cartridge
2. Magenta cartridge 4. Black cartridge
