Maintenance > 104

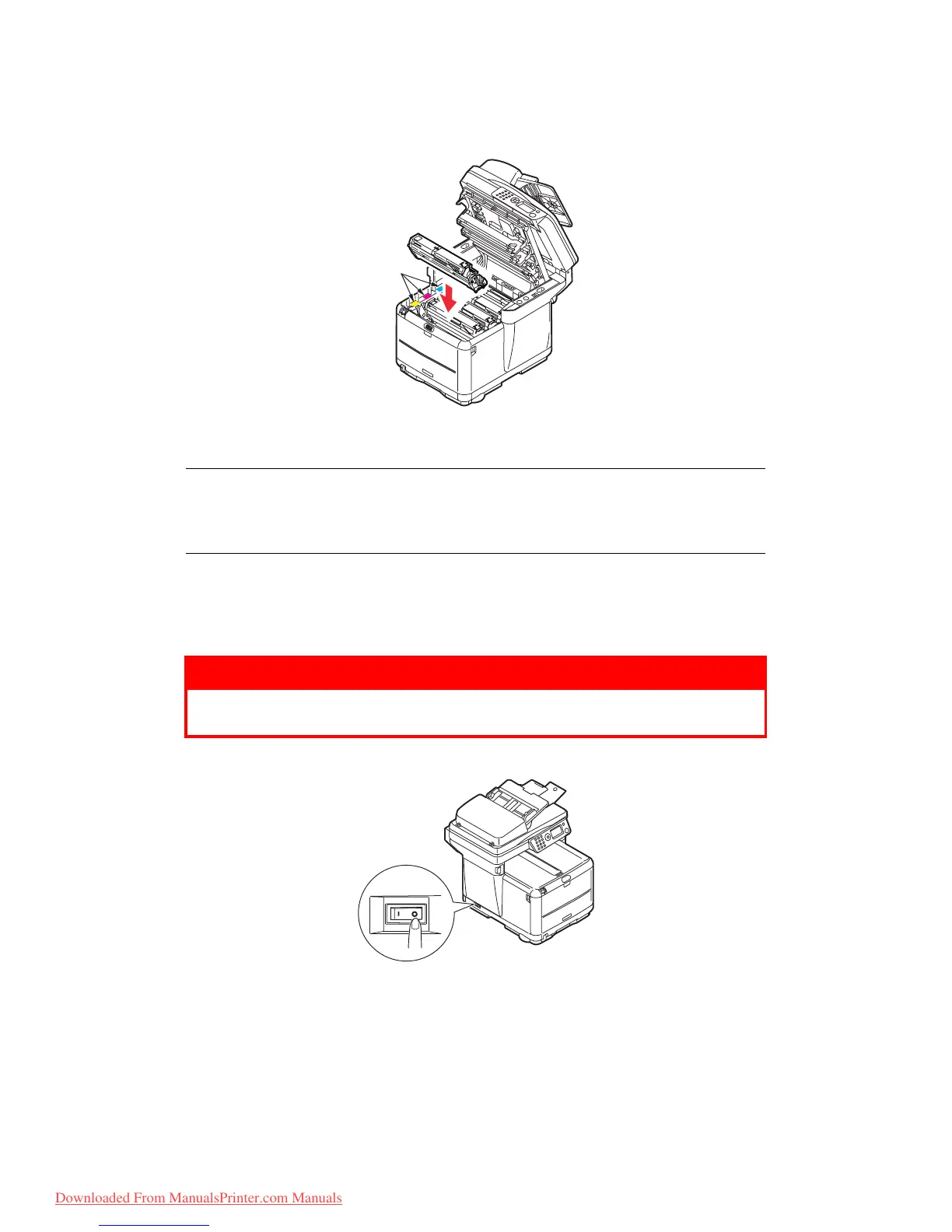

8. Holding the complete assembly by its top centre, lower it into place in the printer,
locating the pegs at each end into their respective slots in the sides of the printer
cavity.
9. Close the printer top cover and press down firmly so that the cover latches closed.
10. Gently lower the scanner on to its supports.
T
RANSFER
BELT
REPLACEMENT
The belt unit is located under the four image drums. This unit requires replacement
approximately every 50,000 pages.
1. Switch the MFP OFF.
NOTE
If you need to return or transport your printer for any reason, please make
sure you remove the image drum unit beforehand and place in the bag
provided. This is to avoid toner spillage.
WARNING!
If the printer has been powered on, the fuser will be hot. This area
is clearly labelled. Do not touch.
C,M,Y
