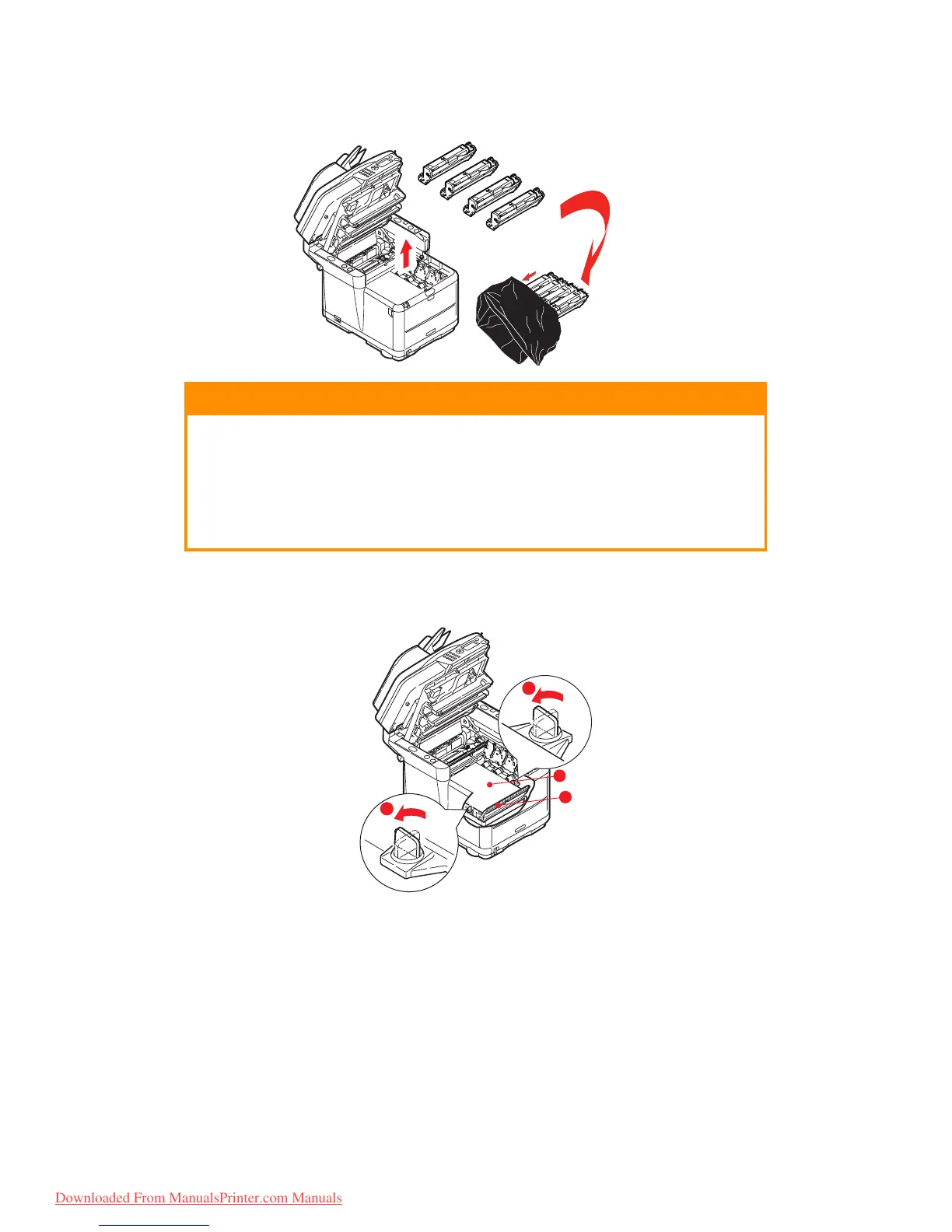

5. Starting from the rear, lift each of the image drum units, out of the printer and place
them in a safe place away from direct sources of heat and light.
6. Locate the two fasteners (a) at each side of the belt (b) and the lifting bar (c) at the
front. Turn the two fasteners 90° to the left. This will release the belt from the
printer chassis.
CAUTION!
The green image drum surface at the base of each cartridge is very
delicate and light sensitive. Do not touch it and do not expose it to
normal room light for more than 5 minutes. If the drum unit needs
to be out of the printer for longer than this, please wrap the
cartridge inside a black plastic bag to keep it away from light.
Never expose the drum to direct sunlight or very bright room
lighting.
a
a
b
c
