Maintenance > 107

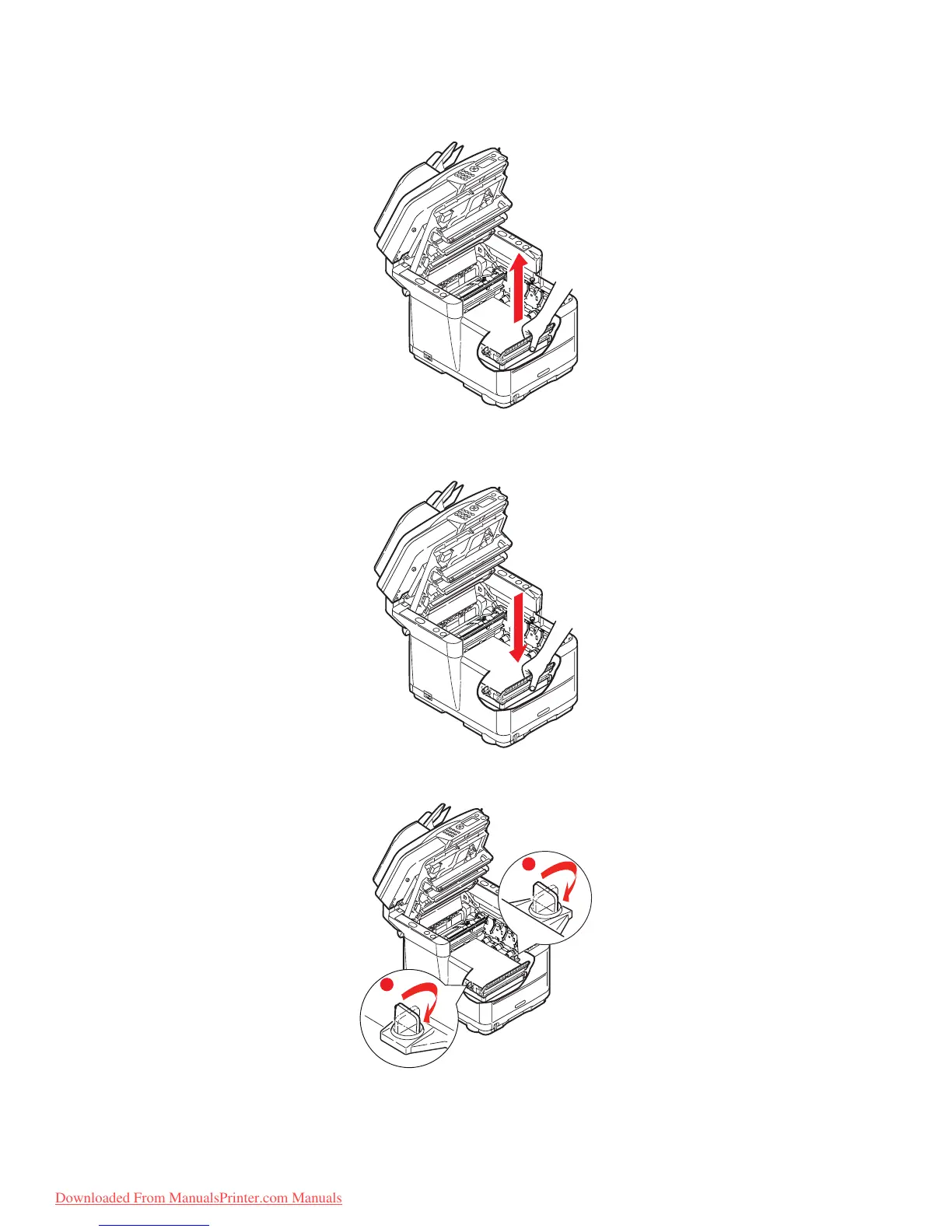

7. Pull the lifting bar (c) upwards so that belt tilts up towards the front, and withdraw
the belt unit from the printer.
8. Lower the new belt unit into place, with the lifting bar at the front and the drive gear
towards the rear of the printer. Locate the drive gear into the gear inside the printer
by the rear left corner of the unit, and lower the belt unit flat inside the printer.
9. Turn the two fasteners (a) 90° to the right until they lock. This will secure the belt
unit in place.
a
a
