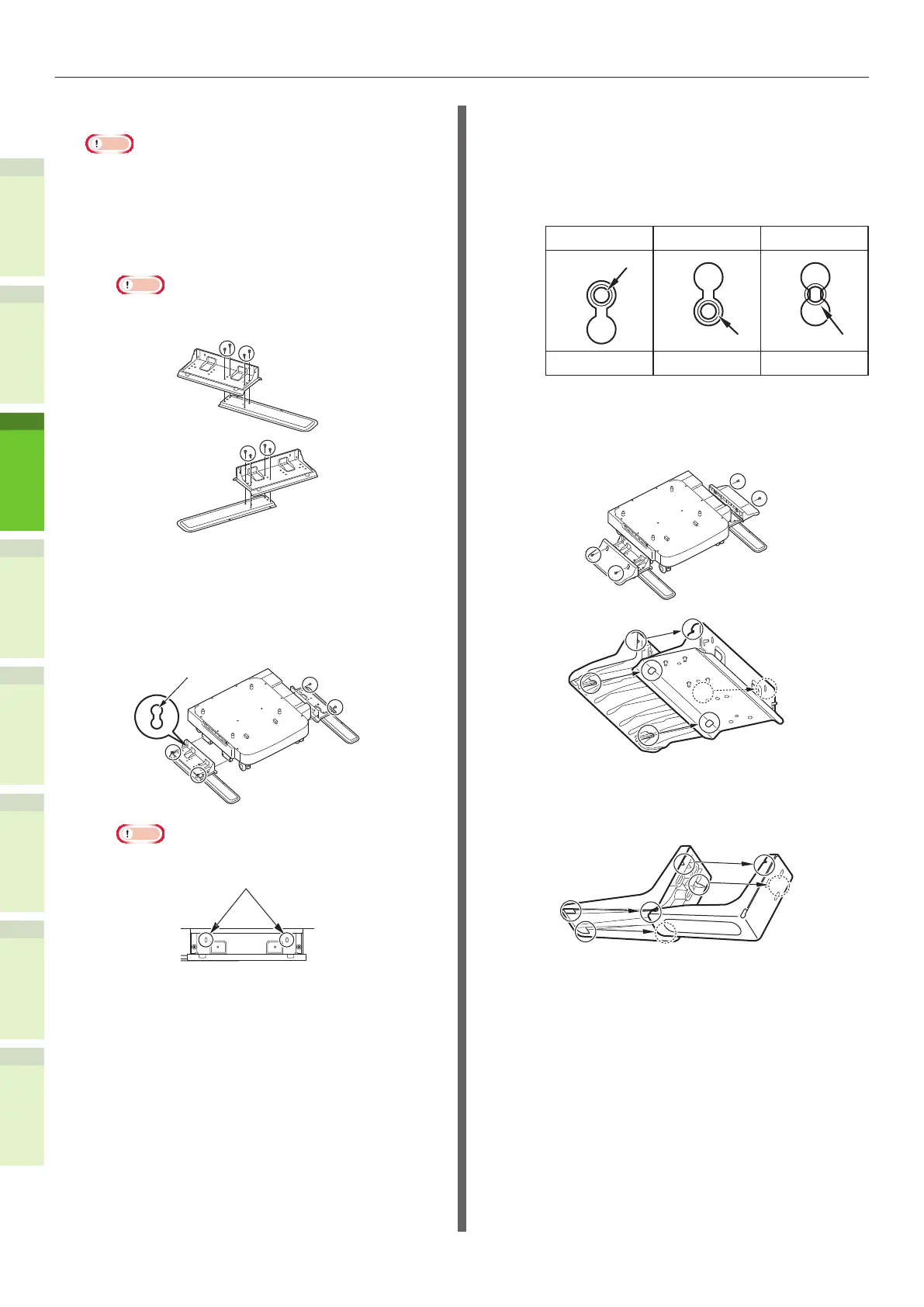

- 34 -
Installing Additional Tray Units
1
2
4
5
6
3
3
Attach the caster unit.
Note
When the casters are not used, this step is not
necessary.
(1) Attach the anti-tip feet (both
sides and front) with four
screws.
Note
Attachment directions are different for the left side
and the right side.
(2) Put the bottoms of the anti-tip
feet (both sides) on the oor,
align the sides to the cabinet
and tighten them with the two
screws each.
Screw Hole
Note
Do not tighten the upper screws.
Screw Hole
When you tighten the bottom screws, attach the
anti-tip foot to the location where a screw does
not incline.
*
You can attach the screws to Case1 and Case2.
As the screw inclines when you tighten the screw
in Case3, lift the anti-tip foot and attach the
screw to Case2.
Case 1 Case 2 Case 3
Screw Hole
Screw Hole
Screw Hole
OK OK NG
(3) Tighten the anti-tip foot covers
(both sides) and anti-tip feet
with two screws each.
(4) Align the anti-tip foot cover
(rear) to the rear side of the
anti-tip foot.
