Connecting the Cables
1
2
4
5
6
3
•

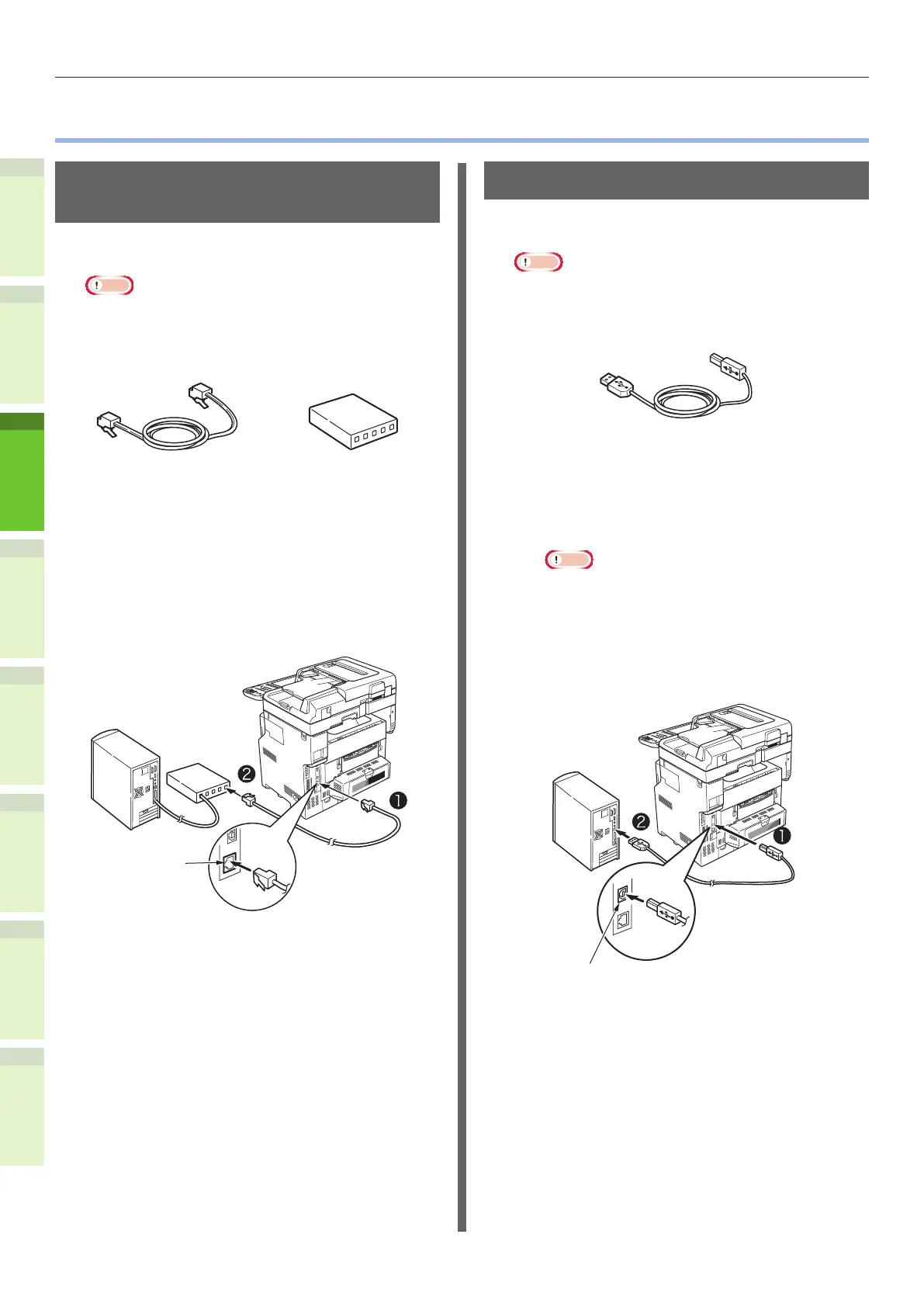

Connecting the Cables
Connecting the Network
Cables
1
Procure a network cable and a hub.
Note
•
A network cable and hub are not provided with
this product. Procure a network cable (category 5,
twisted pair, straight) and a hub separately.
<Network Cable> <Hub>
2
Connect the machine to the
network.
(1) Insert the network cable into the
network interface connector of
the machine.
(2) Insert the network cable to the
hub.
Network
Interface
Connector
Connecting the USB cable
1
Prepare a USB cable.
Note
•
A USB cable is not provide with this product. Procure
a USB 2.0 cable separately.
•
Use a USB 2.0 Hi-Speed cable for a USB 2.0 Hi-
Speed connection.
2
Connect the USB cable.
(1) Insert the end of the USB cable
into the USB interface connector
of the machine.
Note
•
Be careful not to insert the USB cable into the
network interface connector. This may cause
damage.
(2) Insert the end of the USB cable
into the USB interface connector
of the computer.
USB Interface
Connector
