Oki MICROLINE MX Series Quick Setup Guide

27
Load The Ribbon

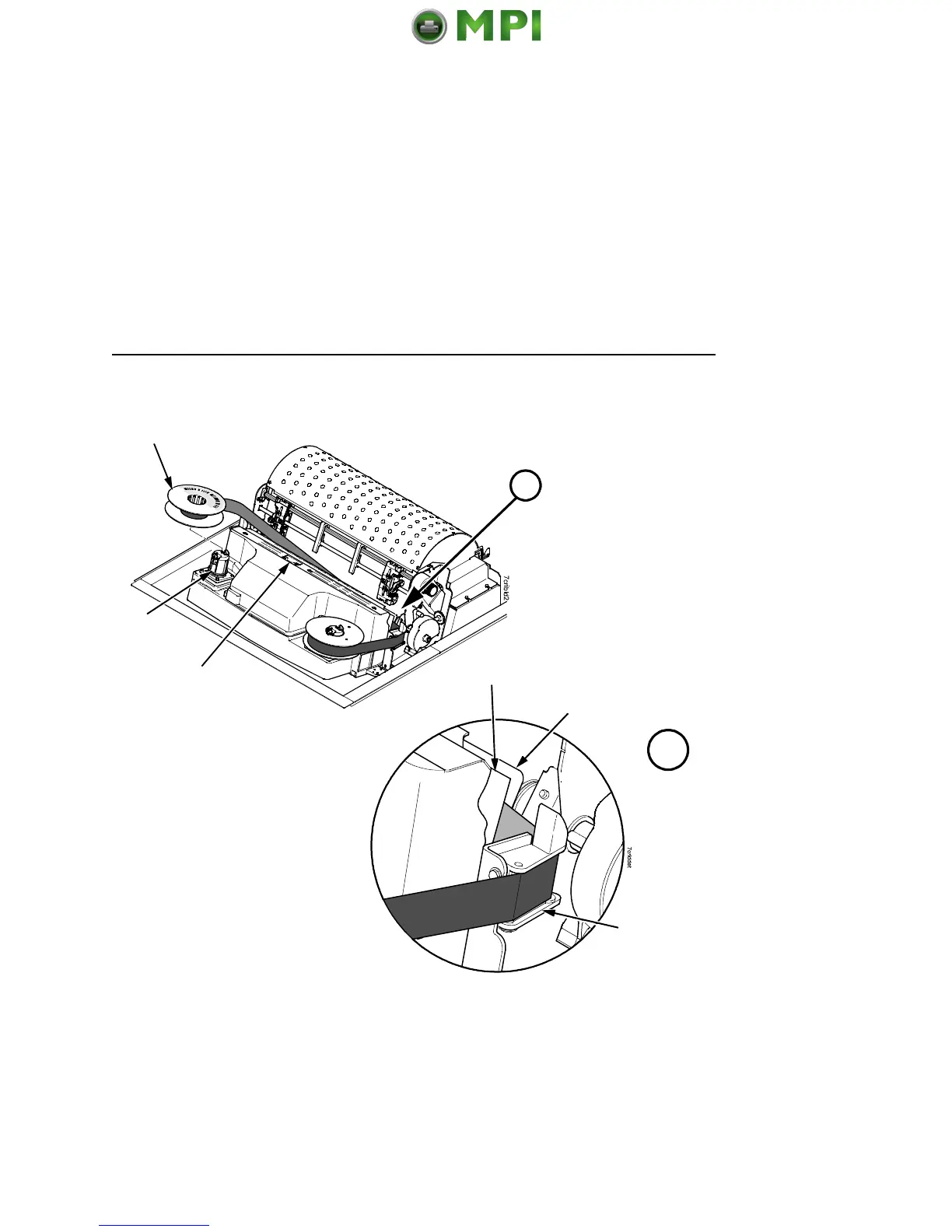

Figure 19. Threading the Ribbon Around the Ribbon Guide
6. Thread the ribbon around the ribbon guide and along the ribbon
path. Be sure to thread the ribbon between the hammer bank
cover and the ribbon mask.
7. Place the empty spool on the left hub.
8. Press the spool down until it snaps into place.
9. Turn the left spool by hand to make sure the ribbon tracks
correctly in the ribbon path and around the ribbon guides.
Ribbon Guide
(both sides)
Left Hub
Ribbon Spool
Ribbon Mask
A
A
Hammer
Bank Cover
Ribbon Loading
Instructions
(for future reference)
