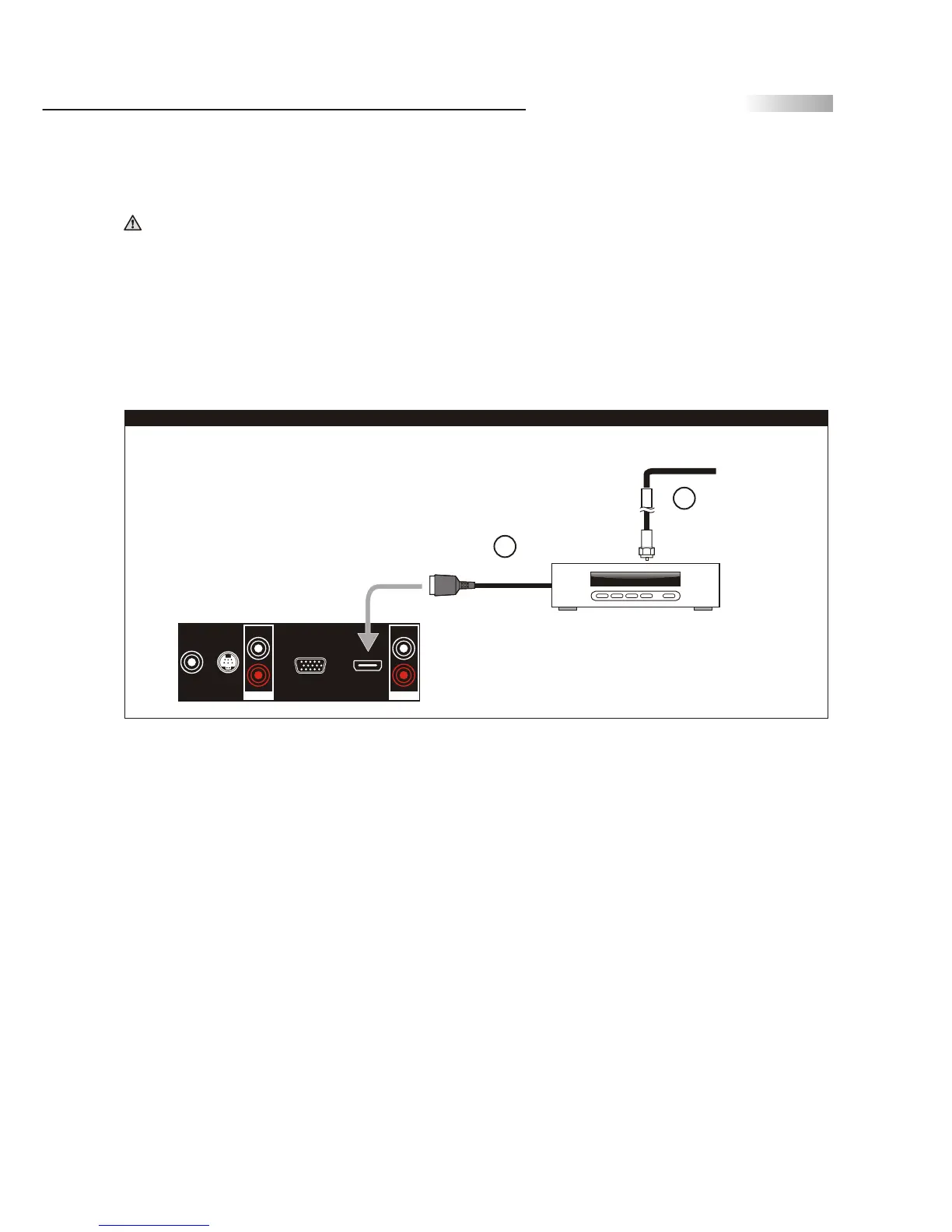

Connecting to a Set-Top-Box with HDMI Cables
1. Connect a 75-ohm coaxial cable (or choice of Antenna Cable) from your cable or antenna to the
Set-Top-Box's VHF/UHF jack (RF Terminal).
2. Connect a HDMI cable from the Set-Top-Box's HDMI OUT jacks to the TV's HDMI IN jacks.
Disconnect all power sources before making any connection.
HDMI cable
Rear of TV
Set-Top-Box
(75-ohm
coaxial
cable)
1
2
TV Installation and Connection Guide
Note: HDCP is a copy protected digital connection that receives analog or digital video and audio signals from
equipment with a HDMI output that features the HDCP function. HDMI allows the transfer of digital
uncompressed data to the TV. This connection is superior when compared to the Component, S Video or AV
(composite) connections.
Note: HDMI signal is purely digital and provides a better picture, it is better than component, S-Video or Video
connections. It is strongly recommended to use this connection if you have this function on your equipment.
HDMIANT
Input
L
R
Input
L
R
RS232C
Control
Port
VGA/Component
For 427~432 Models
Cable /
Satellite
