20

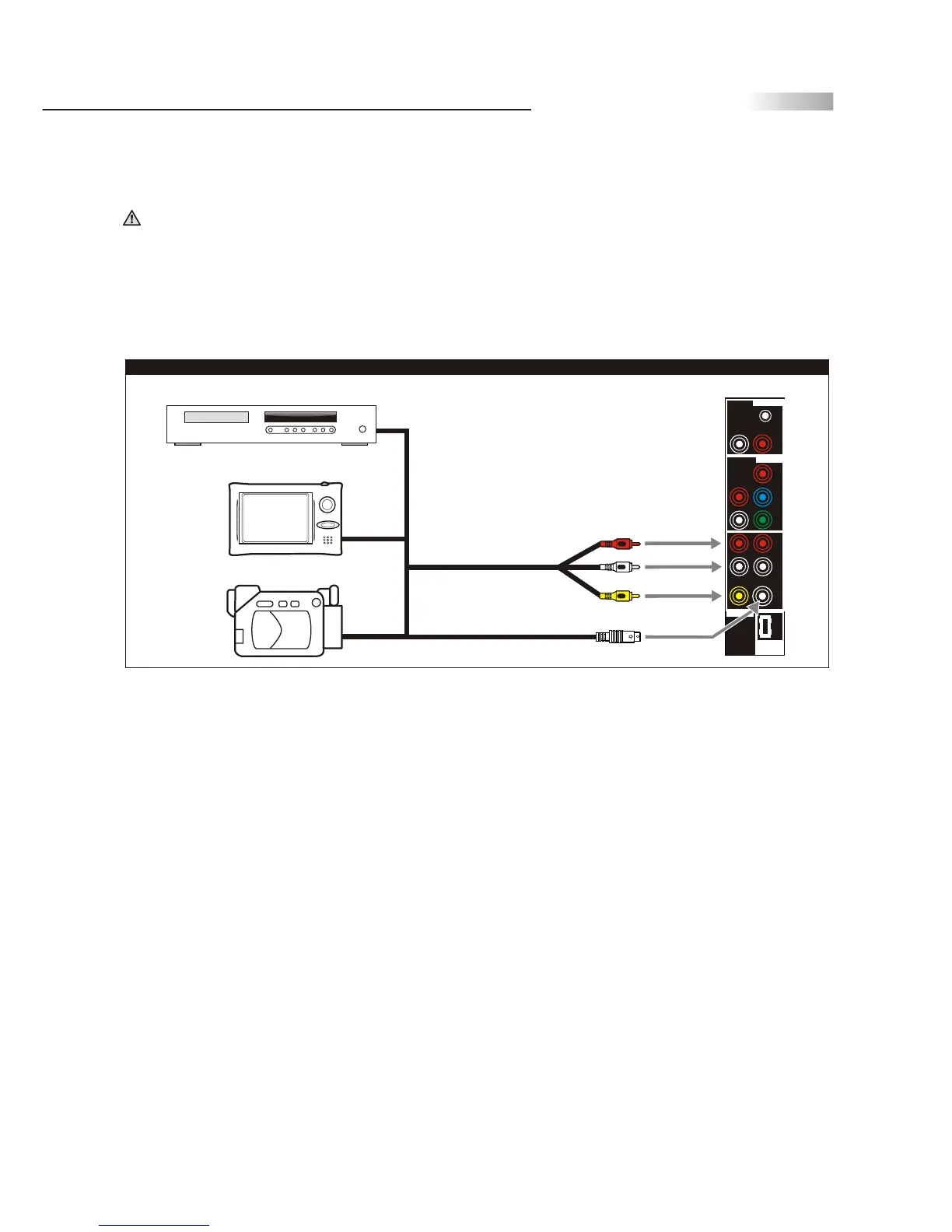

Connecting to a VCR, PVR, or DV with A/V Cables
1.Using A/V cable and S-Video cables, connect the video equipment's Audio and S-Video OUT jacks to the
TV's Audio and S-Video In jacks.
Connecting both Video IN and S-Video IN
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S-Video first.
To view Video signal, please disconnect the S-Video jack or turn off the S-Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or videoeq uipment has it. S-Video input hasa b etter
quality of picture than a composite Video signal.
Disconnect all power sources before making any connections.
A/V cable with RCA connector
S Video cable
VCR
DV
PVR
TV Installation and Connection Guide
Ear Phone
L
Pb/Cb
Pr/Cr
Y
R
R
L
R
L
R
L
S-VideoCVBS
Audio Output
Component
Firmware
Upgrade
Port
Video
Yellow
Red
White
Rear of TV
For 427~432 Models
To Next Page
