Connecting to an Audio Receiver / Home Theater System
Note: When connecting an Audio output signal, an external Audio amplifier is necessary to amplify the signal
for external speakers.
Note: If you connect a Home Theater Sound System, please disable the TV's speakers in the OSD by selecting
off in audio section. Volume adjustment must be made on the Home Theater Receiver. By not disabling the
TV's speakers it may cause the speakers or the TV itself damage.
Disconnect all power sources before making any connections.

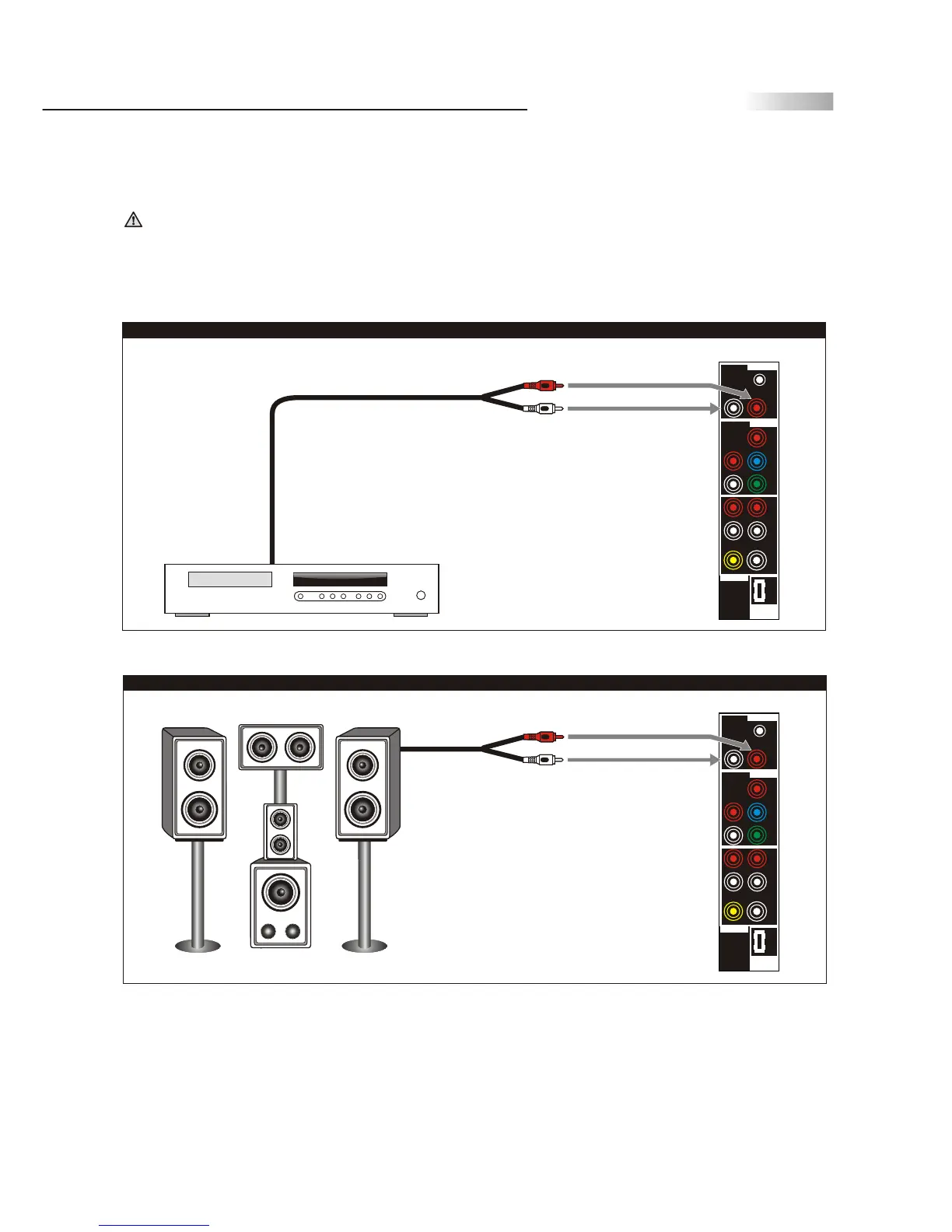

1.Using the audio cable, connect the TV's audio OUT jack to the audio receiver's or Home Theater System's
audio IN or AUX IN jacks.
24
TV Installation and Connection Guide
Audio cable
Audio Receiver
Rear of TV
Audio cable
Home Theater System
Red
White
Rear of TV
Ear Phone
L
Pb/Cb
Pr/Cr
Y
R
R
L
R
L
R
L
S-VideoCVBS
Audio Output
Component
Firmware
Upgrade
Port
Video
Ear Phone
L
Pb/Cb
Pr/Cr
Y
R
R
L
R
L
R
L
S-VideoCVBS
Audio Output
Component
Firmware
Upgrade
Port
Video
For 427~432 Models
For 427~432 Models
Red
White
