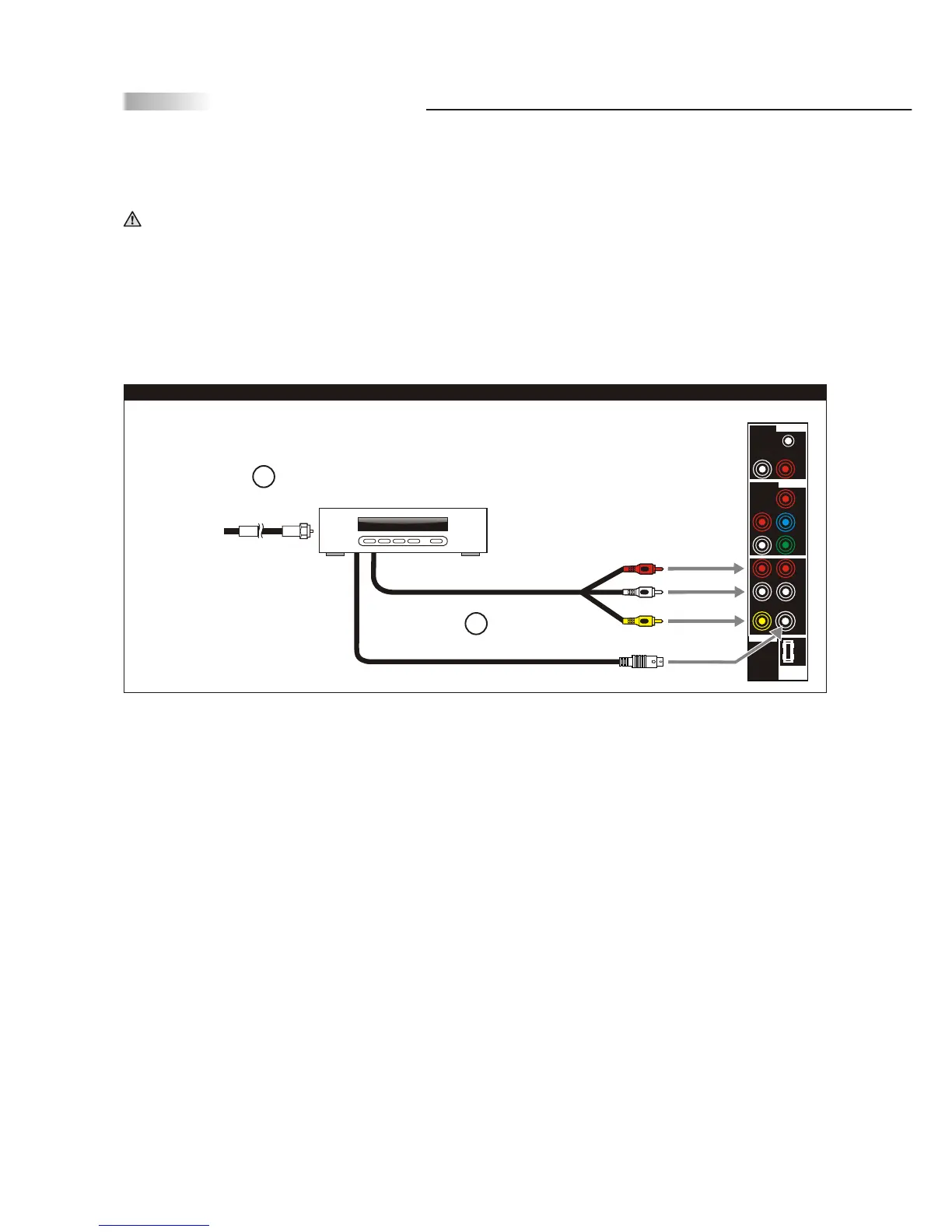

Connecting to a Satellite Receiver or Cable Box with A/V Connectors
1.Connect a 75-ohm coaxial cable from your Cable TV to the Satellite Receiver's or Cable Box's Ant (Antenna)
jack.
2.Using Audio and S Video cables, connect the satellite receiver's Audio and S-Video OUT jacks to the TV
Audio and S Video IN jacks.
Note: When you connect video equipment to both the same Video and S-Video input jacks, display will
automatically select S Video first.
To view S-Video signal, please disconnect Video jack or turn off the Video signal on the video equipment.
S-Video is strongly recommended for use if your VCR or video equipment has it because S-Video input has
better quality of picture than a composite Video signal.
Disconnect all power sources before making any connections.
Satellite Receiver
or Cable Box
2
(75-ohm
coaxial cable)
1
A/V cable with RCA connector
S Video cable
TV Installation and Connection Guide
Ear Phone
L
Pb/Cb
Pr/Cr
Y
R
R
L
R
L
R
L
S-VideoCVBS
Audio Output
Component
Firmware
Upgrade
Port
Video
Yellow
Red
White
Rear of TV
For 427~432 Models
