CHAPTER 5 - PART DISASSEMBLY
Bef
ore attempting any operations on the product, follow precisely these instructions:
• Disconnect the power cord.
• Read and follow precisely the instructions below
.
A
ny errors could cause damage to the system and render the warranty cover void.
Given the similarity of the products, when necessary in the operations illustrated below, the image on the
left refers to the ECR 7190 (white) model, that on the right to ECR 7790-7790LD (black) models.

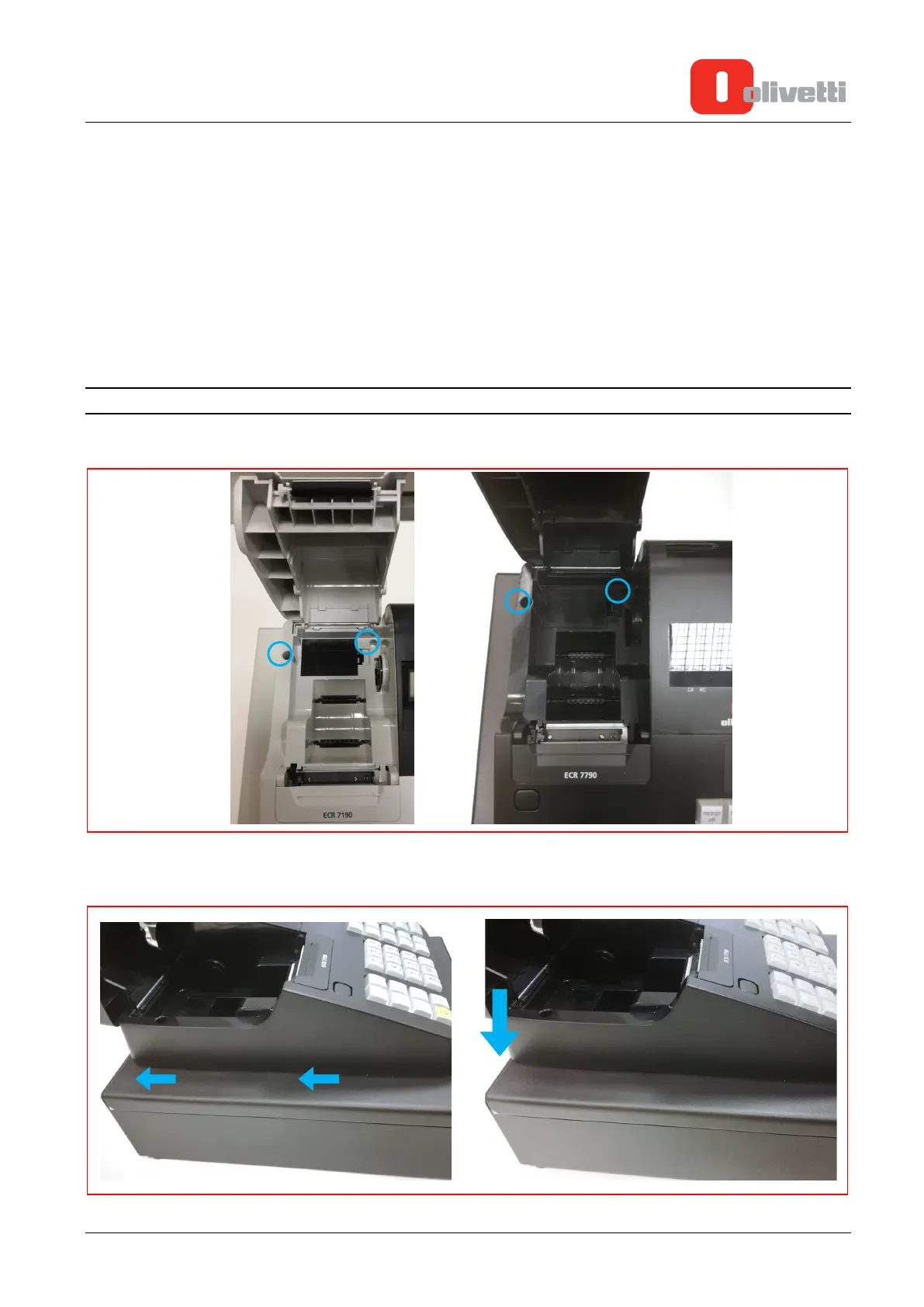

OPENING AND DISASSEMBLING THE CASH REGISTER
1. U
nscrew the screws inside the paper roll compartment.
2. P
ush the machine body right to the end in the direction indicated by the arrow.
Y119070-7 Service Manual 5-1
