Olivetti ECR 7190 - Transformer

TRANSFORMER

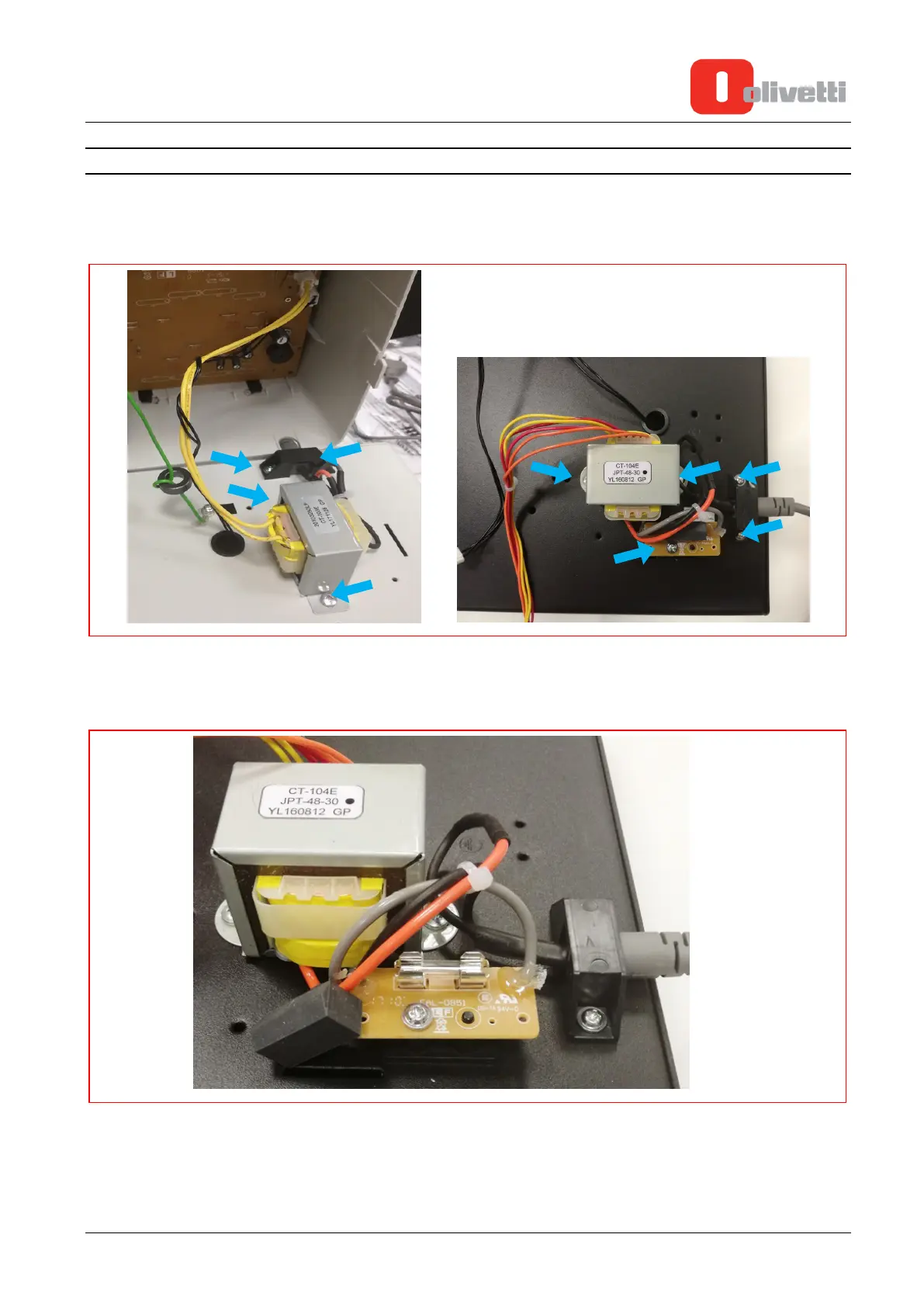

1. Af
ter having disconnected the connector from the board, as previously shown, remove the screws
indicated in the figure and then replace the transformer unit.
2. On
ECR 7790-7790LD models, you can check the power fuse (A) and replace it when necessary.
A
Y119070-7 Service Manual 5-3
