Olivetti ECR 7190 - Display Unit

DISPLAY UNIT

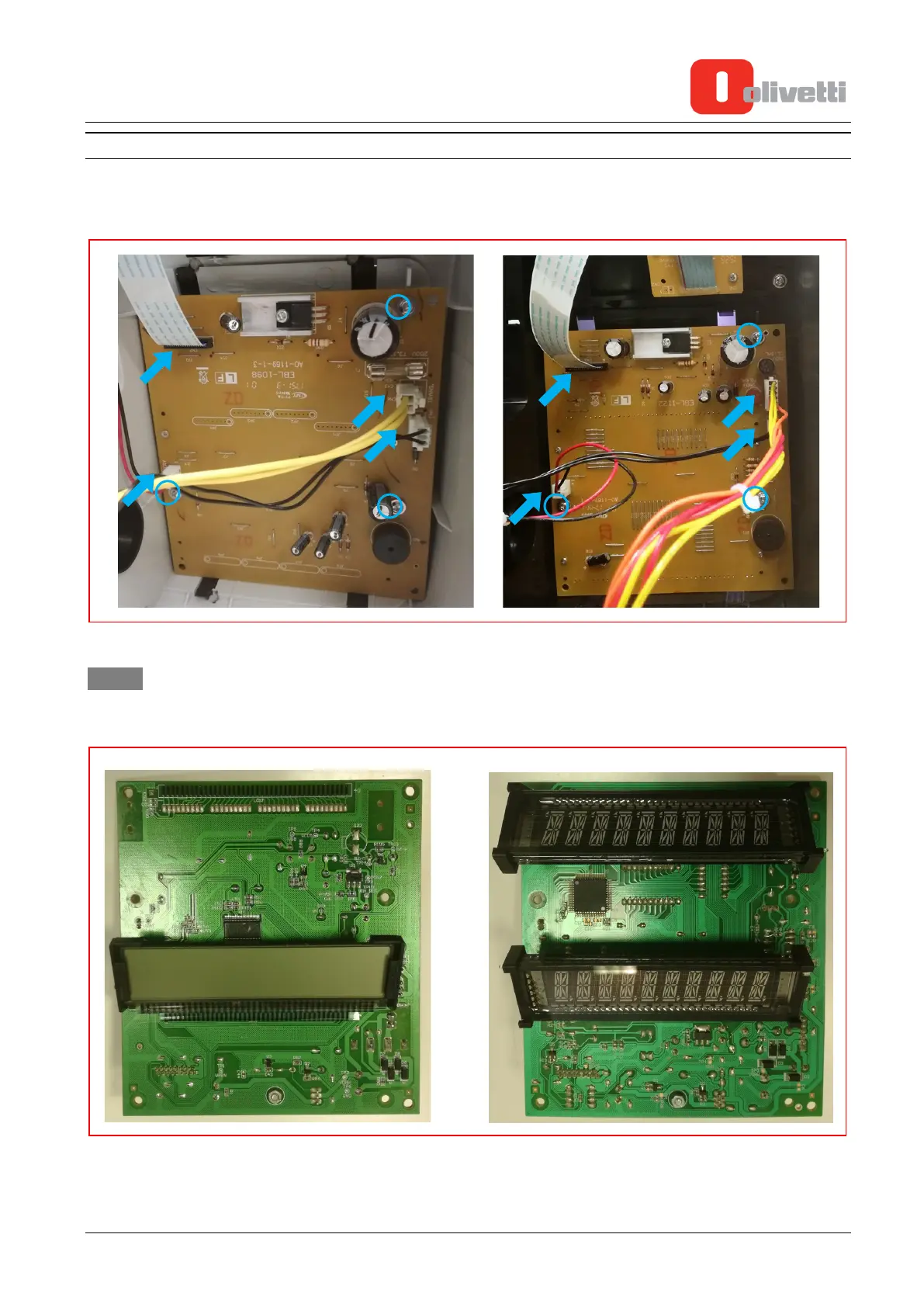

1. Di
sconnect the connectors and the flat cable on the display board then remove the screws indicated in
the figure.
NOTE
The ECR 7190 board supports only a single display, while ECR 7790-7790LD models support two displays
(as shown in the image).
Y119070-7 Service Manual 5-5
