Olympia Electronics recommends the following cables:
1. YSLY-OZ
2. LiYCY
Typical cable cross section is from 0.75mm2 to 2.5mm2 depending on the number of connected
luminaires, topology of the installation and length of cable runs.
3.2. Topology of the installation
The maximum number of luminaires connected to the panel is 250. The panel has 4 outputs Z1A,
Z1B, Z1C and Z1D.

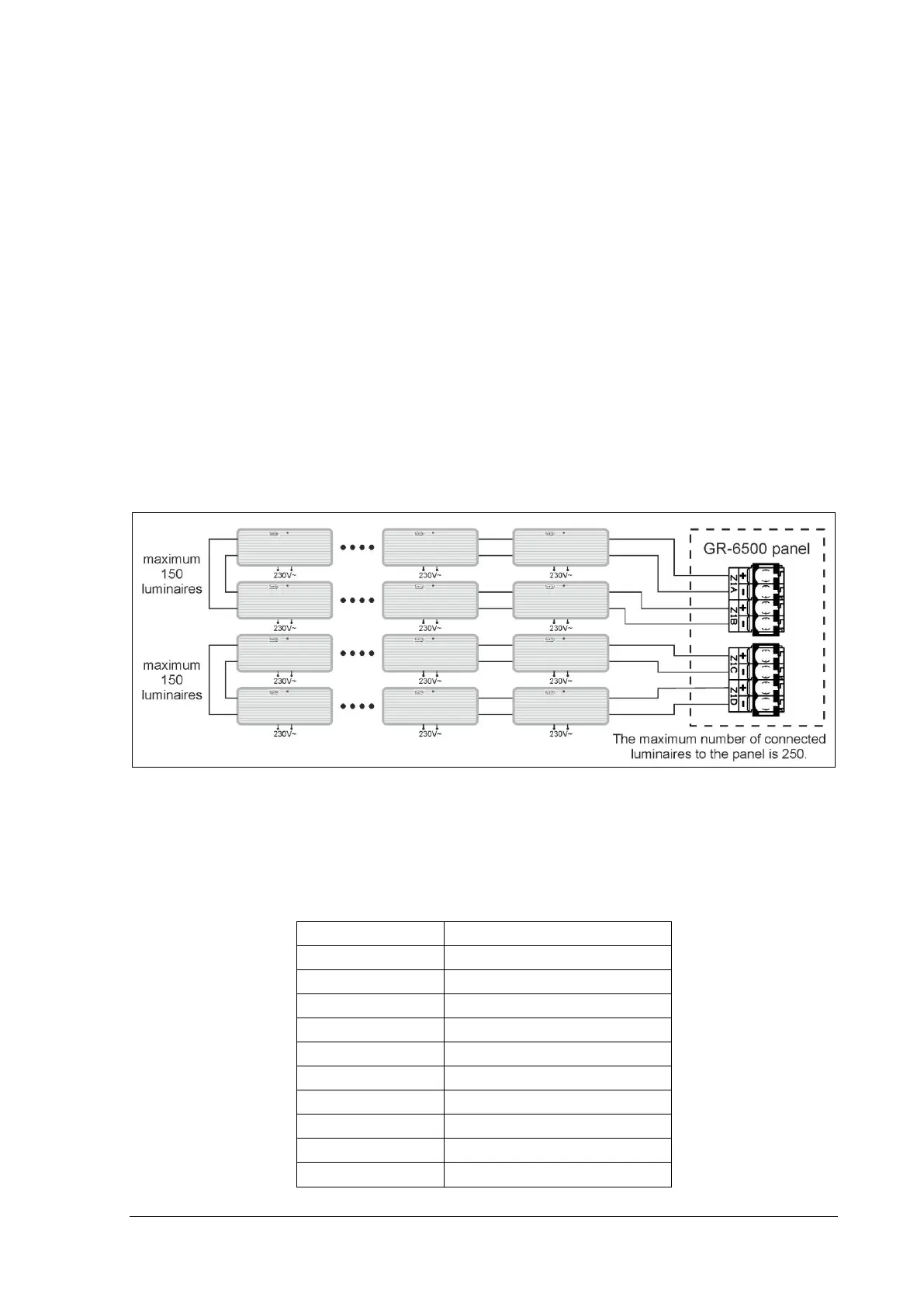

The ideal connection is a loop connection topology between the above outputs. For example, the
installation can start from Z1A and finish at Z1B, with the maximum number of luminaires connected
being 150 per loop. Please see the following diagram.
3.3. Addressable luminaries
The luminaries that are compatible (communicates) with the panel are:
A/A
Name
1
GR-360/ADR
2
GR-362/ADR
3
GR-364/ADR
4
GR-421/3L/ADR
5
GR-421/3L/M/ADR
6
GR-421/6L/ADR
7
GR-423/3L/ADR
8
GR-423/6L/ADR
9
GR-423/24L/ADR
10
GR-421/24L/ADR
