1. Operation instructions
Thank you for purchasing this product of Olympia Electronics, a European manufacturer.
This section contains general information and instructions about using the panel. All users of the
panel should read these instructions very carefully in order to be able to act in an emergency situation
or in a fault condition.
1.1. Description
The GR-6500 is a 16 zone addressable control panel for emergency luminaires that can connect with
250 devices. All the luminaires that are connected on the loop are displayed on the panel with the
general term «POINTS». This term will be also used in the instructions below from now on.
1.2. Safety
A device is not considered that it is being used correctly if the accompanying documents are
not read prior to its use. This product must be installed, commissioned and maintained by qualified
technical personnel according to:
• Regulations referring to installing electrical devices in buildings
• The legislation requirements
• The manufacturer’s instructions
1.3. Indications and Controls
The panel incorporates a Liquid Crystal Display (LCD) and a series of indication LEDs which are used
to inform the user about the panel’s status.

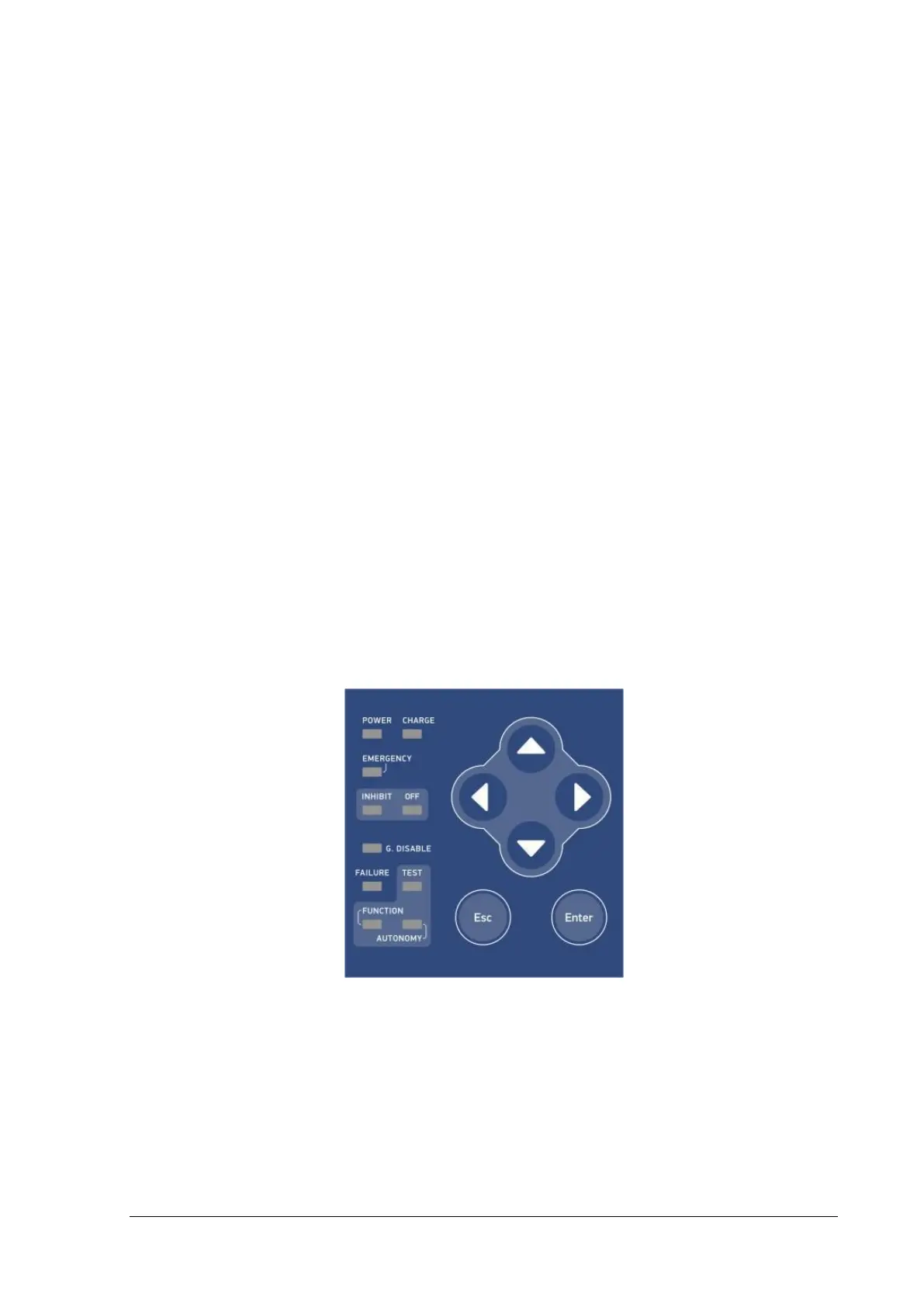

Figure 1-1
The indications of each LED from the figure above are:
• “POWER”, is always on and flashes when the mains power of the panel is off
• “CHARGE”, is on when all luminaires are charging
• “EMERGENCY”, is on when any luminaire is in emergency mode
