• “CHARGING” all the luminaires are in charging mode
• “EMERGENCY” at least one of the luminaires is in emergency mode
• “FUNCTION TEST” a function test is running
• “CAPACITY TEST” a capacity test is running
• “INHIBIT” inhibit mode is active
• “OFF” off command is active

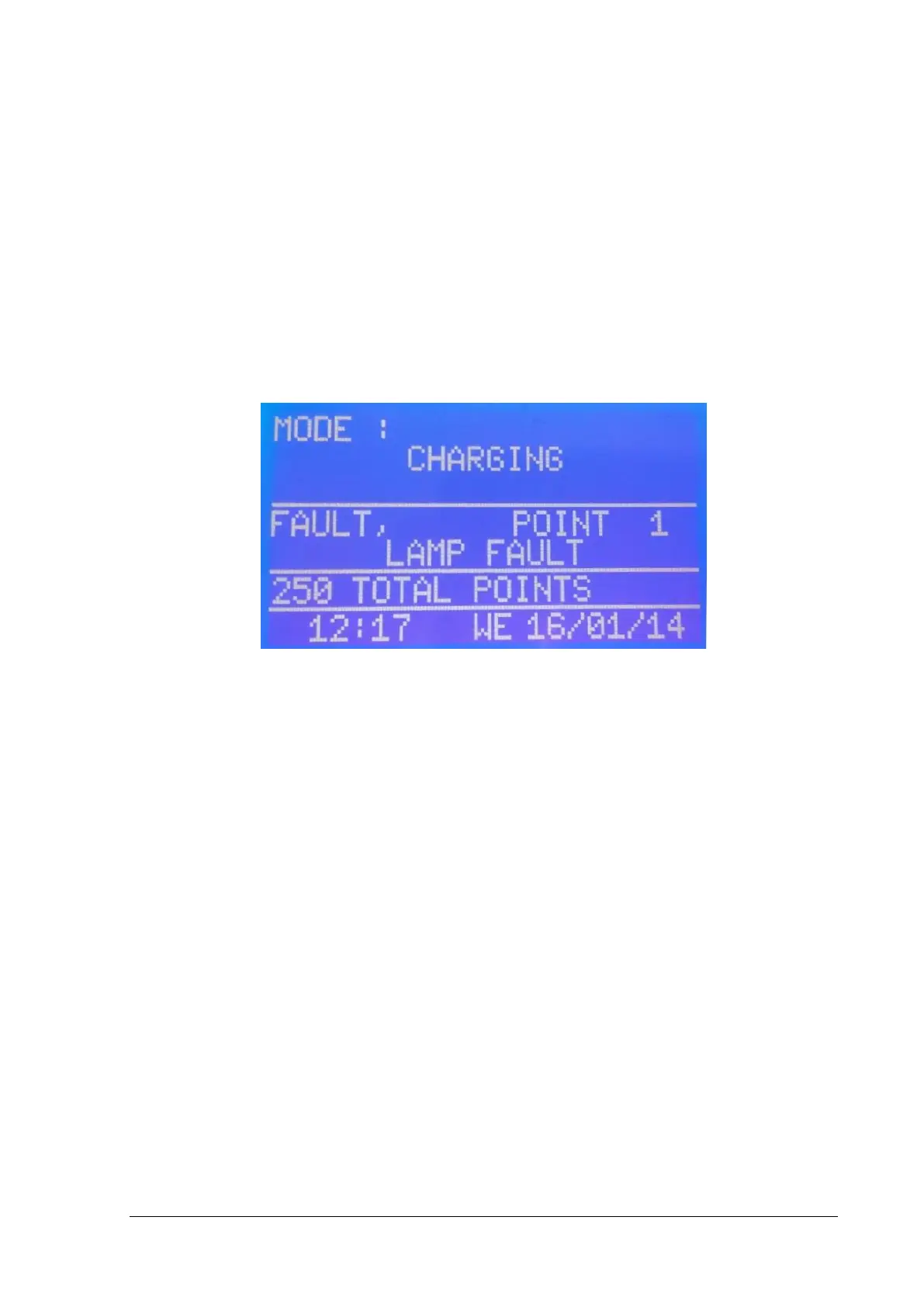

The second section indicates the status of the panel. The panel can be in normal state or in fault state
either. If any fault is found it’s displayed on this section. An update is made every few seconds to
display all faults. On the figure below you can notice that the panel is in fault state and there is a lamp
fault at “POINT 1” too.
Figure 1-3
The third section displays information concerning the installation, including:
• Total points installed
• How many luminaires are in emergency mode
• How many luminaires are currently on a function or a capacity test
• How many points are disabled
• How many are the current faults
The last section shows the time and date of the panel.
