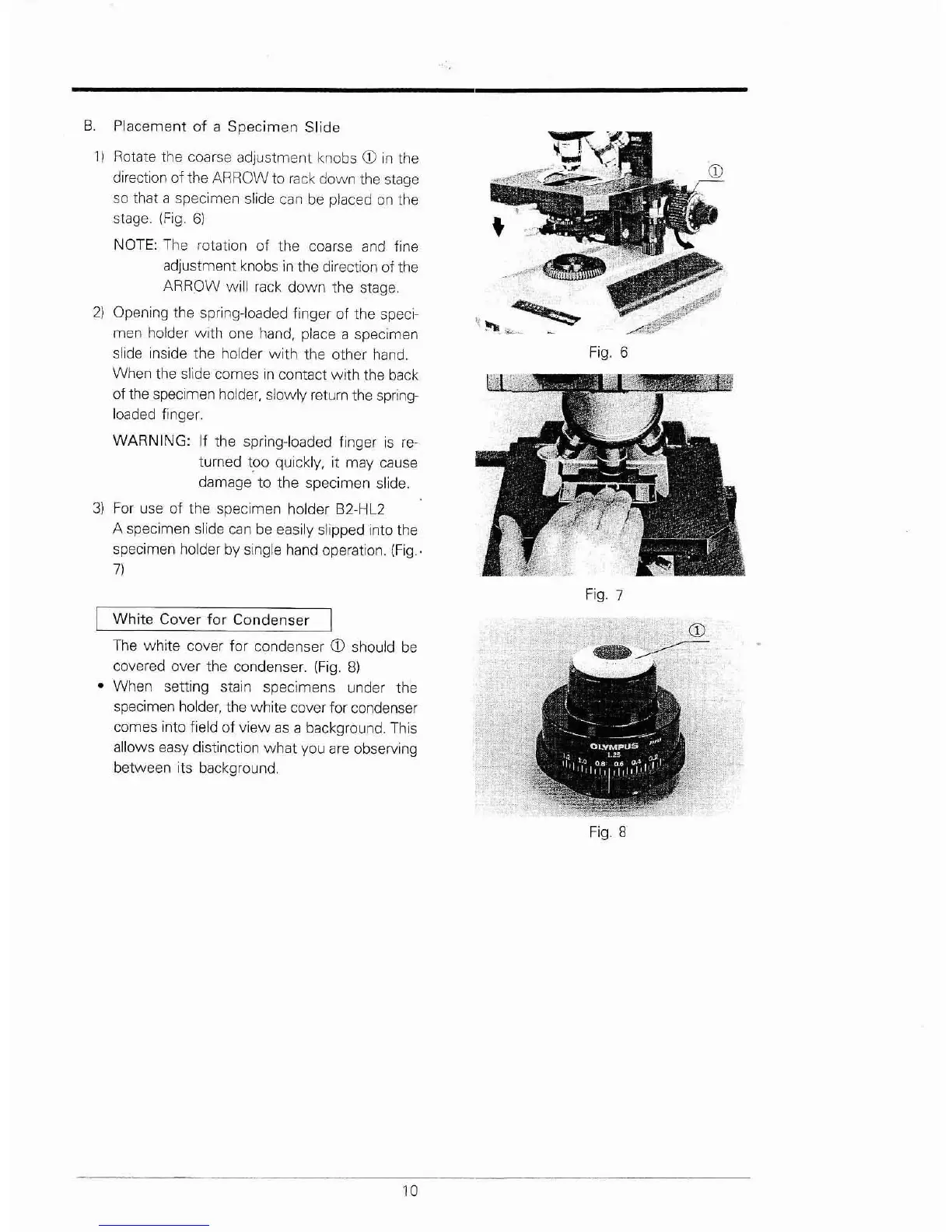

Fig. 6
B.
Placement
of
a
Specimen
Slide
11
Rotate the coarse adjustment knobs
CD
in
the
direction of the ARROW to rack down the stage
so
that a specimen slide can
be
placed
on
the
stage.
(Fig.
6)
NOTE: The rotation of the coarse and fine
adjustment knobs
in
the direction of the
ARROW will rack
down
the stage.
2)
Opening the spring-loaded finger of the speci-
men holder with one hand, place a specimen
slide Inside the holder
with
the other hand.
When the slide comes
in
contact
with
the back
of the specimen holder, slowly return the spring-
loaded finger.
WARNING: If the spring-loaded finger
IS
re-
turned
t.oo
quickly, it may cause
damage
to
the specimen slide.
3)
For
use
of
the specimen holder B2-HL2
A specimen slide
can
be easily slipped into the
specimen holder by single hand operation. (Fig.,
71
Fig.
7
White
Cover
for
Condenser
The white cover for condenser
CD
should
be
covered over the condenser.
(Fig.
8)
• When setting stain specimens under the
specimen holder, the white cover for condenser
comes into field
of
view
as
a background. This
allows easy distinction
what
you are observing
between its background.
