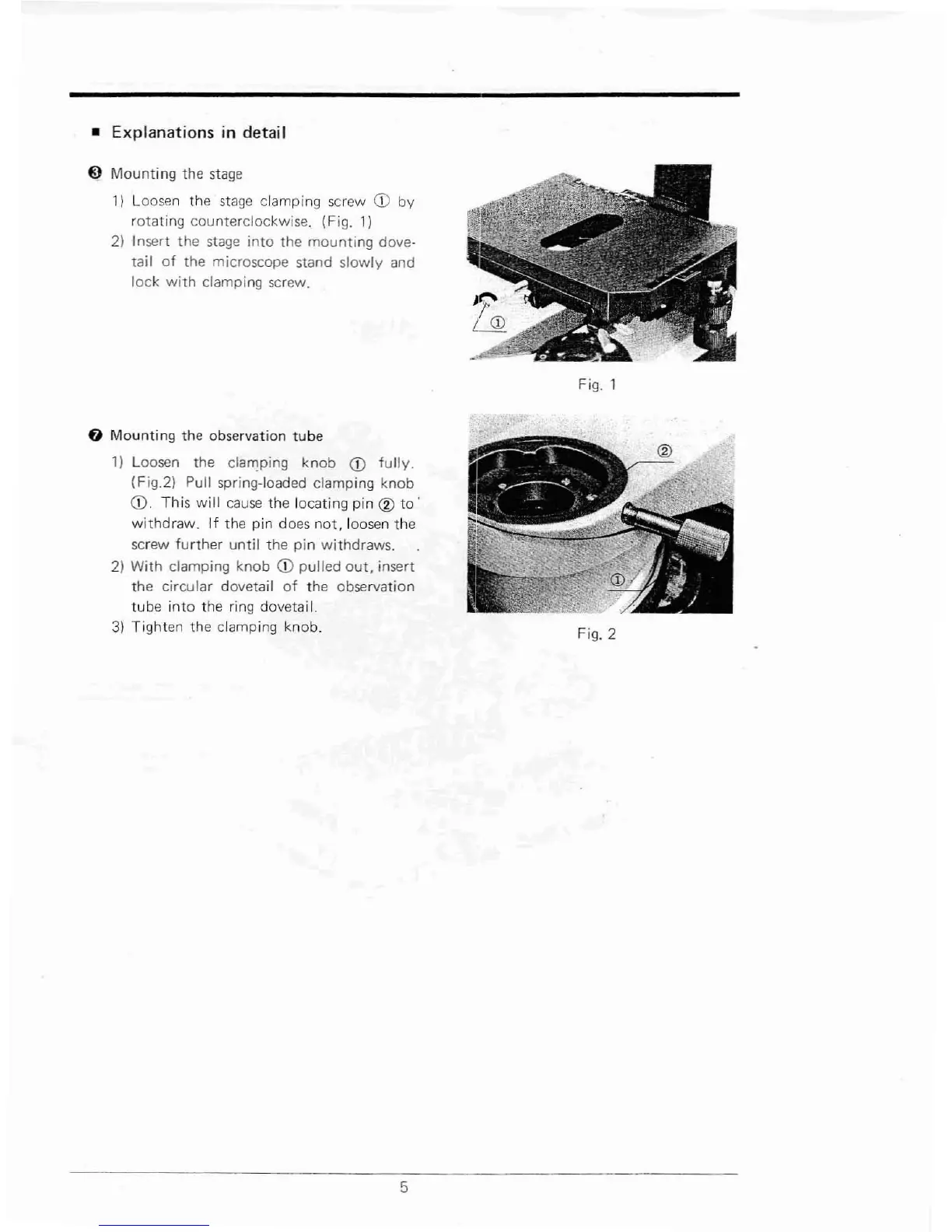

Explanations
in detai I
9
Mounti
ng
the
stage
11
Loosen the
stage
clamping screw
CD
by
rotating counterclockwise. (Fig. 1)
2) Insert the
stage
into the mounting dove-
tail
of
the microscope stand slowly and
lock
with
clamping screw.
fJ
Mounting the observation tube
1)
Loosen the clamping
knob
CD
fully.
(Fig.21 Pull spring-loaded clamping knob
CD.
This
will
cause
the locating pin
<V
to·
withdraw.
If
the pin does
not,
loosen the
screw
further until the pin withdraws.
2)
With
clamping knob
CD
pulled
out.
insert
the circular dovetail
of
the observation
tube into the
ring
dovetai
I.
3)
Tighten the clamping knob.
5
Fig.
Fig. 2
