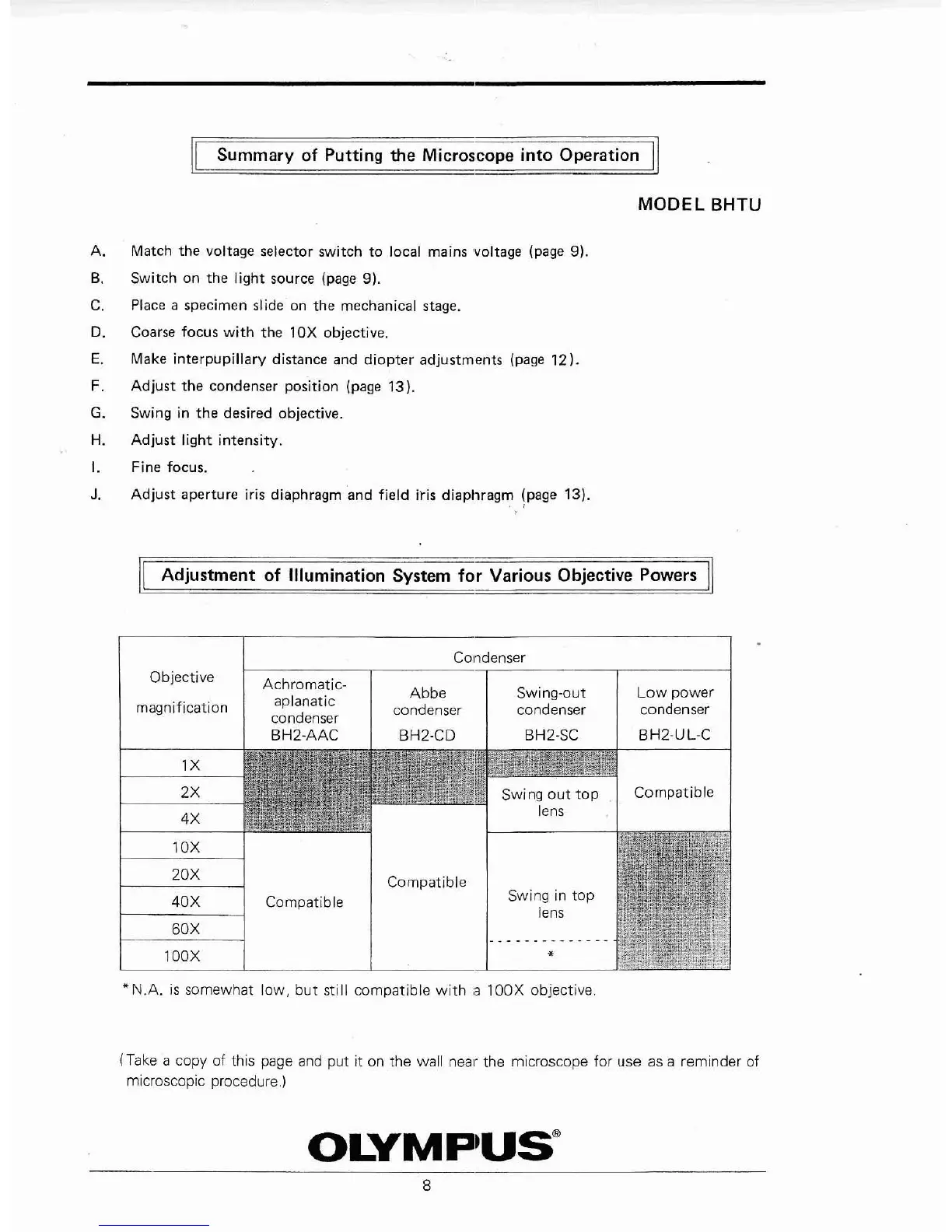

II Summary of Putting the Microscope into Operation II
MODEL BHTU
A. Match the voltage selector switch to local mains voltage (page 9).
B. Switch on the light source (page 9).
C. Place a specimen slide on the mechanical stage.
O. Coarse focus with the lOX objective.
E. Make interpupillary distance and diopter adjustments (page 12).
F. Adjust the condenser position (page 13).
G. Swing in the desired objective.
H. Adjust light intensity.
I. Fine focus.
J. Adjust aperture iris diaphragm and field j'ris diaphragm ~page 13).
I Adjustment of Illumination System for Various Objective Powers II
Condenser
Objective
Achromatic-
aplanatic
Abbe
Swing·out
Low power
magnification
condenser
condenser condenser
condenser
BH2-AAC
BH2-CD BH2-SC
BH2-UL-C
lX
2X
Swi ng out top
Compatible
4X
lens
lOX
20X
Compatible
40X Compatible
Swing in
top
lens
BOX
- - - - - - - - - - . -
lOOX
•
*N.A. is somewhat low, but still compatible with a 100X objective.
(Take a copy of this page
and put it on the wall near the microscope for use as a reminder of
microscopic procedure.)
