Olympus BXFM - Changing between the Eyepiece Light Path and the Camera Light Path; Placing a Sample on the Stand; Placing a Sample

18

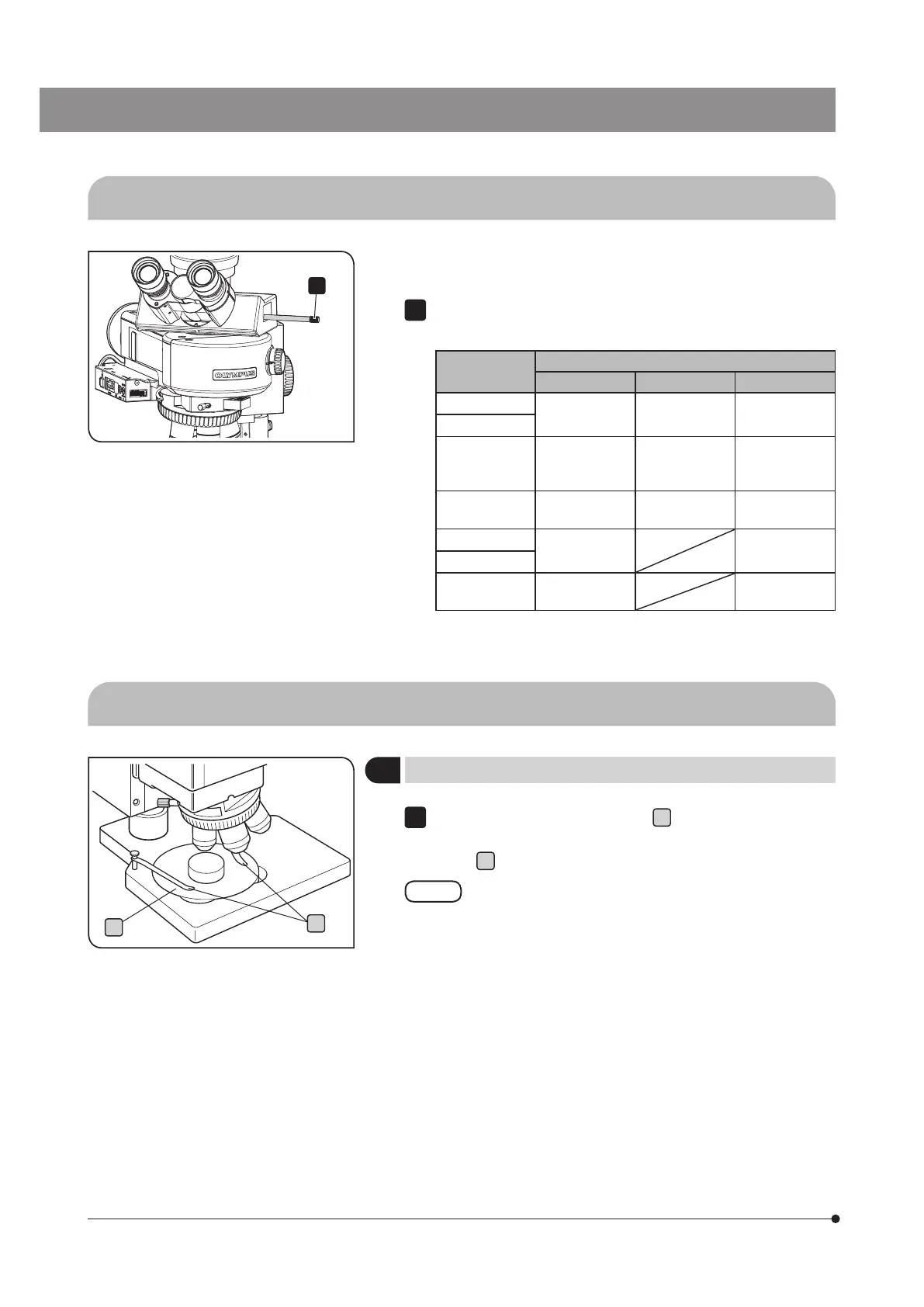

3-4 Changing between the eyepiece light path and the camera light path
You can select the light path for observing with the eyepiece or the
light path for observing with the display, etc. through the camera.
Slide the light path selection lever of the trinocular tube to select the
light path.
Trinocular tube
Light path selection lever position
Pressed in Middle Pulled out
U-TR30-2
Eyepiece 100%
Eyepiece 20%
Camera 80%
Camera 100%
U-SWTR-3
U-TR30IR Eyepiece 100%
Eyepiece 0%
Camera 0%
(Shutter)
Camera 100%
U-TTR-2
Eyepiece 50%
Camera 50%
Eyepiece 100% Camera 100%
U-ETR-4
Eyepiece 100% Camera 100%
U-SWETR
U-SWETTR-5 Eyepiece 100%
Eyepiece 20%
Camera 80%
1
3-5 Placing a sample on the stand
1
Placing a sample
Place the sample on the stage plate
a
before observation.
When using the stand (U-ST), hold the sample with the specimen
holder
b
as needed.
If the sample is not flat and/or parallel, the reflected light
does not return to the objective and you cannot perform the
observation.
1
TIP
a
b
1
