Olympus BXFM - Main Dimension Diagram

Olympus BXFM
88 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
Pillar center
Holder mount
surface
(Movable range)
Optical axis
Nosepiece
mount surface
Objective
mount surface
Specimen
surface
57
BXFM

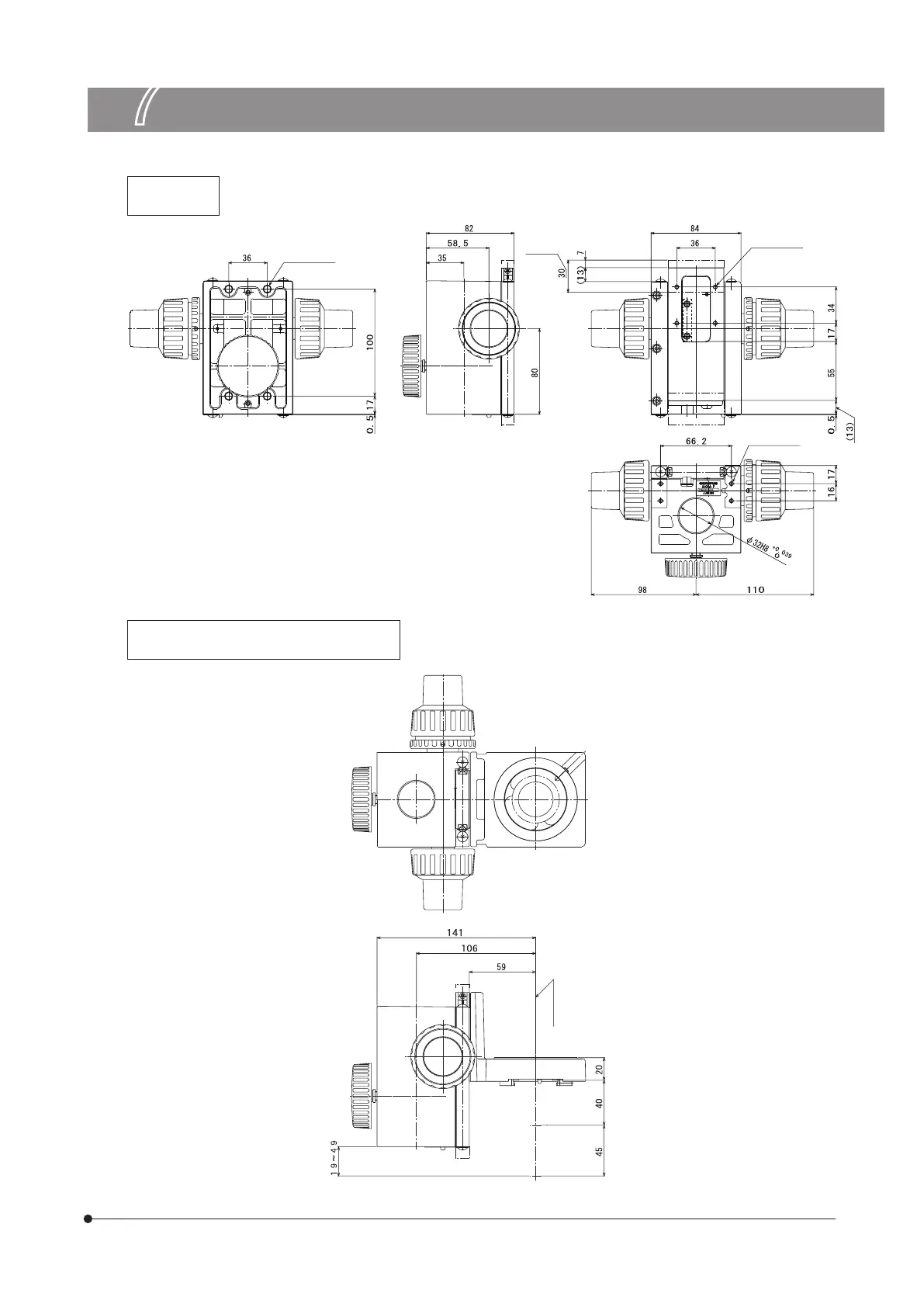

7 Main dimension diagram
BXFM frame
BXFM-F
Provided with Illuminator mounting holder S
BXFM-F + BXFM-ILHS
4-M8, depth 8
4-M4, depth 9
4-M4, depth 7
Movable
range
