Disassembly and Reassembly ProcedureCLV-180
4-13
ISSUE1

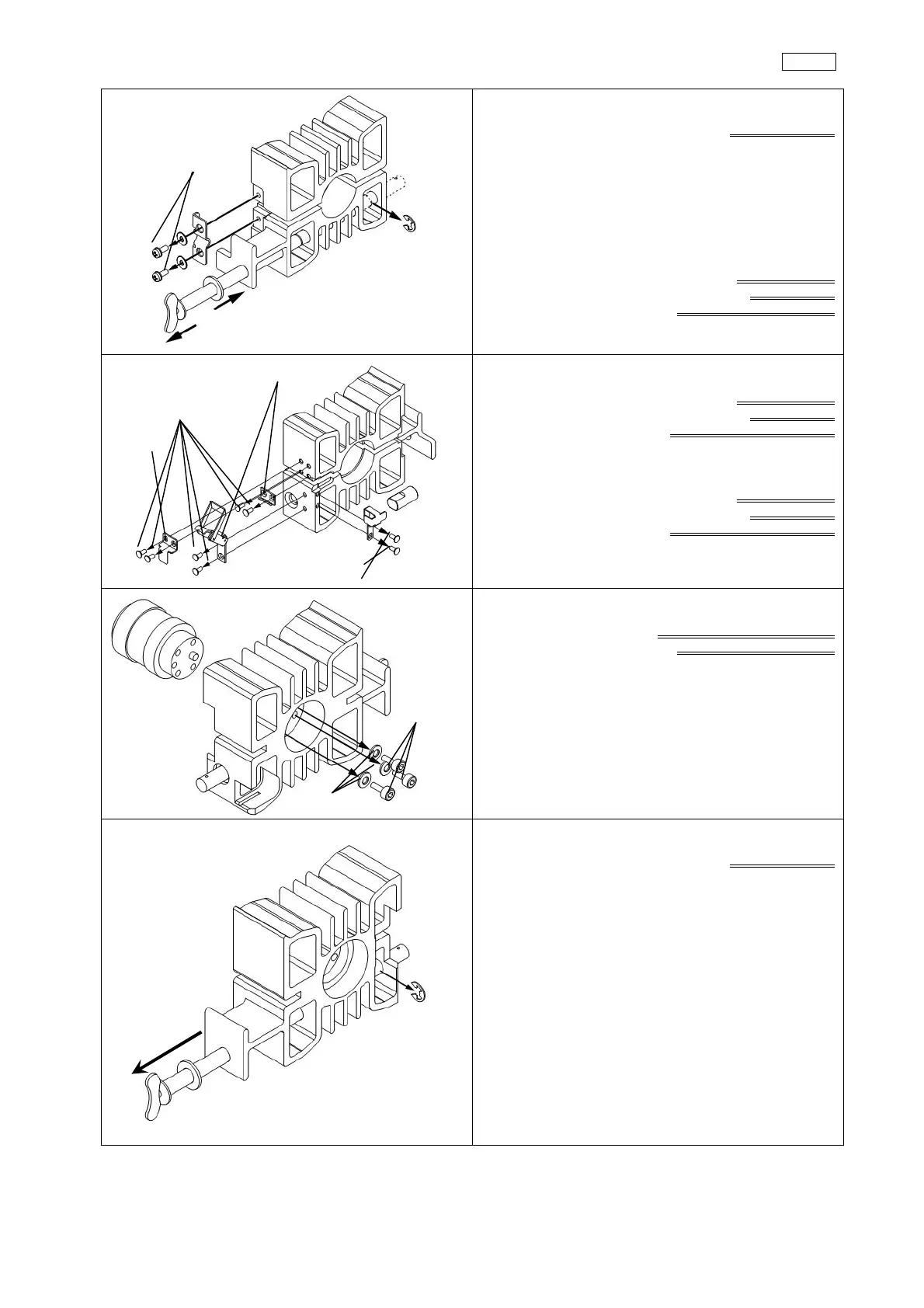

(2) Take off ER5SA from SINK SHAFT in HEAT SINK F
ECO U
Long-nose Pliers
(3) Pull SINK SHAFT, then take off KNOB WASHER
from SINK SHAFT
(4) Take off 2 SCREWS (CCUK3x6SZ), HINGE PLATE
and SPRING COLLAR
Phillips bit (№2)
Torque driver
Tightening torque 0.6 Nm
(5) Take off 2 SCREWS (CSK2.5x6SA), MAGNET
HOLDER ECO and MAGNET
Phillips bit (№1)
Torque driver
Tightening torque 0.33 Nm
(6) Take off 6 SCREWS (CSK2.5x6SA) , SNAP LOCK
and MINI CATCH
Phillips bit (№1)
Torque driver
Tightening torque 0.33 Nm
(7) Take off 3 HEX BOLT, GT WASHER and XENON
LAMP
Hex wrench（size 2.5 mm）
Tightening torque 0.8 Nm
(8) SINK SHAFT Take off ER5SA from SINK SHAFT
on HEAT SINK F ECO U
Long-nose Pliers
(9) Pull SINK SHAFT, and take off KNOB
WASHER from SINK SHAFT
ER5SA
KNOB WASHER
CCUK3x6SZ
(5)CSK2.5x6SA
A
(6)CSK2.5x6SA
A
XENON LAMP
HEX BOLT
GT
WASHER
ER5SA
KNOB WASHER
MINI CATCH
SNAP
LOCK
