Olympus CLV-180 - Page 63

Disassembly and Reassembly ProcedureCLV-180
4-26
ISSUE1

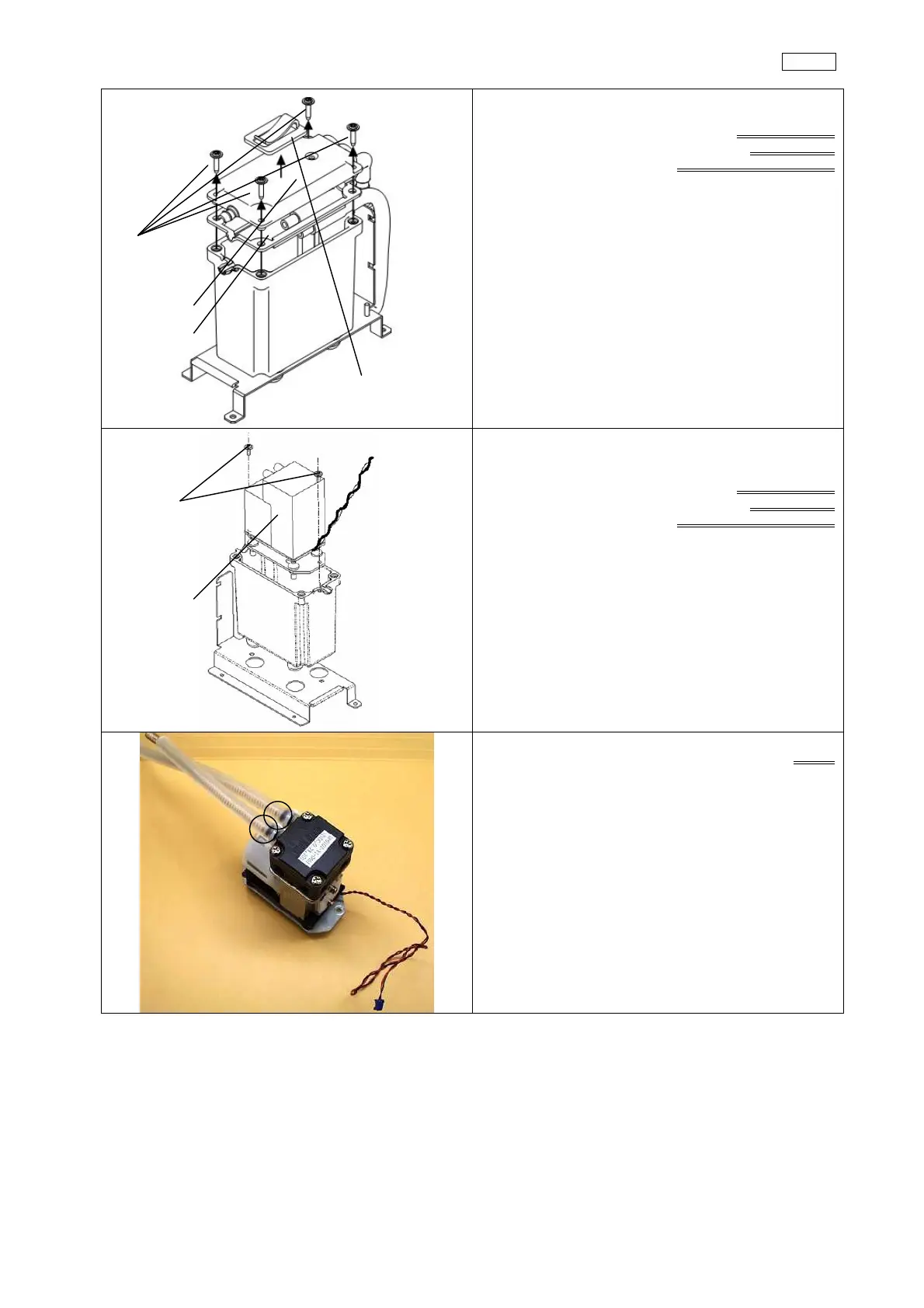

(2) Take off 4 SCREWS(T2CCUK3x14SZ), FLAT CLIP ,
UPPER P CASE and P PACKING
Phillips bit (№2)
Torque driver
Tightening torque 0.3 Nm
(3)Take off 2 SCREWS (CCUK3x8SZ) and take out
PUMP
Phillips bit (№2)
Torque driver
Tightening torque 0.6 Nm
(4)Cut BINDER(left figure) and take off TUBE
Nipper
T2CCUK3x14SZ
FLAT CLIP
CCUK3x8SZ
PUMP
UPPER P
CASE
P PACKING
