Disassembly and Reassembly ProcedureCLV-180
4-27
ISSUE1

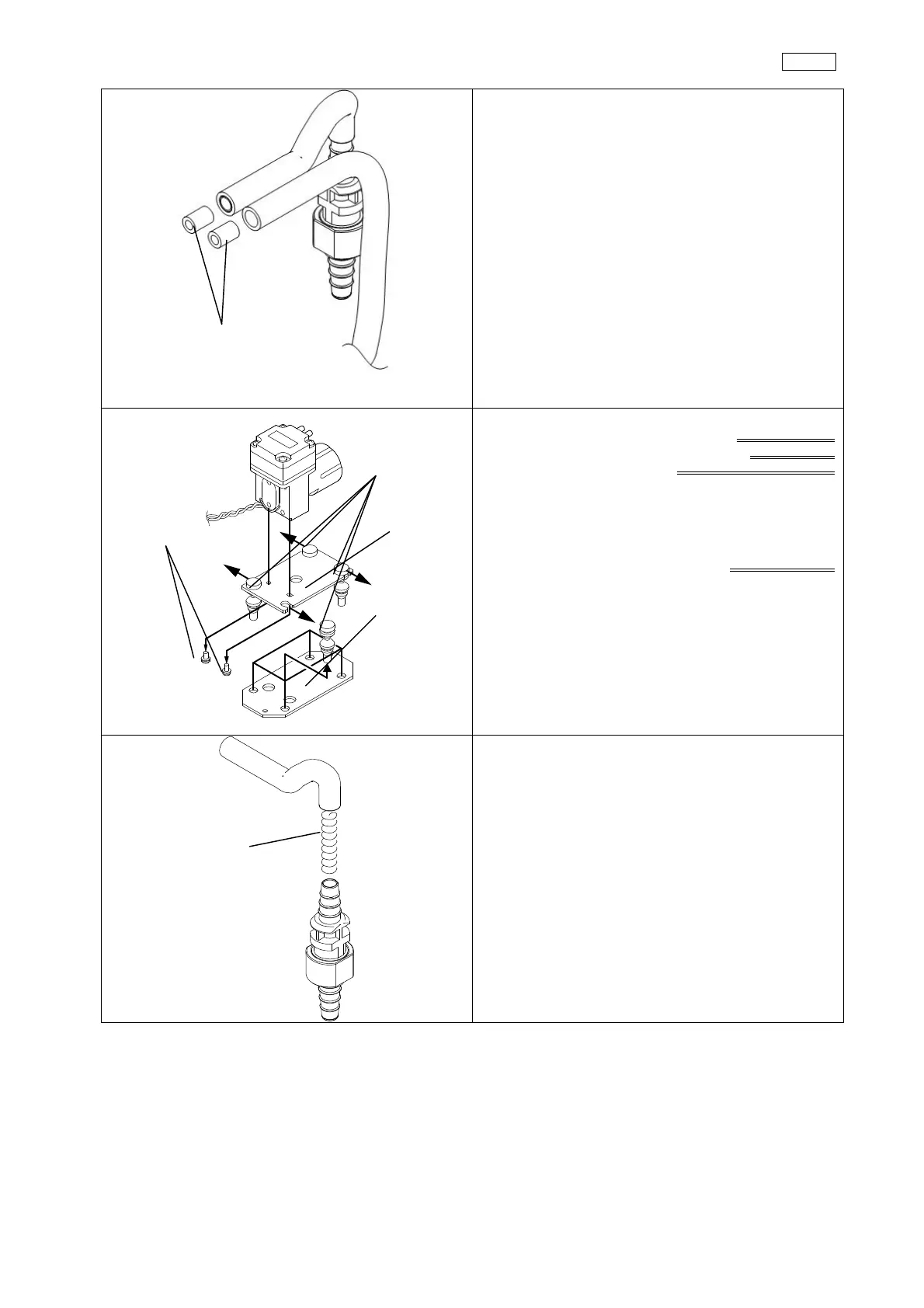

(5)Take off TUBE SSS from TUBE, which was taken
off from PUMP
(6) Take off 2 SCREWS (CUKSK3x6SZ) and PUMP
Phillips bit (№2)
Torque driver
Tightening torque 0.6 Nm
(7) Take off RUBBER FOOT from PUMP BASE
(8) Pull RUBBER FOOT from PUMP PLATE ECO
Long-nose Pliers
(9) Take off TUBE S from VALVE U and pull SUPPORT
COIL S
CCUK3x6SZ
PUMP
BASE
RUBBER
FOOT
SUPPORT COIL S
TUBE SSS
PUMP
PLATE
To Next Page
