Olympus CX21 Instructions

10
CX21
Fig. 14
6

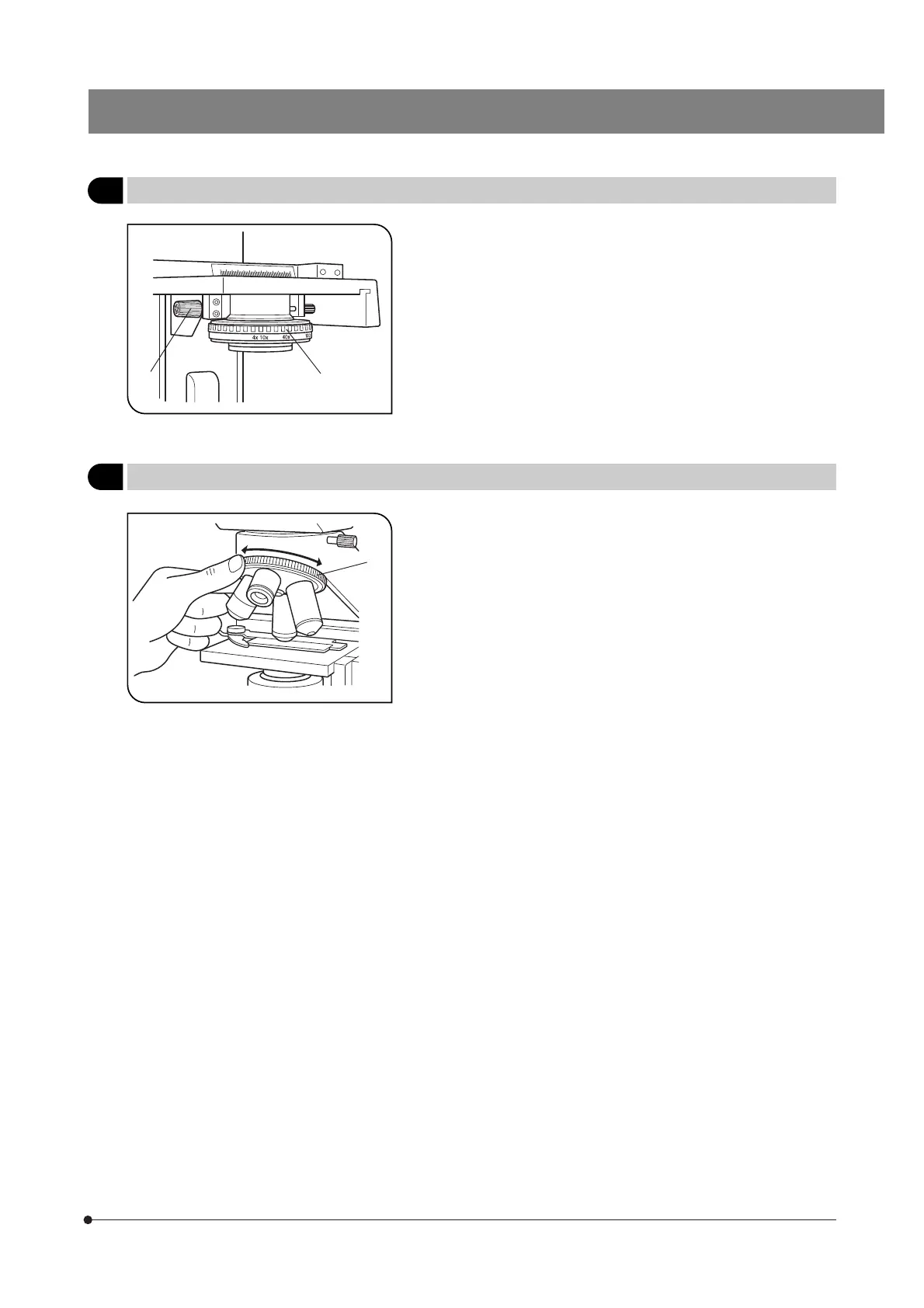

Adjusting the Condenser Position and Aperture Iris Diaphragm
(Fig. 14)
}The condenser is usually used in the highest position. If the entire observed
field of view is not bright enough, brightness may be improved by lowering
the condenser slightly.
1. Rotate the condenser height adjustment knob 1 to move the condenser
to the highest position.
2. The aperture iris diaphragm ring 2 has an objective magnification
scale (4X, 10X, 40X, 100X). Rotate the ring so that the magnification
of the objective in use faces frontward.
7
Switching the Objectives
(Fig. 15)
Fig. 15
Hold and rotate the revolving nosepiece 1 so that the objective to be
used come exactly above the specimen.
²
@
@

Olympus CX21 Specifications

General

Type	Biological Microscope
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	Widefield 10x
Objective Lenses	4x, 10x, 40x, 100x
Nosepiece	Quadruple
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Illumination	LED
Condenser	Abbe condenser NA 1.25
Optical System	UIS2 optical system
Eyepiece Tube	Binocular
