Olympus CX21 Instructions

5
“ ”: Power ON
“ ”: Power OFF
NOMENCLATURE
}The following items have been attached at the factory to prevent deterioration during transport. Remove these items and
retain them for future use. Then loosen the observation tube clamping knob and correct the orientation of the eyepieces
as shown in the illustration below.
1 Revolving nosepiece/observation tube transport band
2 Stage and specimen holder protection sheet
3 Protective pad below the stage
}Attach the lamp bulb and power cord as described in chapter 9, “ASSEMBLY” on pages 17-18.

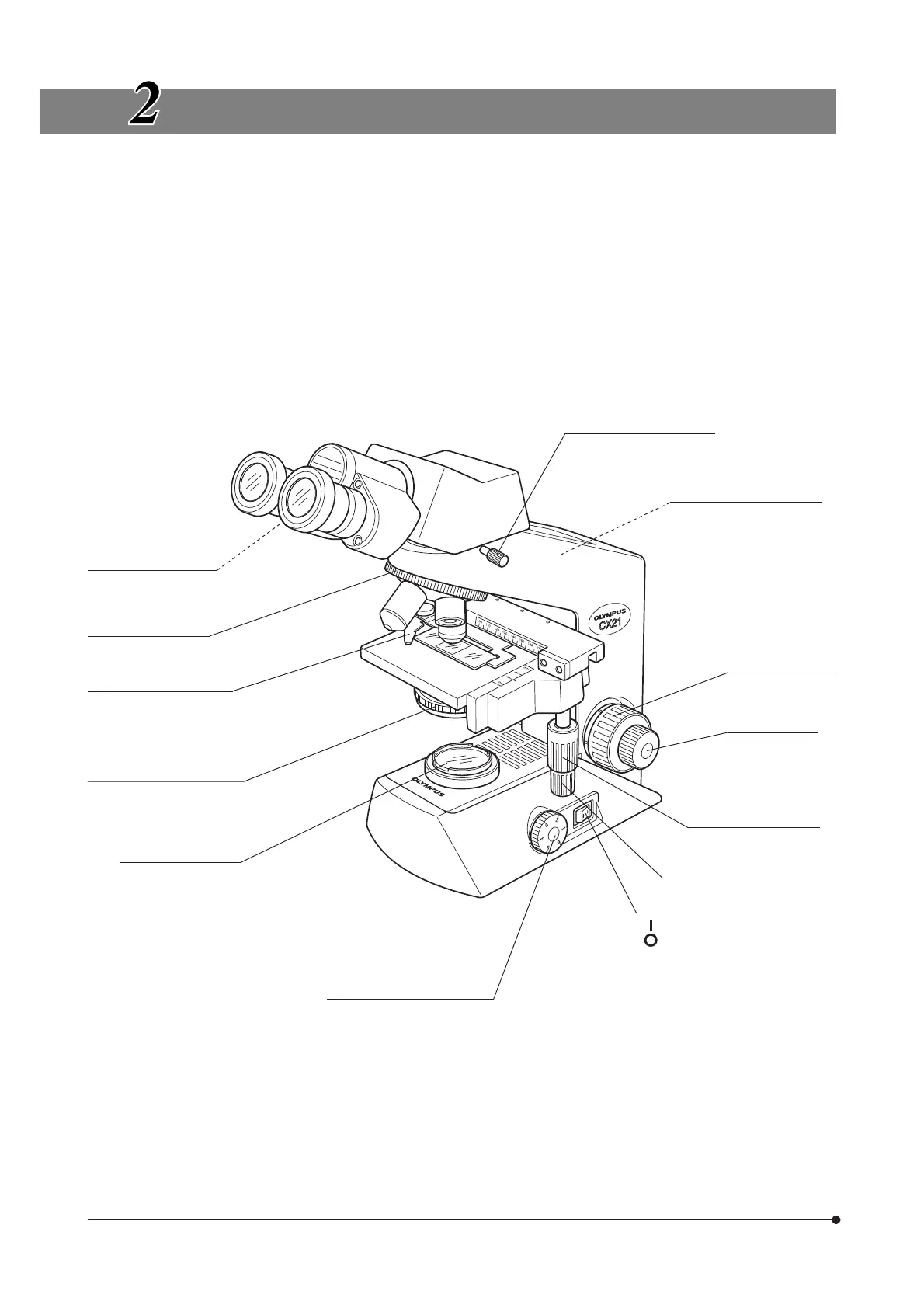

Diopter adjustment ring
(Page 9)
}For detailed description of each control, refer to the page indicated inside parentheses.
Specimen holder (Page 7)
Aperture iris diaphragm ring
(Page 10)
Filter holder (Page 20)
Light intensity adjustment
knob (Page 7)
Revolving nosepiece
(Page 10)
Observation tube clamping
knob
Pre-focusing knob (Page 9)
Specimen holder Y-axis
feed knob (Page 7)
Specimen holder X-axis
feed knob (Page 7)
Fine adjustment
knob (Page 8)
Coarse adjustment
knob (Page 8)
Main switch (Page 7)

Olympus CX21 Specifications

General

Type	Biological Microscope
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	Widefield 10x
Objective Lenses	4x, 10x, 40x, 100x
Nosepiece	Quadruple
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Illumination	LED
Condenser	Abbe condenser NA 1.25
Optical System	UIS2 optical system
Eyepiece Tube	Binocular
