OPTIONAL ACCESSORIES

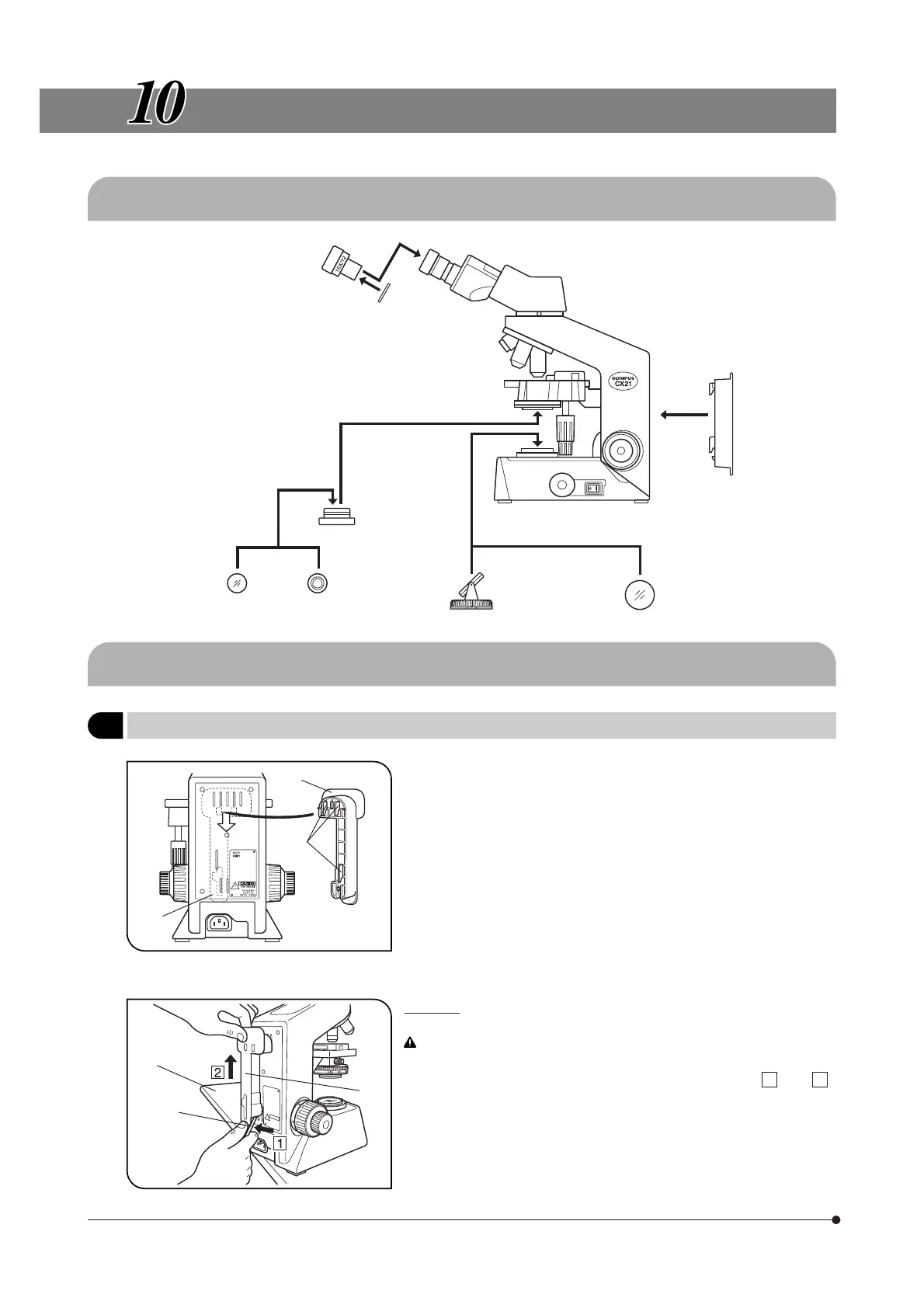

10-1 System Diagram of Optional Accessories
Fig. 21
Fig. 22
10-2 Installation and Operation of Optional Accessories
1
Cord Hanger CH3-CH
(Figs. 21 & 22)
}When the CH3-CH cord hanger is attached on the back of the micro-
scope frame, the power cord can be wound around it for storing.
Align the hooks 2 of the cord hanger 1 with the cord hanger mounting
position 3, insert the cord hanger, push it firmly against the microscope
frame and slide it down to lock it.
# Do not carry the microscope by holding it by the cord hanger. If it is
detached during transport, the microscope may drop and human
injury may result.
Removal
First remove the power cord from the cord hanger to prevent
electric shock.Then,move the microscope to an edge of the table
|. While pushing the cord hanger @ in the directions 1 and 2 ,
insert the tip of a flat-blade screwdriver 5 or similar tool into the
lower part of the hanger and slide it up to remove.
Eyepieces
WHC15X
WHC15X-H
Filter Holder
CH2-FH
Reflection Mirror
CH20-MM
45 mm filter
32.5 mm filter Darkfield Ring
CH2-DS
Cord Hanger
CH3-CH
Microscope Frame
CX21
|
@
5
²
@
³
Eyepiece
micrometer

Olympus CX21 Specifications

General

Type	Biological Microscope
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	Widefield 10x
Objective Lenses	4x, 10x, 40x, 100x
Nosepiece	Quadruple
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Illumination	LED
Condenser	Abbe condenser NA 1.25
Optical System	UIS2 optical system
Eyepiece Tube	Binocular
