Olympus CX21 Service Manual

CX21 MAINTENANCE MANUAL MAINTENANCE PROCEDURE
- 4 -

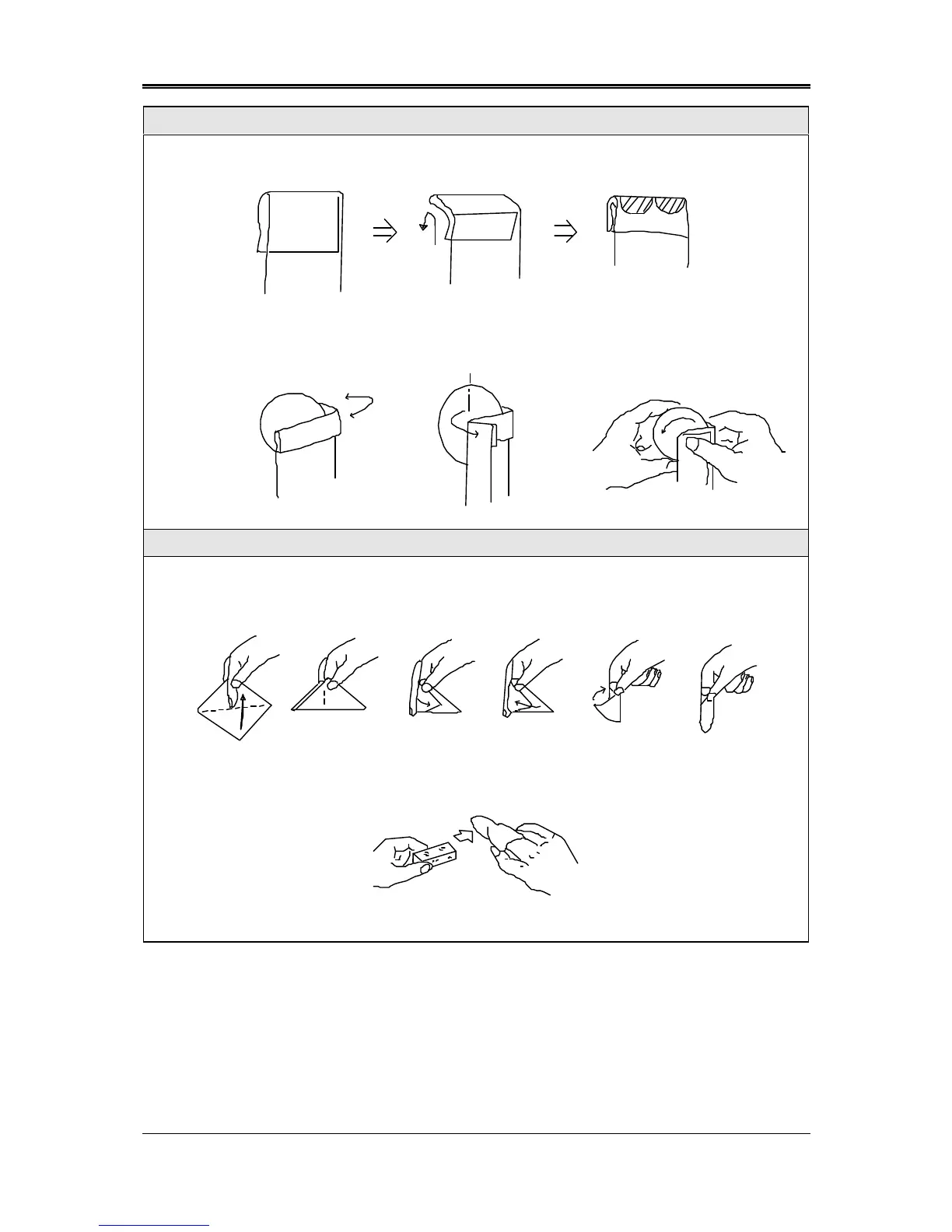

HOW TO CLEAN THE FILTER
Fold the lens tissue into two or three layers and moisten its shaded part with cleaning solution.
Hold the filter at its edge and fold the lens paper from the lens center to outside as illustrated.
Move the lens tissue gradually to outside while turning the filter by left hand.
HOW TO CLEAN THE PRISM
Hold a sheet of lens tissue between your middle and index fingers, then fold and wrap it around your
index finger. Hold the tissue down with your thumb and moisten it with sufficient cleaning solution.
1)
2) 3)
4)
5)
6)
Wipe the prism surfaces from front to backward at a stroke, applying even pressure.

Olympus CX21 Specifications

General

Type	Biological Microscope
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	Widefield 10x
Objective Lenses	4x, 10x, 40x, 100x
Nosepiece	Quadruple
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Illumination	LED
Condenser	Abbe condenser NA 1.25
Optical System	UIS2 optical system
Eyepiece Tube	Binocular
