Olympus CX21 Service Manual

CX21 MAINTENANCE MANUAL MAINTENANCE PROCEDURE
- 6 -

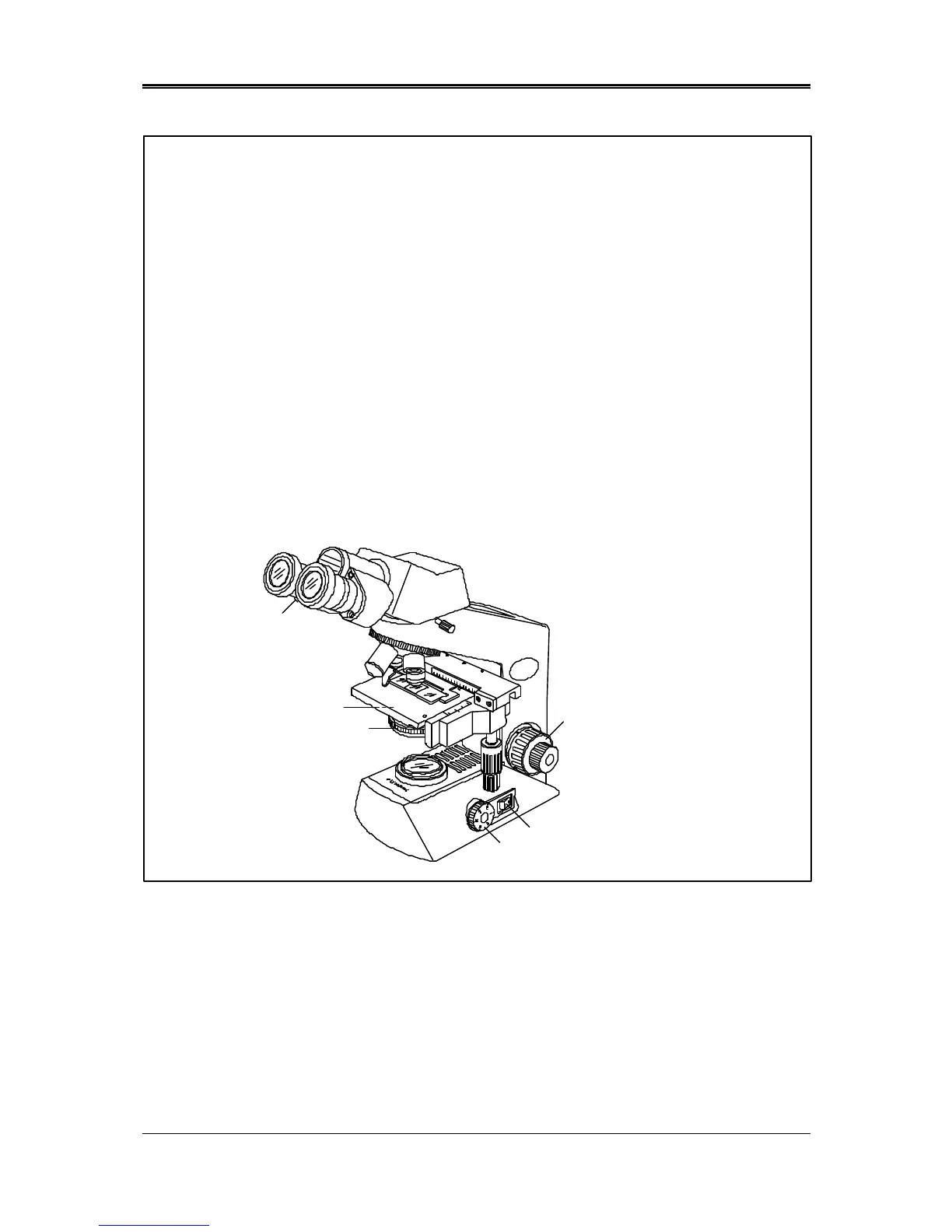

3. Preparing for Inspection
1) Set the main switch “A” to “I” (ON).
2) Adjust the brightness by turning the adjustment knob “B” .
3) Place a specimen on the stage.
4) Engage the 10X objective in the light path.
5) Rotate the condenser height adjustment knob ”C” to move the condenser to the highest position.
* The condenser is usually used in the highest position. If the entire observed field of view is
not bright enough, brightness may be improved by lowering the condenser slightly.
6) Looking through the eyepiece in the right sleeve without the diopter adjustment ring, turn the
coarse and fine focus adjustment knobs “D” to bring the specimen into focus.
7) Looking through the eyepiece in the left sleeve with the diopter adjustment ring, turn only the
diopter adjustment ring “E” to focus on the specimen.
(At this time, adjust the interpupillary distance so that the binocular visions on the left and right
fields of view coincide completely.)
8) Adjust the aperture iris diaphragm;
Since the aperture irirs diaphragm has an objective magnification scale (4X, 10X, 40X,100X),
rotate the diaphragm ring “F” so that the magnification scale corresponding to the objective
in use faces frontward.
OLYMPUS
CX21
100
110
120
130
140
150
17
160
0
10
20
30
(A)
(B)
(C)
(D)
(E)
(F)
4x10x

Olympus CX21 Specifications

General

Type	Biological Microscope
Power Supply	AC 100-240V, 50/60Hz
Eyepiece	Widefield 10x
Objective Lenses	4x, 10x, 40x, 100x
Nosepiece	Quadruple
Stage	Mechanical stage
Focus	Coaxial coarse and fine focusing
Illumination	LED
Condenser	Abbe condenser NA 1.25
Optical System	UIS2 optical system
Eyepiece Tube	Binocular
