Preparing the camera and ﬂ ow of operations

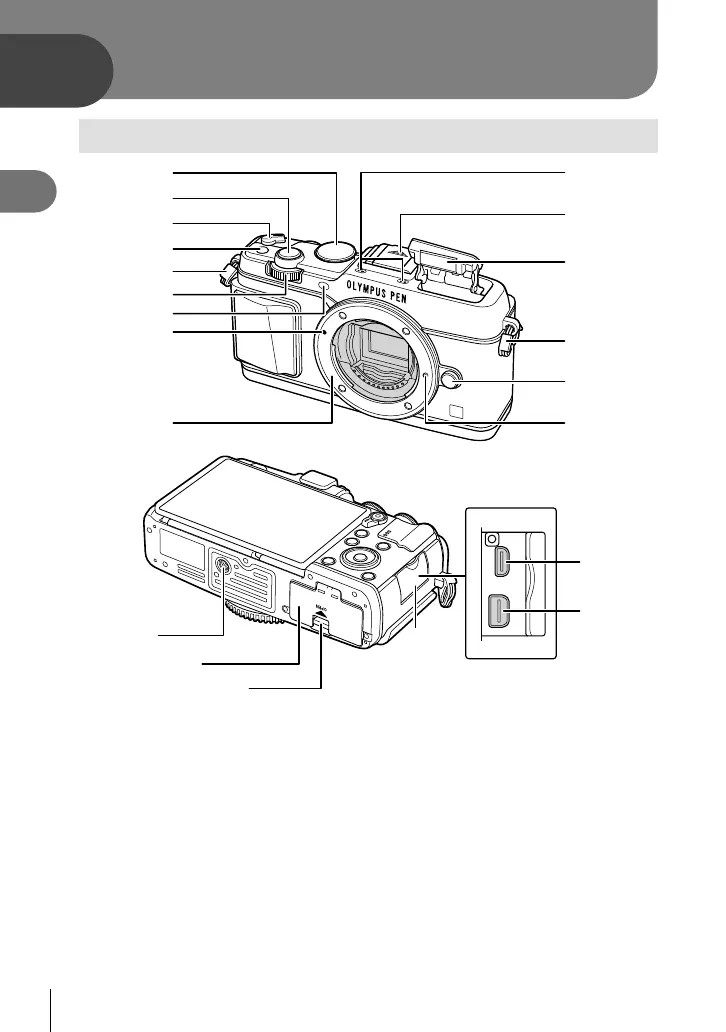

Names of parts

1 Mode dial ........................................P. 15

2 Shutter button .................................P. 16

3 ON/OFF lever ................................P. 13

4 Fn button ........................................P. 19

5 Strap eyelet.......................................P. 7

6 Sub-dial* (k) ..................P. 18, 25 – 28

7 Self-timer lamp/AF illuminator

...............................................P. 43/P. 77

8 Lens attachment mark ....................P. 12

9 Mount (Remove the body cap before

attaching the lens.)

0 Stereo microphone .............P. 50, 60, 73

a Hot shoe cover

b Internal ﬂ ash ...................................P. 38

c Lens release button ........................P. 12

d Lens lock pin

e Tripod socket

f Battery/card compartment cover.....P. 10

g Battery/card compartment lock .......P. 10

h Connector cover

i HDMI micro connector (type D) ......P. 87

j Multi-connector .................P. 87, 97, 100

* In this manual, the j and k icons represent operations performed using the main dial

(P. 9) and sub-dial.
