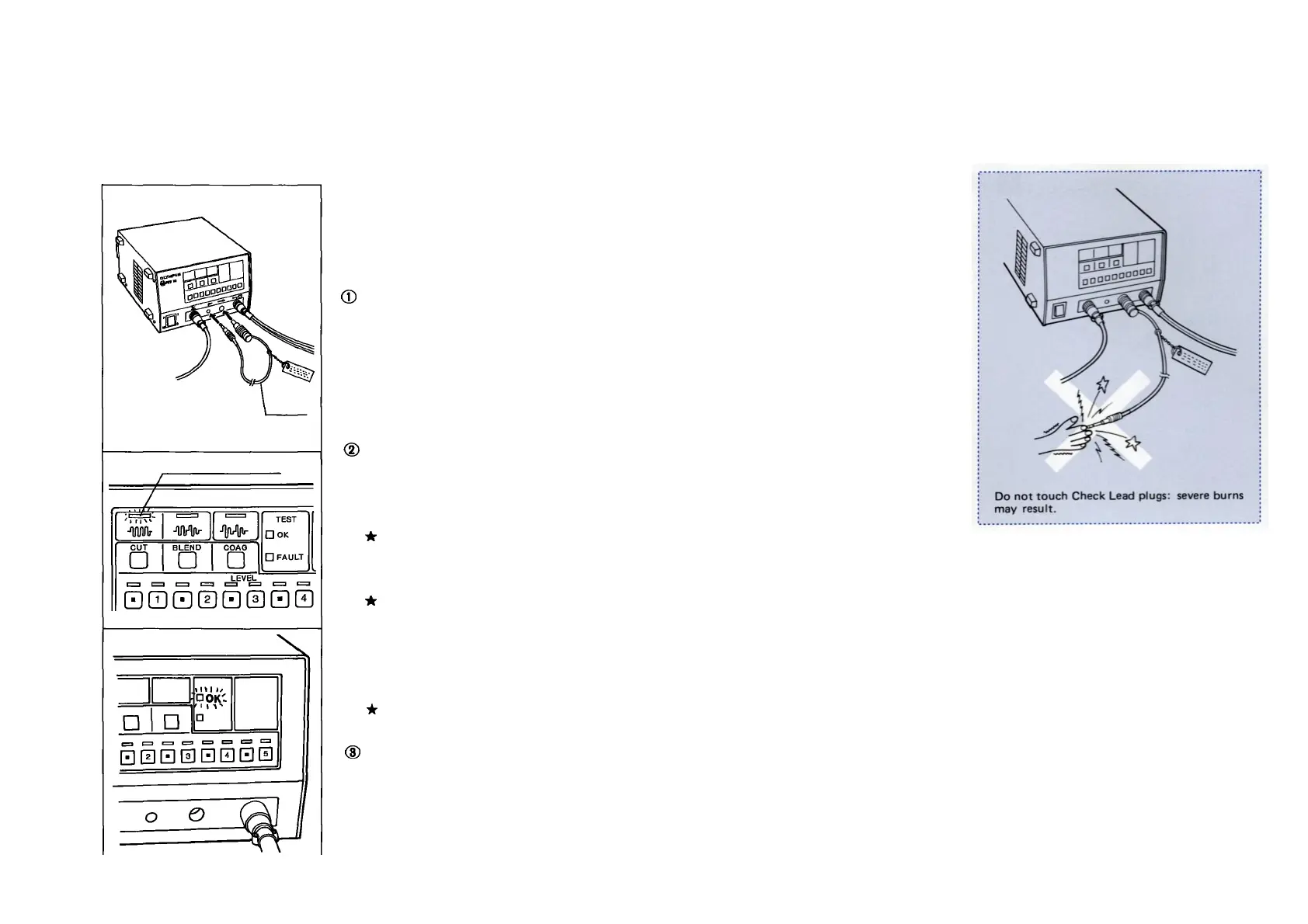

Output Check 1 (PSD-10 alone)
CUT indicator lights.
The Check Lead plugs are at an extremely high potential when the footswitch is
depressed. DO NOT TOUCH! Severe burns may result.
Connect the Check Lead to the TEST connector and to the ACTIVE connector
on the PSD-10, by pushing each plug fully into the connector.
Check
Lead
Depress the footswitch for approximately 1 second (until the output tone
ceases to sound). Make sure the CUT output indicator (yellow) lights and
the TEST “OK” light (green) comes on after the output tone has stopped.
The TEST “FAULT” light (red) may come on if the pedal is released before
the output tone stops or if the allowable voltage fluctuation range is ex-
ceeded.
The “FAULT” light comes on:
if the footswitch is depressed when the WARNING light is glowing red.
Re-connect the S-P cord correctly and repeat above procedure.
(If the red WARNING light fails to go out, consult an Olympus service
center.)
Do not touch the Patient-plate; burns may occur.
Disconnect the Check Lead from the PSD-10.
“OK” indicator should light.
