Chapter 2 Nomenclature and Functions
21
ELECTROSURGICAL UNIT PSD-30
2.3 Rear panel
1. Fuse box
This box prevents short-circuits within the unit if equipment malfunctions.
2. AC power inlet
This inlet accepts the power cord.
3. Foot switch connector
This connector connects the foot switch (MAJ-811) to the electrosurgical
unit.
4. Potential equalization terminal
To be equipotential, connect this terminal to a potential equalization busbar
of the electrical installation.

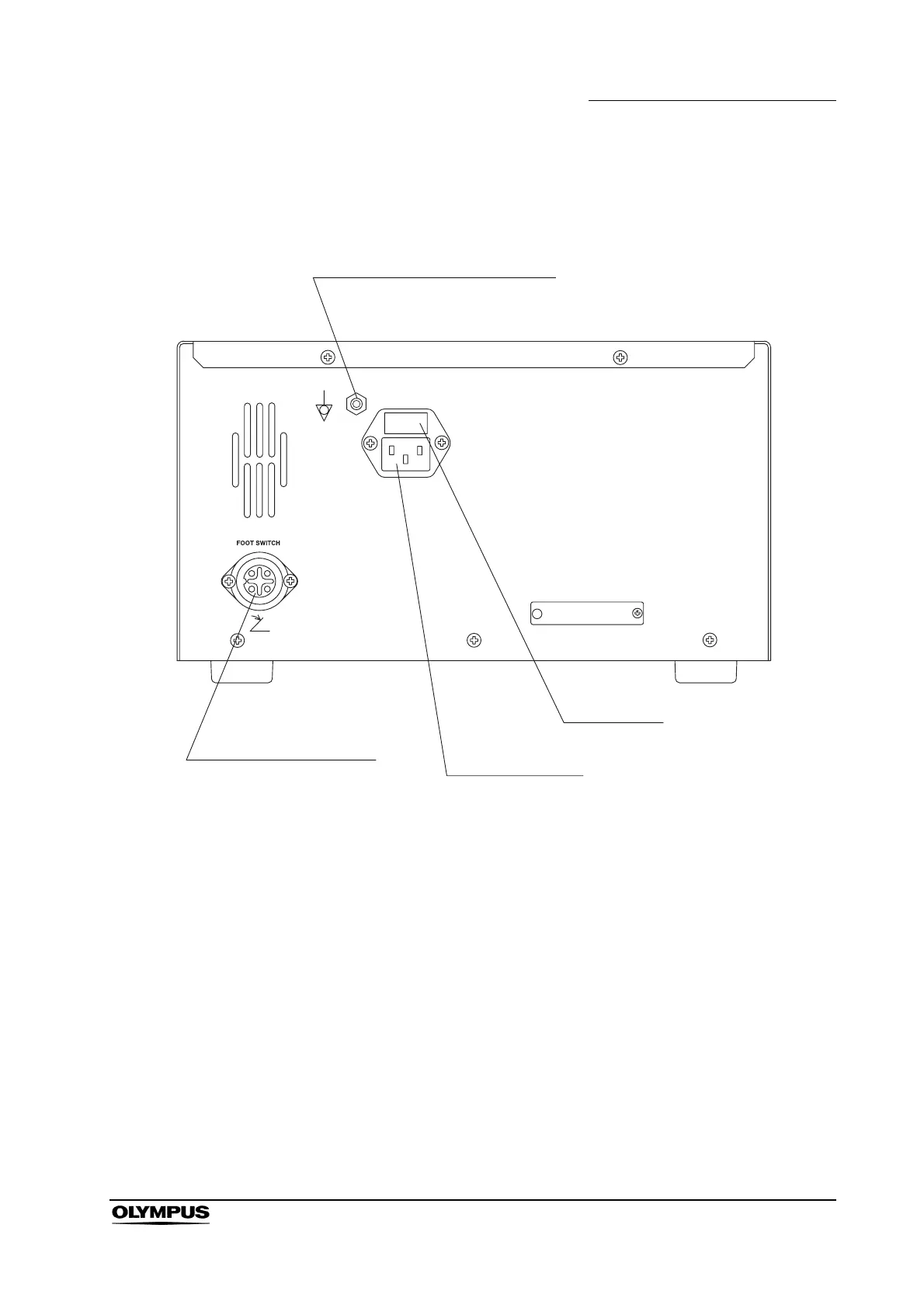

2. AC power inlet
4. Potential equalization terminal
3. Foot switch connector
1. Fuse box
