Olympus PSD-30 - Selecting Cut Mode

Chapter 4 Inspection
41
ELECTROSURGICAL UNIT PSD-30

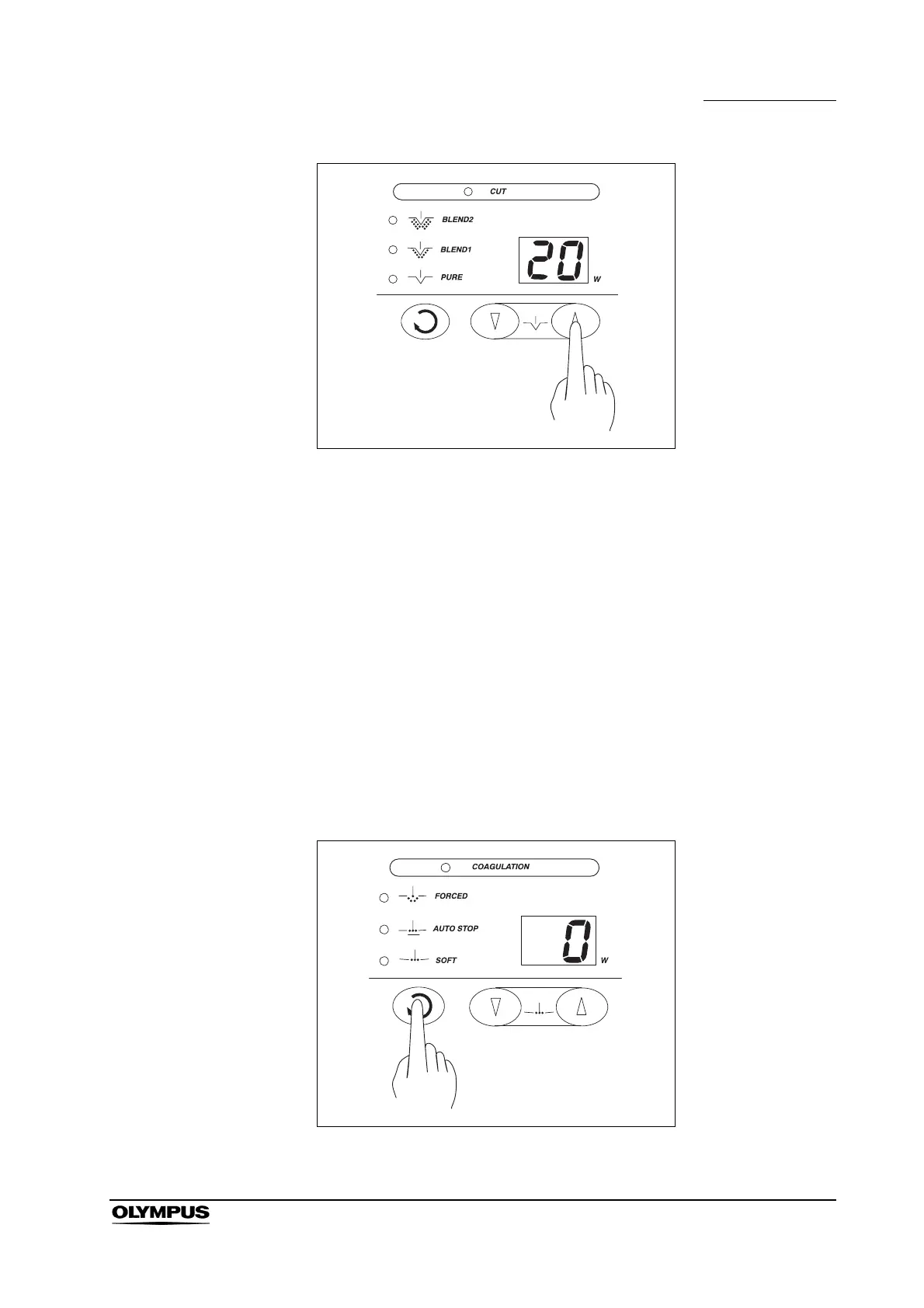

Figure 4.9
3. Confirm that the output level can be changed in sequences by pressing the
button. The output level starts at 0 W. Pressing the button once, will change
the output level to 2 W. Pressing it again changes the output level to 5 W.
After 5 W setting, the output level can be changed in 5 W sequences and
increased to 50 W. To decrease the output, press the button with the arrow
pointing down.
4.5 Inspection of the coagulation mode and output
1. Confirm that each time the coagulation mode selector is pressed, the
coagulation mode indicators are changed, and the corresponding indicators
the “SOFT”, “AUTO STOP” or “FORCED” coagulation mode light (see
Figure 4.10).
Figure 4.10
