Chapter 3 Installation and Connection
31
ELECTROSURGICAL UNIT PSD-30

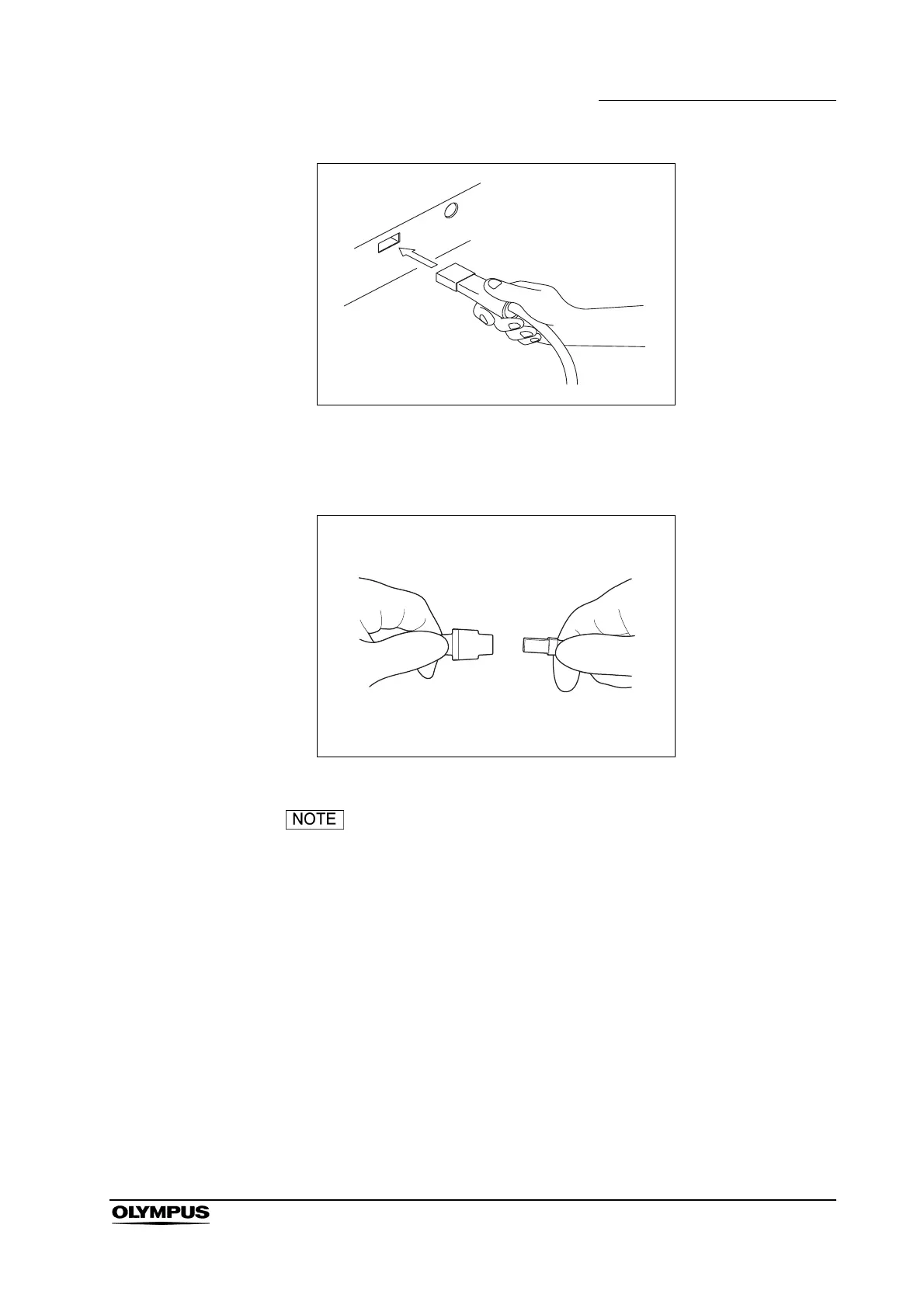

Figure 3.7
7. Insert the P cord connector of the P adapter into the plug on the unit side of
the P cord.
Figure 3.8
When using the PSD-30 with the endoscope that is capable
of high frequency cauterization and do not have the S-cord
connector mount, use the non-split type patient plate.
If the split type patient plate is used, the patient/S-cord
warning indicator may light and the alarm may sound
according to the grounding conditions.
